58435 - Toro Edger, 3.5hp (SN: 005000001 - 005999999) (1985) RECOIL STARTER ASSEMBLY Parts Diagram

Edger, 3.5hp

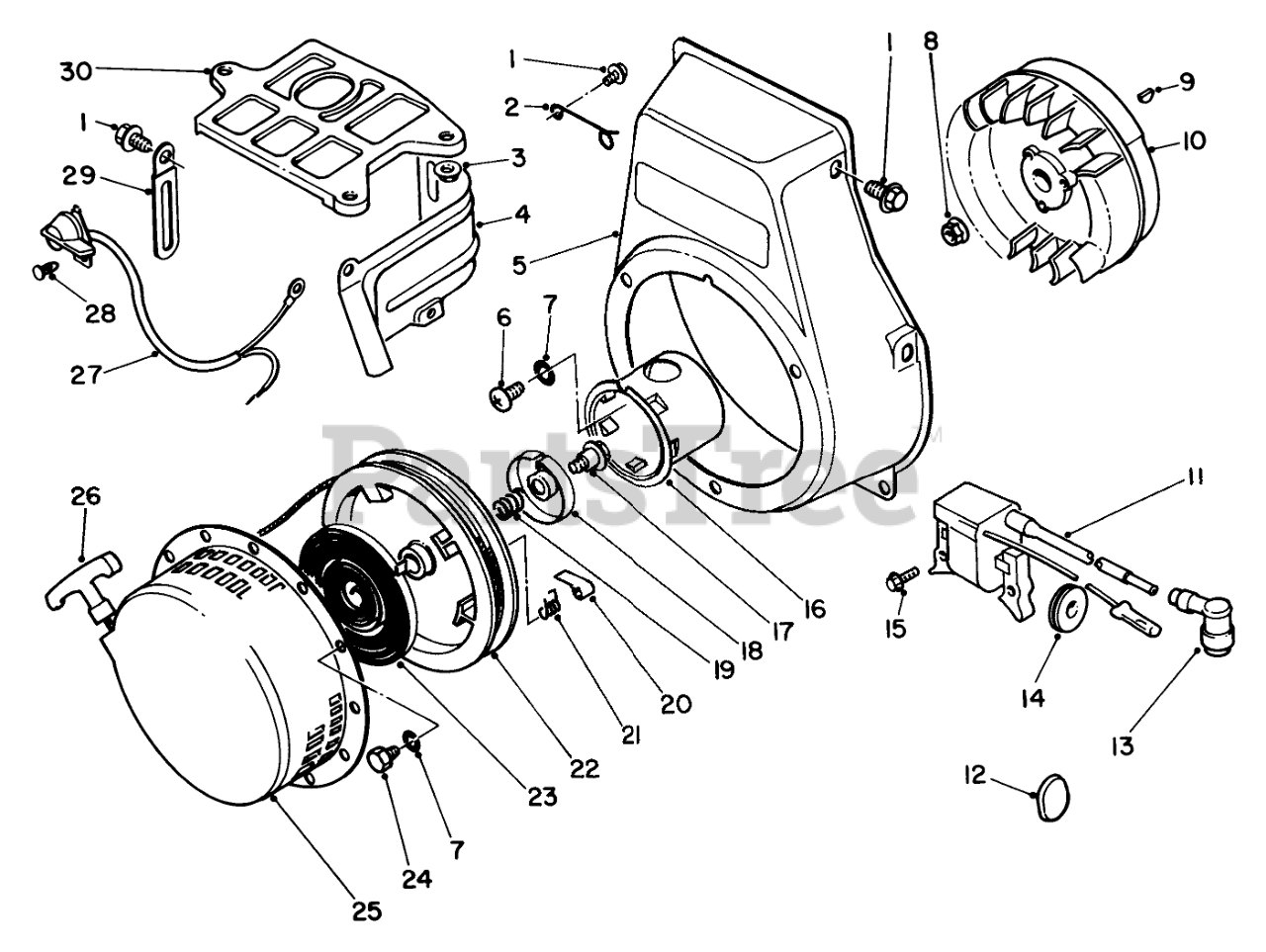

RECOIL STARTER ASSEMBLY Parts Diagram

  • Title

1

Toro 53-1340

BOLT

$

$

Not available

2

Toro 50-1030

CLAMP

$

$

Not available

3

Toro 50-7180

NUT

$6.99

$

In Stock, only 3 left!

0

4

Toro 53-1380

Cowling-Side

$

$

Not available

5

Toro 53-1330

Cover-Cooling Fan

$

$

Not available

6

Toro 50-0380

Screw

$

$

Not available

7

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

8

Toro 50-0540

Nut

$

$

Not available

9

Toro 50-0640

KEY

$

$

Not available

10

Toro 53-1350

Flywheel

$

$

Not available

11

Toro 53-1360

Coil-Primary

$

$

Not available

12

Toro 53-0870

Plug

$

$

Not available

13

Toro 50-3450

SPARK PLUG CAP

$

$

Not available

14

Toro 53-1370

Grommet

$

$

Not available

15

Toro 50-6230

Bolt

$

$

Not available

16

Toro 53-1320

Pulley-Starter

$

$

Not available

17

Toro 81-1260

BOLT

$

$

Not available

18

Toro 53-1310

Retainer

$

$

Not available

19

Toro 81-1240

SPRING

$

$

Not available

20

Toro 81-1230

DOG

$

$

Not available

21

Toro 81-1220

SPRING

$

$

Not available

22

Toro 53-1300

Reel
(Superseded to 81-1210)

$54.99

$

In Stock, only 2 left!

0

23

Toro 53-0720

SPRING

$

$

Not available

24

Toro 50-0650

BOLT

$

$

Not available

25

Toro 53-1290

Recoil Starter Assembly(Incl. Ref. #7, 17-24 & 26)

$

$

Not available

26

Grip-Hand

$

$

Not available

27

Toro 53-1390

SWITCH

$

$

Not available

28

Toro 53-0890

Pin

$

$

Not available

29

Toro 53-1400

CLAMP

$

$

Not available

30

Toro 50-2810

Cowling-Upper

$

$

Not available

Toro 53-0730

Starter Rope Assembly(Incl. Ref. #26)

Note: Not illustrated

$

$

Not available
