58435 - Toro Edger, 3.5hp (SN: 005000001 - 005999999) (1985) FUEL TANK & CARBURETOR ASSEMBLY Parts Diagram

Edger, 3.5hp

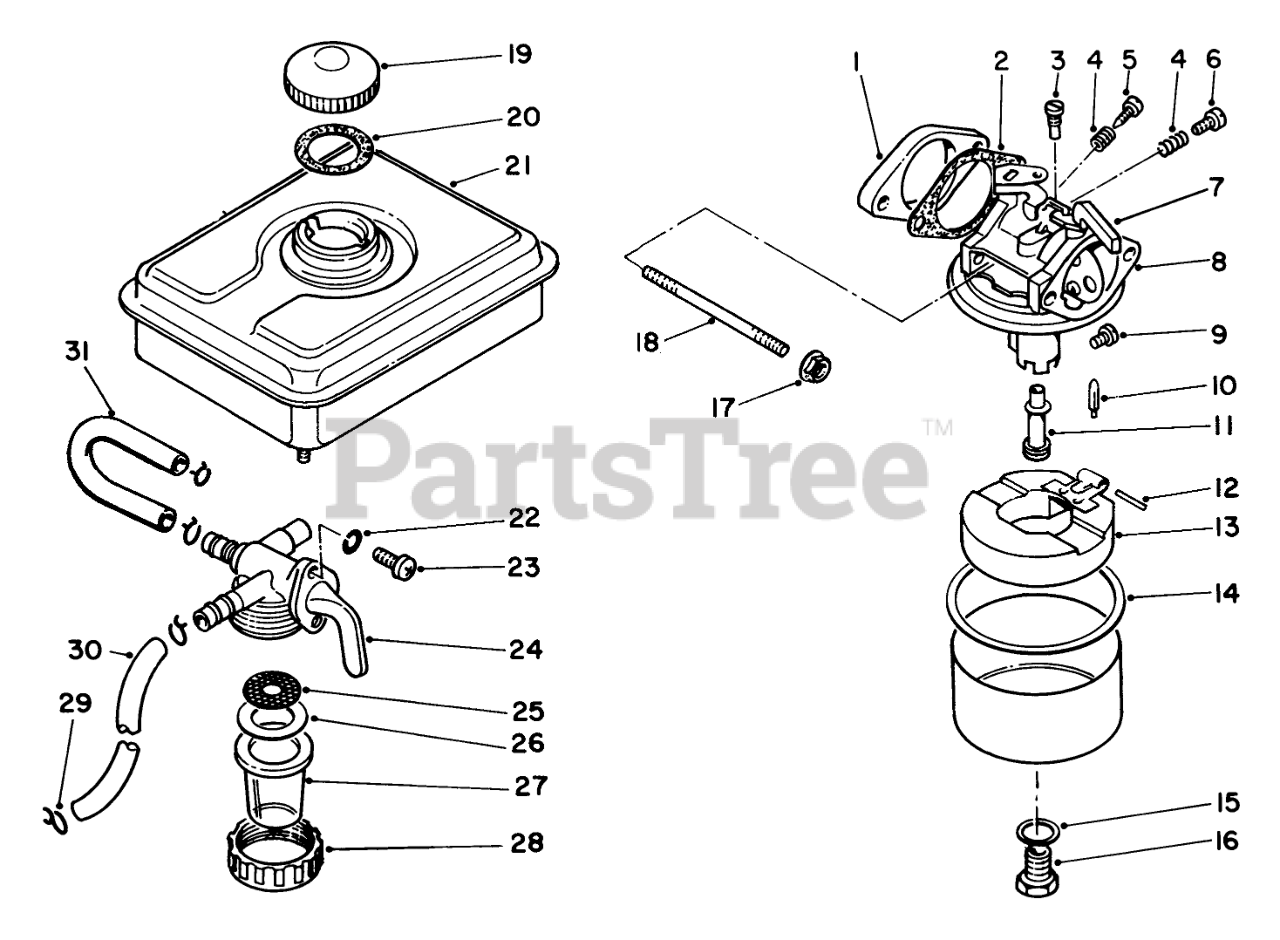

FUEL TANK & CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 53-1250

INSULATOR

$

$

Not available

2

Toro 53-1240

GASKET

$

$

Not available

3

Toro 50-1220

PILOT JET
(Superseded to 94-1684)

$

$

Not available

4

Toro 50-2340

SPRING

$

$

Not available

5

Toro 50-2360

ADJUSTER

$20.99

$

Usually ships in 3-6 days

0

6

Toro 50-0250

SCREW

$

$

Not available

7

Toro 53-1120

CHOKE SHAFT ASM

$

$

Not available

8

Toro 53-1190

Carburetor Assembly (Incl. Ref. #9-16)

$

$

Not available

9

Toro 53-1220

MAIN JET

$

$

Not available

10

Toro 53-1200

NEEDLE VALVE

$

$

Not available

11

Toro 53-1230

NOZZLE

$

$

Not available

12

Toro 81-0980

Pin
(Superseded to 81-2600)

$8.49

$

Usually ships in 3-6 days

0

13

Toro 81-0970

FLOAT

$60.99

$

Usually ships in 3-6 days

0

14

Toro 81-1010

GASKET

$19.99

$

In Stock, only 1 left!

0

15

Toro 81-1020

GASKET

$

$

Not available

16

Toro 81-1000

Bolt
(Superseded to 81-5670)

$14.99

$

Usually ships in 3-6 days

0

17

Toro 50-7180

NUT

$6.99

$

In Stock, Qty 5

0

18

Toro 50-0090

Stud Bolt

$

$

Not available

19

Toro 50-3700

CAP

$

$

Not available

20

Toro 53-1420

GASKET

$

$

Not available

21

Toro 53-1410

Tank-Fuel

$

$

Not available

22

Toro 81-1420

Lockwasher

$

$

Not available

23

Toro 50-0240

Screw

$

$

Not available

24

Toro 53-1430

Petcock Assembly (Incl. Ref. #25-28)

$

$

Not available

25

Toro 53-1440

FILTER

$

$

Not available

26

Toro 50-3770

GASKET

$

$

Not available

27

Toro 50-3780

CUP

$

$

Not available

28

Toro 50-3760

Cap

$

$

Not available

29

Toro 50-0990

Clip

$

$

Not available

30

Toro 50-0930

Hose

$

$

Not available

31

Toro 50-8360

HOSE

$

$

Not available
