58435 - Toro Edger, 3.5hp (SN: 005000001 - 005999999) (1985) FRAME ASSEMBLY Parts Diagram

Edger, 3.5hp

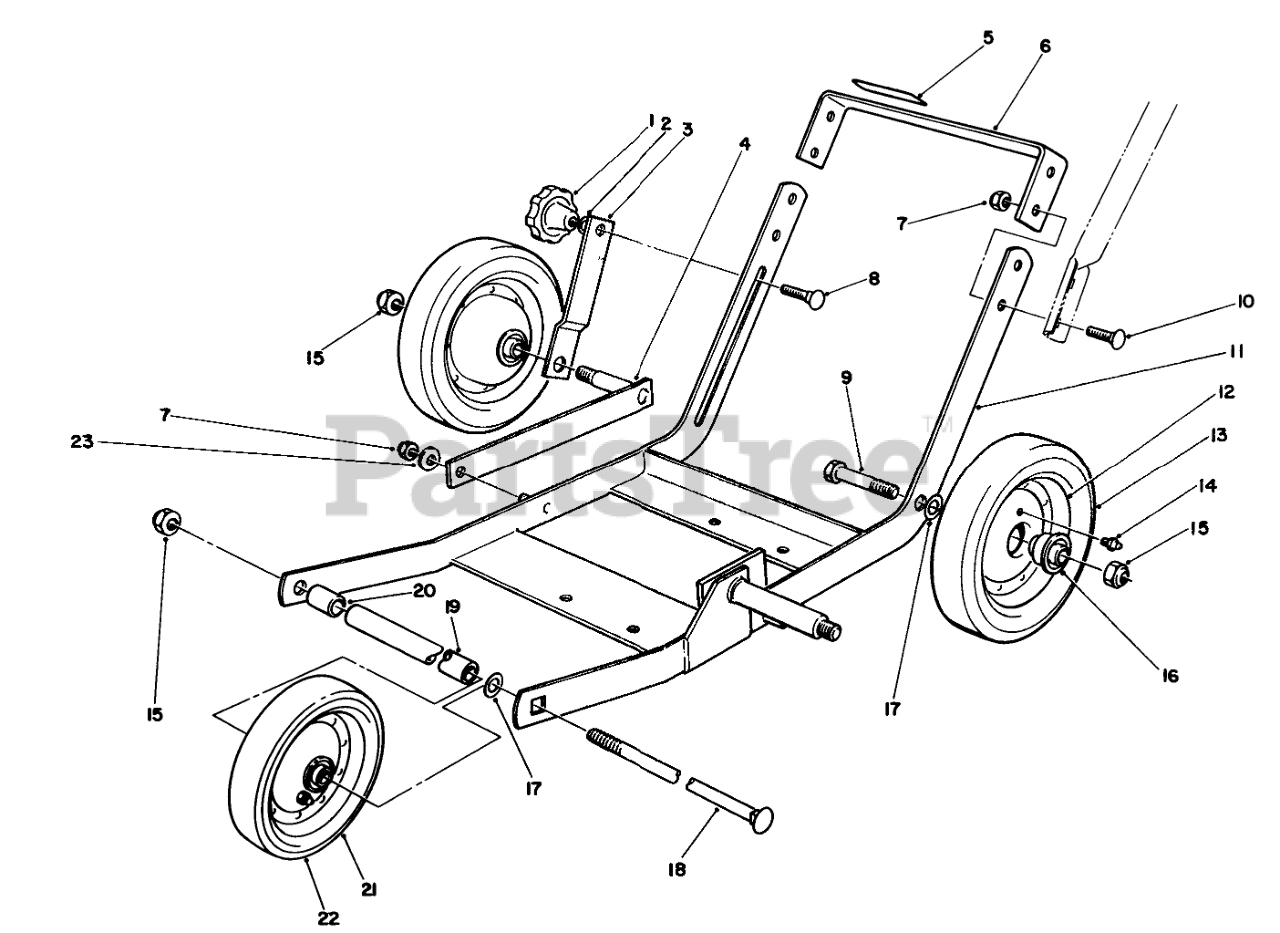

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

2

Toro 3290-458

BELLEVILLE SPRING WASHE

$

$

Not available

3

Toro 52-0050

WHEEL LINK R

$

$

Not available

4

Toro 52-0100

BAR WA RO

$85.99

$

Usually ships in 3-6 days

0

5

Toro 52-0570

Decal-Warning
(Superseded to 68-7390)

$

$

Not available

6

Toro 52-0040

Bar-Escutcheon

$

$

Not available

7

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

8

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 325-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

10

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

11

Toro 52-0130

Frame Assembly

$

$

Not available

12

Toro 36-8851

Wheel & Tire Assembly-8" (Incl. Ref. #13, 14 & 16)

$

$

Not available

13

Toro 36-8990

Tire

$

$

Not available

14

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

15

Toro 3296-25

NUT-LOCK, NI

$1.99

$

In Stock, only 2 left!

0

16

Toro 52-0560

FLANGED BEARING

$

$

Not available

17

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

18

Toro 52-0530

CARRIAGE BOLT

$

$

Not available

19

Toro 52-0540

AXLE SPACER

$

$

Not available

20

Toro 52-1210

SPACER

$

$

Not available

21

Toro 36-8841

Wheel & Tire Assembly-7"(Incl. Ref. #14, 16 & 22)

$

$

Not available

22

Toro 36-8980

TIRE 7"

$

$

Not available

23

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
