58435 - Toro Edger, 3.5hp (SN: 004000001 - 004999999) (1984) HANDLE ASSEMBLY Parts Diagram

Edger, 3.5hp

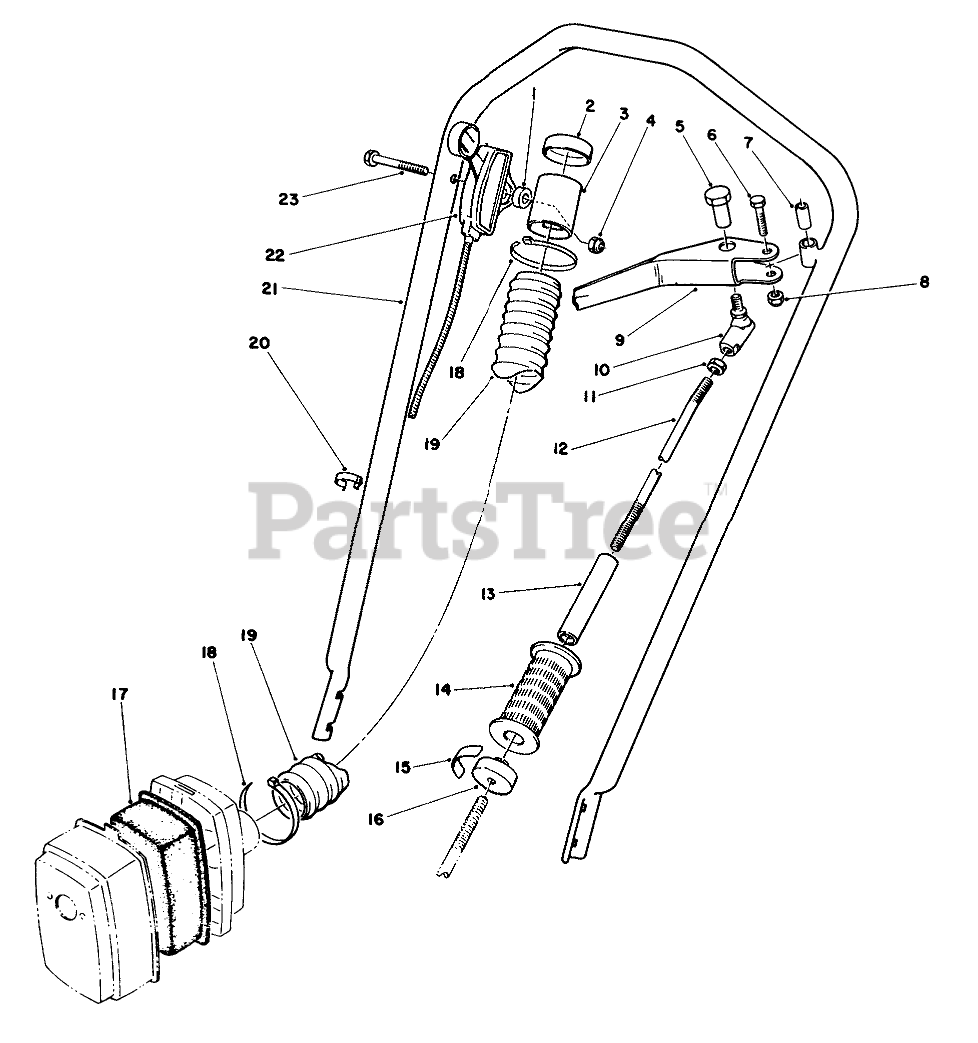

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 2-0780

SPACER

$

$

Not available

2

Toro 2410-53

BLACK CAPLUG

$

$

Not available

3

Toro 39-7790

AIR CLNR HOSE TIP

$

$

Not available

4

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

5

Toro 52-0710

CONTROL LEVER BOLT

$

$

Not available

6

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

7

Toro 52-0690

CONTROL LEVER BSHG

$

$

Not available

8

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

9

Toro 52-0700

CLUTCH CONT LEVER B

$

$

Not available

10

Toro 52-0220

BALL JOINT

$71.99

$

Usually ships in 3-6 days

0

11

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

12

Toro 52-0680

UPPER ROD LINKAGE

$

$

Not available

13

Toro 52-0660

ADJ. TURNBUCKLE O

$

$

Not available

14

Toro 52-0670

HANDLE GRIP

$

$

Not available

15

Toro 52-0740

DECAL

$

$

Not available

16

Toro 52-0650

LOCK KNOB O

$

$

Not available

17

Toro 52-0200

AIR CLEANER FILTER

$

$

Not available

18

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

19

Toro 39-9761

AIR CLEANER HOSE

$

$

Not available

20

Toro 218-465

BOWDEN CLIP

$

$

Not available

21

Toro 52-0010

HANDLE TUBE ASM BO

$

$

Not available

22

Toro 52-0060

THROTTLE

$

$

Not available

23

Toro 321-33

SCREW-HH

$8.99

$

In Stock, only 1 left!

0
