58432 - Toro 2-Cycle Edger (SN: 009000001 - 009999999) (1989) ENGINE TECUMSEH MODEL NO. AH600-1654P Parts Diagram

2-Cycle Edger

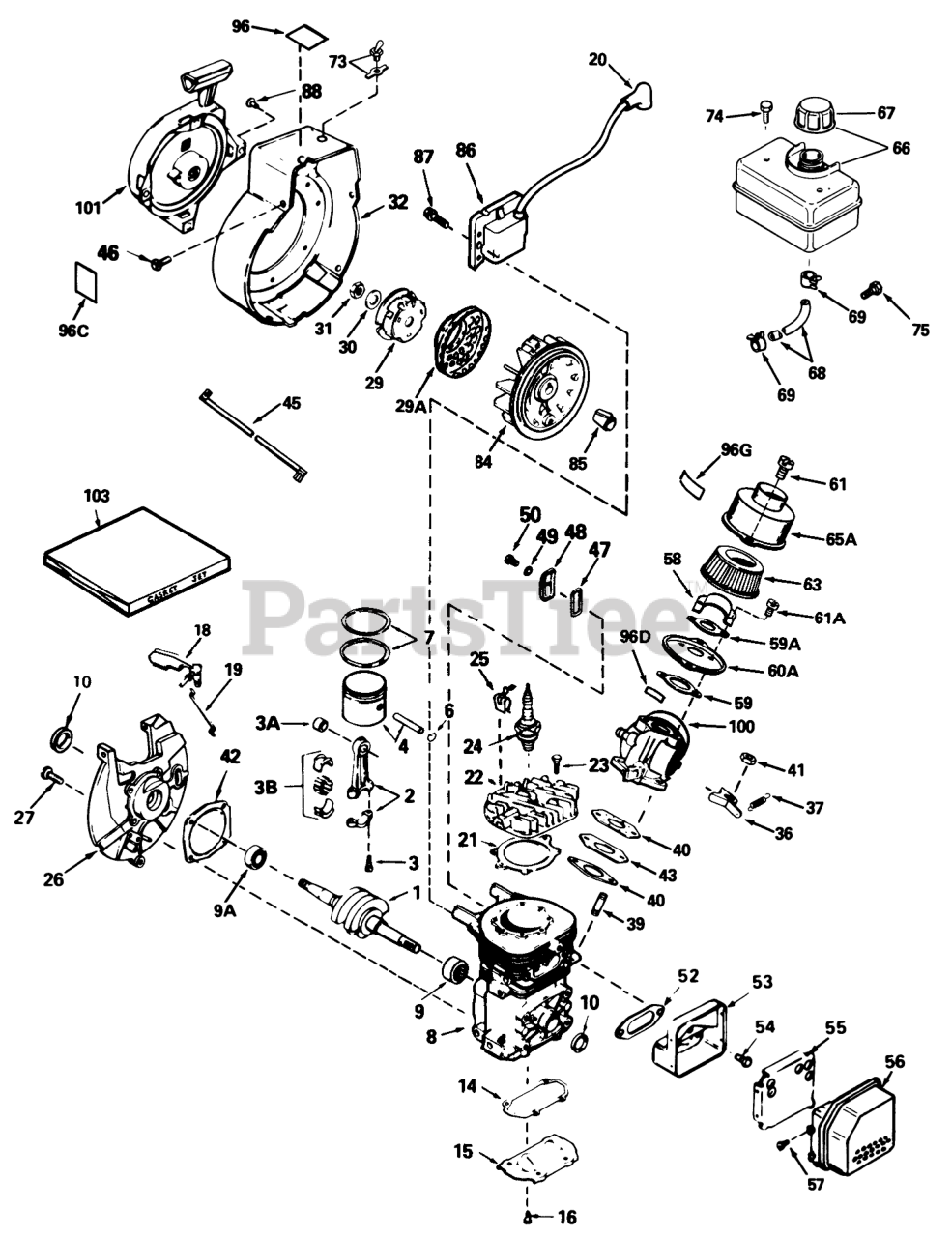

ENGINE TECUMSEH MODEL NO. AH600-1654P Parts Diagram

  • Title

1

Tecumseh 290609

Crankshaft

$

$

Not available

2

Tecumseh 310235B

Connecting Rod Assy. (Incl. Ref. #3, 3A & 3B)
(Superseded to 310235C)

$106.99

$

Usually ships in 3-12 days

0

3

Tecumseh 650633

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

3A

Tecumseh 530104A

Bearing-Cartridge

$15.99

$

Usually ships in 3-12 days

0

3B

Tecumseh 530150

Needle Bearing and Liner Set (37 Needles)
(Superseded to 530150A)

$36.99

$

Usually ships in 3-12 days

0

4

Tecumseh 310283A

Piston and Pin ASM

$33.99

$

In Stock, only 1 left!

0

6

Tecumseh 310167

Ring-Retaning

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 310190

Ring Set
(Superseded to 310289A)

$14.99

$

Usually ships in 3-12 days

0

8

Cylinder Block Assy. (Order short block if replacement is required)

$

$

Not available

9

Tecumseh 530105

Bearing-Cartridge

$11.99

$

Usually ships in 3-12 days

0

9A

Tecumseh 530110

Bearing-Ball

$30.99

$

Usually ships in 3-12 days

0

10

Tecumseh 510319

Seal-Oil

$7.49

$

In Stock, Qty 8

0

14

Tecumseh 510323

Cover
(Superseded to 510323A)

$6.99

$

In Stock, only 2 left!

0

15

Tecumseh 570644

Plate-Cover

$7.49

$

In Stock, only 1 left!

0

16

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

18

Tecumseh 490291A

Vane-Air

$3.99

$

In Stock, Qty 5

0

19

Tecumseh 490294

Link-Governor

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 4 left!

0

21

Tecumseh 510274A

Gasket-Head, Cylinder

$1.99

$

In Stock, Qty 6

0

22

Tecumseh 250240A

Head-Cylinder
(Superseded to 250240B)

$35.99

$

Usually ships in 3-12 days

0

23

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

24

Tecumseh 611049

Spark Plug-Resistor (R C J 8Y)

$4.99

$

In Stock, Qty 20+

0

25

Tecumseh 611034

Clip
(Superseded to 29443)

$1.99

$

In Stock, Qty 5

0

26

Tecumseh 350396

Blower Housing Base Assy. (Incl. Ref. #10)

$

$

Not available

27

Tecumseh 650911

Screw (T-30, 1/4-20 x 5/8)

$1.99

$

Usually ships in 3-12 days

0

29

Tecumseh 590551

Cup-Starter
(Superseded to 590551A)

$10.99

$

Usually ships in 3-12 days

0

29A

Tecumseh 590417

Screen, Air

$7.49

$

In Stock, only 1 left!

0

30

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

31

Tecumseh 650390

Nut-Flywheel

$1.99

$

In Stock, only 3 left!

0

32

Tecumseh 350434

Housing-Blower
(Superseded to 350425)

$

$

Not available

36

Tecumseh 570645

Lever-Adjusting, Rpm

$

$

Not available

37

Tecumseh 490316

Spring-Governor

$5.49

$

Usually ships in 3-12 days

0

39

Tecumseh 650916

Stud-Carburetor
(Superseded to 650959)

$1.99

$

In Stock, Qty 8

0

40

Tecumseh 510326A

Gasket-Carburetor

$1.49

$

In Stock, Qty 5

0

41

Tecumseh 650457

Locknut
(Superseded to 29752)

$1.99

$

In Stock, Qty 5

0

42

Tecumseh 510292A

Gasket-Cover, Cylinder

$3.99

$

Usually ships in 3-12 days

0

43

Tecumseh 570438A

Spacer

$3.99

$

In Stock, only 1 left!

0

45

Tecumseh 611134

Wire-Ground

$

$

Not available

46

Tecumseh 650356

Screw-Hex, Hd.

$1.99

$

Usually ships in 3-12 days

0

47

Tecumseh 510325A

Cover-Compression, Release

$1.99

$

In Stock, Qty 5

0

48

Tecumseh 570647

Comp. Release Cover

$5.49

$

In Stock, only 1 left!

0

49

Tecumseh 650838

Washer

$

$

Not available

50

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

52

Tecumseh 510207A

Gasket-Exhaust

$5.49

$

Usually ships in 3-12 days

0

53

Tecumseh 390292

Base-Muffler
(Superseded to 390292A)

$

$

Currently unavailable

54

Tecumseh 650911

Screw (T-30, 1/4-20 x 5/8)

$1.99

$

Usually ships in 3-12 days

0

55

Tecumseh 390272

Baffle-Muffler

$

$

Currently unavailable

56

Tecumseh 390267

Cover Muffler
(Superseded to 390330)

$

$

Not available

57

Tecumseh 650578

Screw

$1.99

$

In Stock, only 2 left!

0

58

Tecumseh 570434

Baffle-Carburetor

$10.99

$

Usually ships in 3-12 days

0

59

Tecumseh 27272A

Gasket-Air Cleaner

$4.49

$

In Stock, Qty 20+

0

59A

Tecumseh 510206A

Gasket
(Superseded to 35815)

$1.49

$

In Stock, Qty 20+

0

60A

Tecumseh 31691

Bracket

$22.99

$

In Stock, only 1 left!

0

61

Tecumseh 650152

Screw

$2.49

$

In Stock, only 3 left!

0

61A

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

Usually ships in 3-12 days

0

63

Tecumseh 30727

Element

$7.49

$

In Stock, only 3 left!

0

65A

Tecumseh 450251

Cover-Air Cleaner

$

$

Currently unavailable

66

Tecumseh 35584

Tank-Fuel (Incl. Ref. #67)

$45.99

$

In Stock, only 4 left!

0

67

Tecumseh 410259

Cap-Fuel
(Superseded to 410286)

$

$

Not available

68

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 4 left!

0

69

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 10

0

73

Tecumseh 610650B

Switch

$21.99

$

In Stock, only 1 left!

0

74

Tecumseh 650578

Screw

$1.99

$

In Stock, only 2 left!

0

75

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

Usually ships in 3-12 days

0

84

Tecumseh 611112

Flywheel

$

$

Not available

85

Tecumseh 611032

Blade (20 inch)

$8.49

$

Usually ships in 3-12 days

0

86

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

88

Rivet-Pop (obtain locally)

$

$

Not available

96

Tecumseh 34686

Decal-Name
(Superseded to 34686A)

$

$

Not available

96C

Tecumseh 550220

Decal-Fuel Mixture
(Superseded to 550212)

$

$

Not available

96D

Tecumseh 34144

Decal-Primer

$

$

Not available

96G

Tecumseh 34612

Decal-Air Cleaner

$

$

Not available

100

Tecumseh 632515

Carburetor Assembly (Incl. Ref. #40)

$

$

Not available

101

Tecumseh 590537

Starter-Rewind
(Superseded to 590706)

$68.99

$

In Stock, only 2 left!

0
