58432 - Toro 2-Cycle Edger (SN: 008000001 - 008999999) (1988) FRAME ASSEMBLY Parts Diagram

2-Cycle Edger

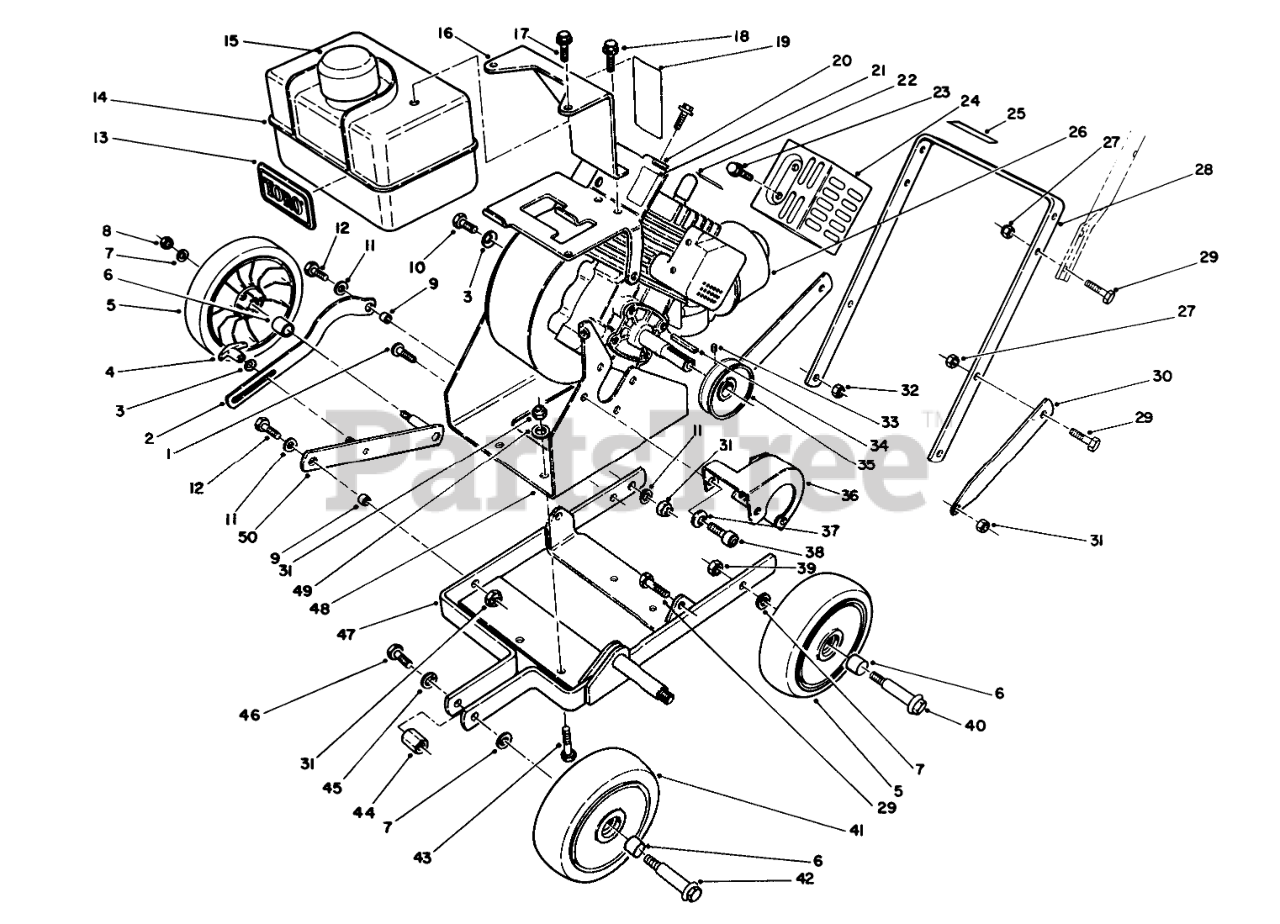

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 3273-35

3/8-24 X 1.00HEX BU. HD

$

$

Not available

2

Toro 57-7240

AXLE LINK

$

$

Not available

3

Toro 3290-458

BELLEVILLE SPRING WASHE

$

$

Not available

4

Toro 62-5810

KNOB

$

$

Not available

5

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #6)
(Superseded to 51-2751)

$34.99

$

In Stock, only 2 left!

0

6

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

7

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

8

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

9

Toro 57-7070

WHEEL MT BUSHING

$

$

Not available

10

Toro 321-1

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

11

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

14

Tank-Fuel (Incl . Ref . #15)

$

$

Not available

15

Cap-Fuel

$

$

Not available

16

Toro 67-9720

TANK STRAP

$

$

Not available

17

Screw-Cap Hex. Hd.

$

$

Not available

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

19

Decal-Fuel Mixture

$

$

Not available

20

Toro 67-9710

TANK BASE

$

$

Not available

21

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

22

Toro 68-7440

DECAL-IGNITION

$

$

Not available

23

Screw-Cap Hex. Hd.

$

$

Not available

24

Toro 67-9690

MUFFLER COVER

$

$

Not available

25

Toro 68-7390

DECAL-WARNING

$

$

Not available

26

Engine-2 Cycle

$

$

Not available

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 57-7270

LOWER HANDLE

$

$

Not available

29

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

30

Toro 57-7260

SUPPORT HANDLE

$

$

Not available

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

33

Toro 3246-15

SCREW-SET

$6.49

$

Usually ships in 3-6 days

0

34

Toro 21-5070

KEY-SQUARE

$

$

Not available

35

Toro 52-0450

2HP PULLEY

$60.99

$

Usually ships in 3-6 days

0

36

Toro 67-9680

GUARD-ENGINE PULLEY

$

$

Not available

37

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

38

Toro 3274-12

SCREW-HSH

$1.49

$

In Stock, Qty 5

0

39

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

40

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

41

Toro 46-1113

Wheel & Tire Assembly (Incl. Ref. #6)

$

$

Not available

42

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

43

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Toro 57-7050

HEX SPACER

$

$

Not available

45

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

46

Toro 3211-2

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

47

Toro 57-7400

Frame-Edger

$

$

Not available

48

Toro 67-9670

ENGINE FRAME

$

$

Not available

49

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

50

Toro 57-7100

WHEEL MOUNT WA

$

$

Not available
