58431 - Toro Edger, 3.5hp (SN: 010000001 - 019999999) (1991) FRAME ASSEMBLY Parts Diagram

Edger, 3.5hp

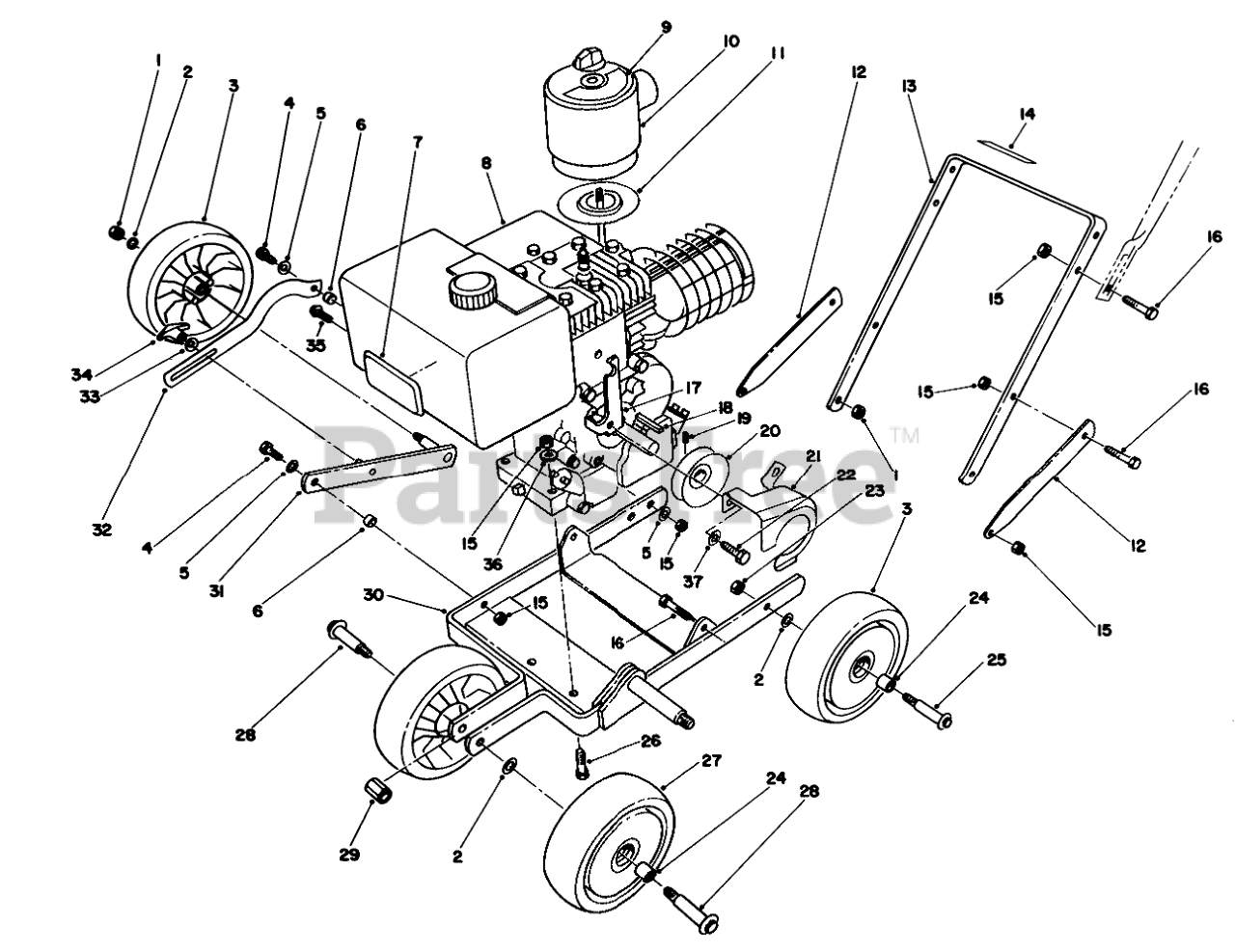

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

2

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

3

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #24)
(Superseded to 51-2751)

$34.99

$

In Stock, only 2 left!

0

4

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 57-7070

WHEEL MT BUSHING

$

$

Not available

7

Toro 76-4710

TORO LOGO PLATE

$

$

Not available

8

Engine-3 hp.

$

$

Not available

9

Toro 82-8130

DECAL - WARNING

$

$

Not available

10

Toro 39-6841

AIR CLEANER COVER WA

$

$

Not available

11

Toro 39-6820

AIR CLEANER BASE

$

$

Not available

12

Toro 57-7260

SUPPORT HANDLE

$

$

Not available

13

Toro 57-7270

LOWER HANDLE

$

$

Not available

14

Toro 68-7390

DECAL-WARNING

$

$

Not available

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

17

Toro 62-5880

SPRING BRACKET

$

$

Not available

18

$

$

Not available

19

Toro 3246-15

SCREW-SET

$6.49

$

Usually ships in 3-6 days

0

20

Toro 52-0550

PULLEY (3.5 HP)

$

$

Not available

21

Toro 52-0580

ENG. PULLEY GUARD

$82.99

$

Usually ships in 3-6 days

0

22

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

23

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

24

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

25

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

26

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 46-1113

Wheel & Tire Assembly (Incl. Ref. #24)

$

$

Not available

28

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

29

Toro 57-7050

HEX SPACER

$

$

Not available

30

Toro 57-7400

Frame-Edger

$

$

Not available

31

Toro 57-7100

WHEEL MOUNT WA

$

$

Not available

32

Toro 57-7240

AXLE LINK

$

$

Not available

33

Toro 3290-458

BELLEVILLE SPRING WASHE

$

$

Not available

34

$

$

Not available

35

Toro 3273-35

3/8-24 X 1.00HEX BU. HD

$

$

Not available

36

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

37

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
