58431 - Toro Edger, 3.5hp (SN: 010000001 - 019999999) (1991) ENGINE BRIGGS & STRATTON MODEL NO. 80332 TYPE NO. 1655-01 Parts Diagram

Edger, 3.5hp

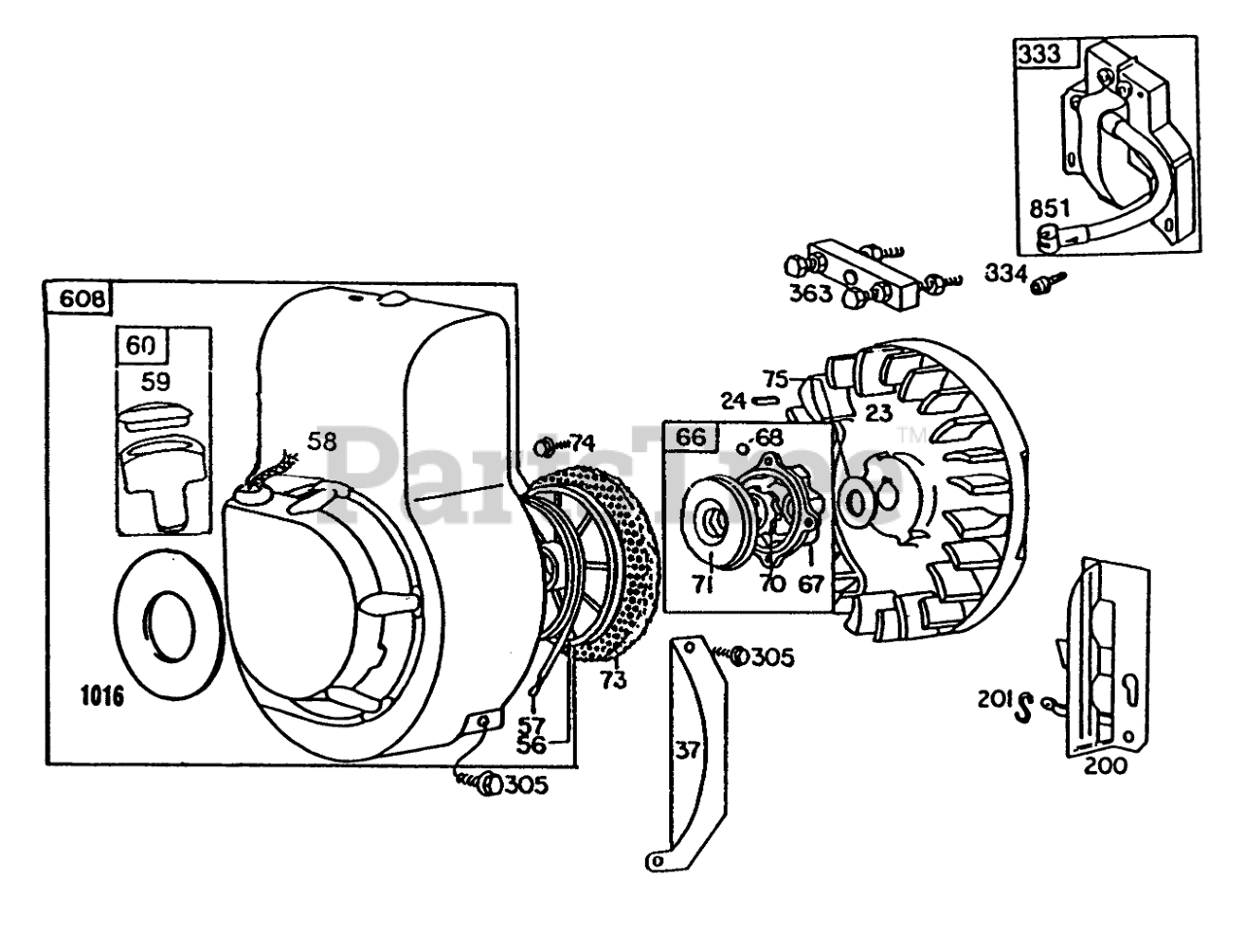

ENGINE BRIGGS & STRATTON MODEL NO. 80332 TYPE NO. 1655-01 Parts Diagram

  • Title
23

Briggs & Stratton 296884

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 220971

Guard-Flywheel

$11.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 280439

Pully-Starter
(Superseded to 280439S)

$12.99

$

In Stock, Qty 12

0

57

Briggs & Stratton 490179

Spring-Rewind

$

$

Not available

58

Briggs & Stratton 66734

Rope-Starter (48.6")

$6.49

$

In Stock, Qty 12

0

59

$5.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 393152

Grip-Starter Rope

$4.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 399671

Clutch-Starter

$34.99

$

In Stock, Qty 20+

0

67

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Clutch
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221661

Screw-Sem
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

75

Briggs & Stratton 223047

Washer-Spring
(Superseded to 691736)

$5.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23230

Bushing-Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 490528

Blade-Governor

$11.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 26235

Link-Governor

$

$

Not available

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

333

Briggs & Stratton 398593

Armature-Magneto
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

608

Briggs & Stratton 398034

Starter Assembly-Rewind

$65.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

$9.49

$

In Stock, Qty 5

0
