58430 - Toro Edger, 3.5hp (SN: 006000001 - 006999999) (1986) FRAME ASSEMBLY Parts Diagram

Edger, 3.5hp

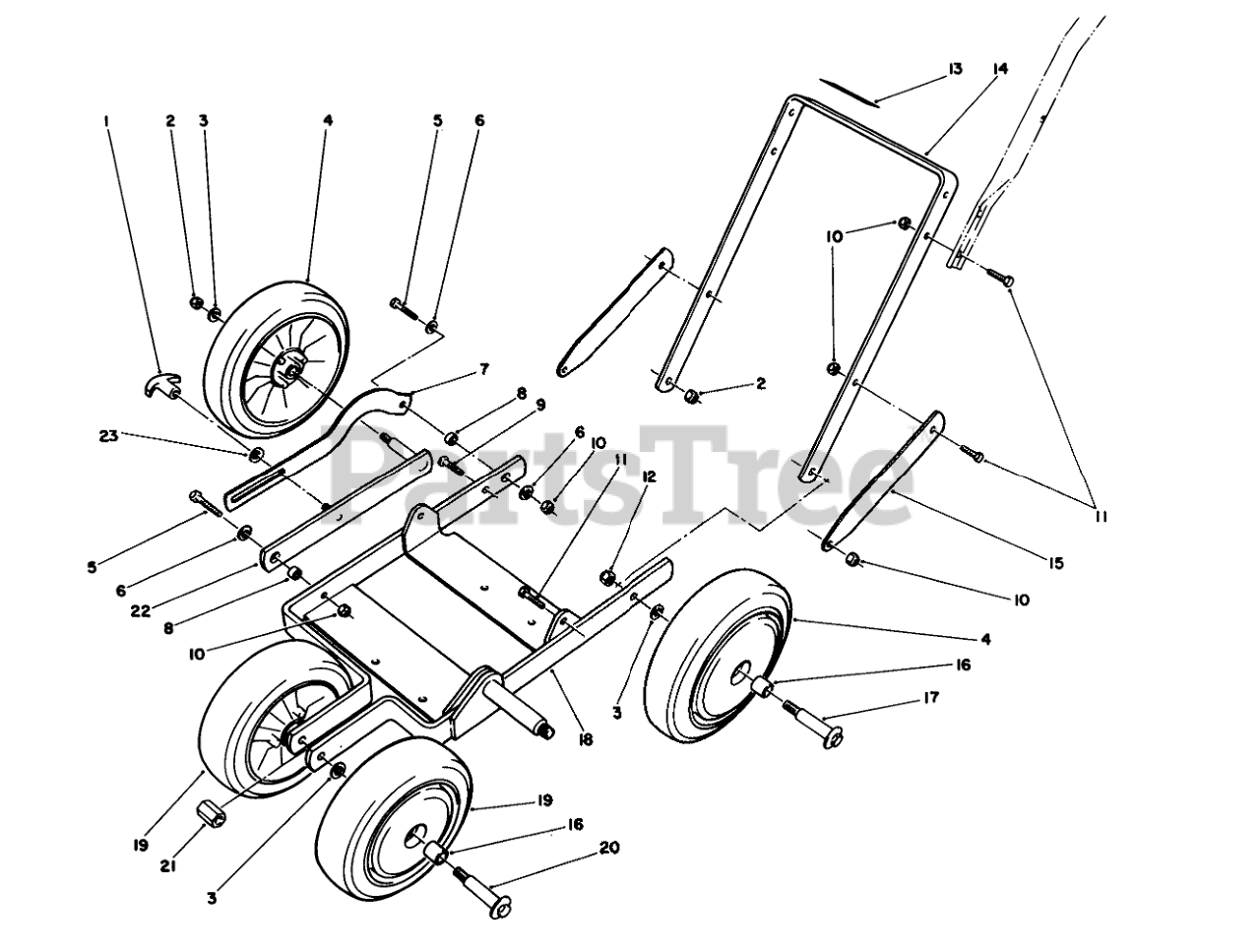

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 62-5810

KNOB

$

$

Not available

2

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

3

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

4

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #16)
(Superseded to 51-2751)

$34.99

$

In Stock, only 2 left!

0

5

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 57-7240

AXLE LINK

$

$

Not available

8

Toro 57-7070

WHEEL MT BUSHING

$

$

Not available

9

Toro 3273-35

3/8-24 X 1.00HEX BU. HD

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

12

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

13

Toro 52-0570

Decal-Warning
(Superseded to 68-7390)

$

$

Not available

14

Toro 57-7270

LOWER HANDLE

$

$

Not available

15

Toro 57-7260

SUPPORT HANDLE

$

$

Not available

16

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

17

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

18

Toro 57-7400

Frame-Edger

$

$

Not available

19

Toro 46-1113

Wheel & Tire Assembly (Incl. Ref. #16)

$

$

Not available

20

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

21

Toro 57-7050

HEX SPACER

$

$

Not available

22

Toro 57-7100

WHEEL MOUNT WA

$

$

Not available

23

Toro 3290-458

BELLEVILLE SPRING WASHE

$

$

Not available
