58430 - Toro Edger, 3.5hp (SN: 006000001 - 006999999) (1986) ENGINE & BLADE ASSEMBLY Parts Diagram

Edger, 3.5hp

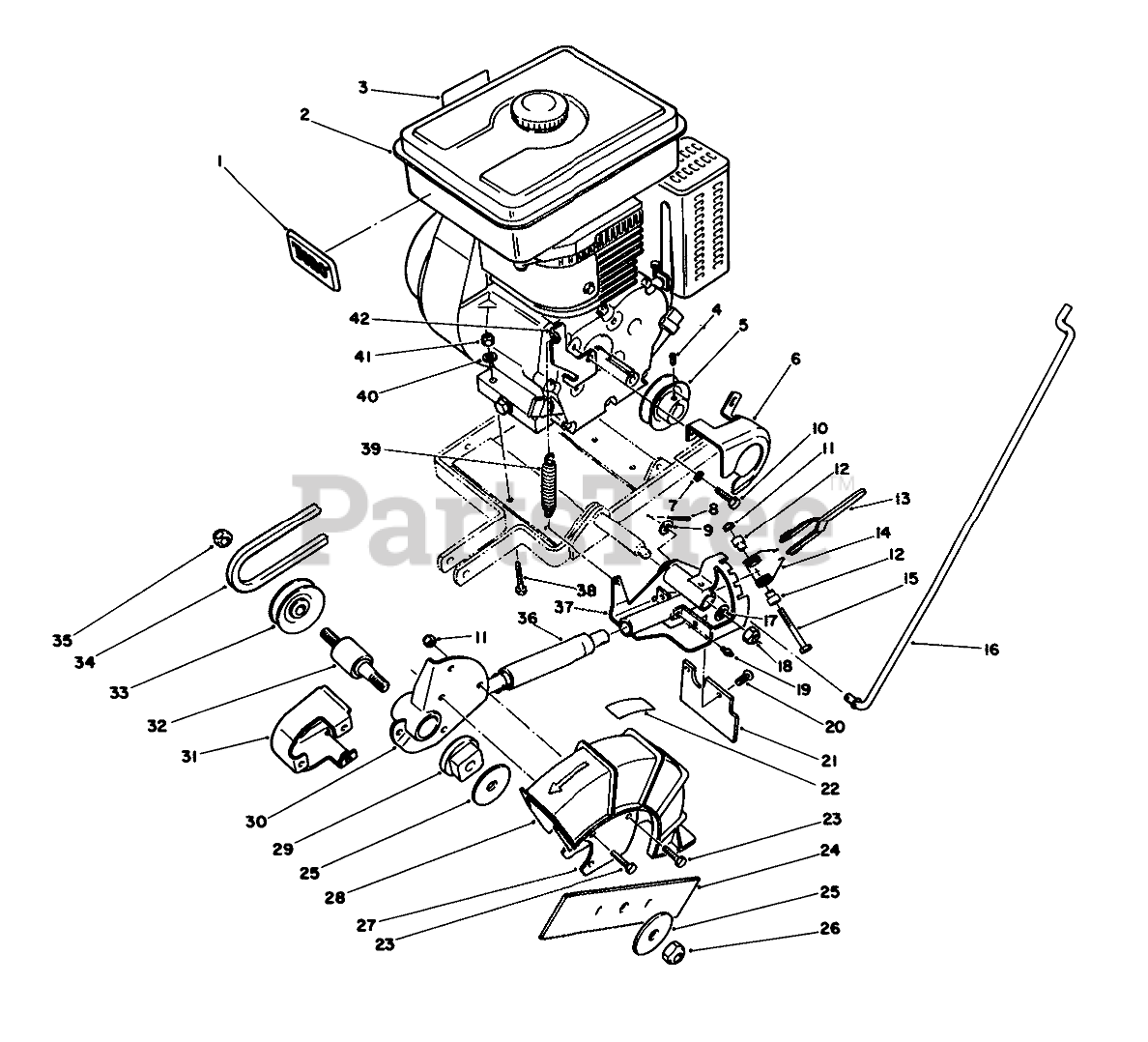

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

2

Engine-Model No. 59270

$

$

Not available

3

Toro 52-3370

Decal-Instruction

$

$

Not available

4

Toro 3246-15

SCREW-SET

$6.49

$

Usually ships in 3-6 days

0

5

Toro 52-0550

PULLEY (3.5 HP)

$

$

Not available

6

Toro 52-0580

ENG. PULLEY GUARD

$82.99

$

Usually ships in 3-6 days

0

7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

11

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

12

Toro 57-7080

SPACER-PIVOT LEVER

$

$

Not available

13

Toro 57-7120

LEVER WA

$

$

Not available

14

Toro 57-7250

TORSION SPRING

$

$

Not available

15

Toro 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

16

Toro 57-7290

LOWER CONTROL ROD

$72.99

$

Usually ships in 3-6 days

0

17

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 8

0

18

Toro 3296-25

NUT-LOCK, NI

$1.99

$

In Stock, only 2 left!

0

19

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

20

Toro 3290-446

PANEL FASTENER

$

$

Not available

21

Toro 52-0310

RUBBER GUARD

$

$

Not available

22

Toro 57-7030

Decal-Warning
(Superseded to 68-7410)

$12.99

$

In Stock, only 1 left!

0

23

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

24

Toro 55-7930

10" EDGER BLADE B

$

$

Not available

25

Toro 55-7960

WASHER-LARGE

$2.99

$

Usually ships in 3-6 days

0

26

Toro 3219-5

NUT-HEX

$1.49

$

In Stock, only 1 left!

0

27

Toro 57-7330

GUARD PLATE

$

$

Not available

28

Toro 12-4629

Guard-Blade (Incl. Ref. #22)

$

$

Not available

29

Toro 52-0720

BRG SHIELD

$

$

Not available

30

Toro 52-0410

HUB ASM

$500.99

$

Usually ships in 3-6 days

0

31

Toro 52-0500

PULLEY GUARD WA

$

$

Not available

32

Toro 57-7320

SPINDLE ASM

$

$

Not available

33

Toro 57-7410

PULLEY

$

$

Not available

34

Toro 52-0320

V-BELT

$

$

Not available

35

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 4 left!

0

36

Toro 11-8249

SPRING & BELLOW ASM

$

$

Not available

37

Toro 57-7200

PIVOT ARM WELDMENT B

$

$

Not available

38

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 52-0610

EXT. SPRING

$

$

Not available

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Toro 52-0210

SPRING BRKT R

$

$

Not available

Toro 12-4359

Spindle & Hub Assembly (Incl. Ref. #30 & 32)

Note: Not illustrated

$

$

Not available
