58411 - Toro Edger, 2hp (SN: 010000001 - 019999999) (1991) ENGINE BRIGGS & STRATTON MODEL NO. 60112 TYPE NO. 1210-01 Parts Diagram

Edger, 2hp

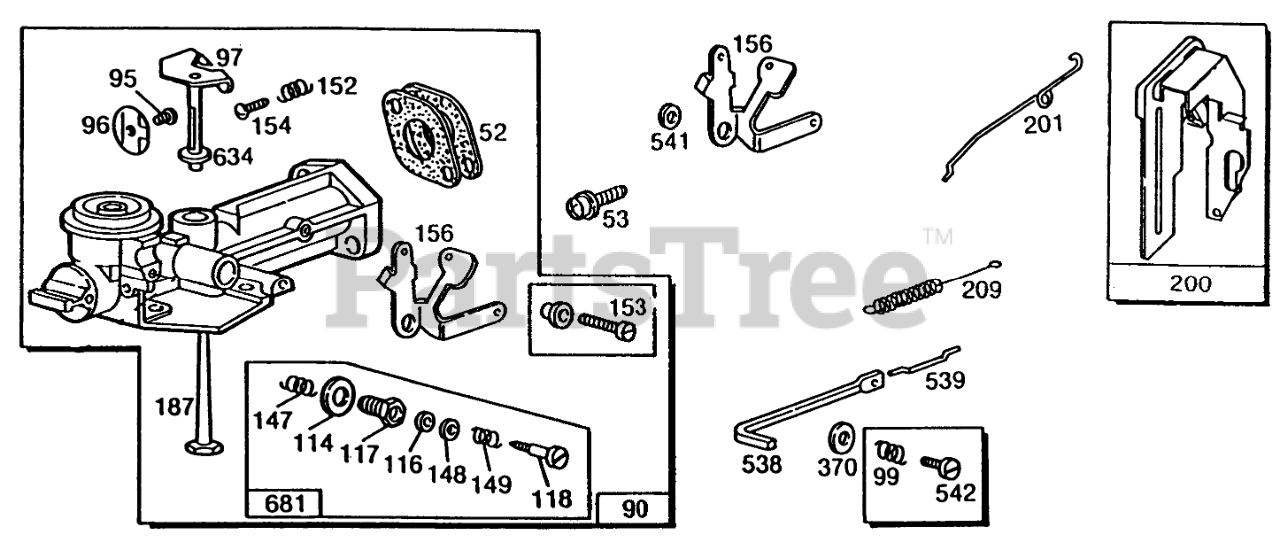

ENGINE BRIGGS & STRATTON MODEL NO. 60112 TYPE NO. 1210-01 Parts Diagram

  • Title

8

Briggs & Stratton 294178

Breather-Valve Chamber
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 27355

Gasket-Carburetor
(Superseded to 27355S)

Note: Included in Gasket Set-Part No. 297275

$3.99

$

In Stock, Qty 20+

0

53

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 393974

Carburetor Assembly

$

$

Not available

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211286

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 392819

Shaft & Lever-Throttle

$

$

Not available

99

Briggs & Stratton 393586

Spring (Incl. Fil. Head Screw)
(Superseded to 490956)

$14.99

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 65787

Gasket-Needle Valve

$3.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 65978

Packing-Needle
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 23431

Nut-Needle Valve
(Superseded to 5023431)

$1215.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 23433

Valve-Needle
(Superseded to 690266)

$9.49

$

In Stock, only 3 left!

0

147

Briggs & Stratton 23432

Seat-Needle Valve
(Superseded to 5023432)

$683.99

$

In Stock, only 1 left!

0

148

Briggs & Stratton 22235

Washer-Needle Valve
(Superseded to 690257)

$4.99

$

In Stock, only 1 left!

0

149

Briggs & Stratton 26336

Spring Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, only 4 left!

0

152

Briggs & Stratton 260575

Spring-Adjustment
(Superseded to 691783)

$7.99

$

In Stock, Qty 10

0

153

Briggs & Stratton 298031

Screw-Carburetor Lever

$4.99

$

Usually ships in 2-12 days

0

154

Briggs & Stratton 93527

Screw-Rd. Hd.
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

156

Briggs & Stratton 222955

Lever-Speed Adjuster

$8.49

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 296476

Pipe-Fuel

$10.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 397556

Blade-Governor
(Superseded to 498770)

$

$

Not available

201

Briggs & Stratton 262042

Link-Air Vane

$6.49

$

In Stock, only 1 left!

0

209

Briggs & Stratton 260041

Spring-Governor
(Superseded to 692205)

$6.99

$

Usually ships in 2-12 days

0

370

Briggs & Stratton 66432

Washer-Plain
(Superseded to 691607)

$5.49

$

Usually ships in 2-12 days

0

538

Briggs & Stratton 260683

Rod-Speed Control
(Superseded to 691787)

$

$

Not available

539

Briggs & Stratton 260684

Link-Rod
(Superseded to 691788)

$9.49

$

Usually ships in 2-12 days

0

541

Briggs & Stratton 22398

Washer
(Superseded to 5022398)

$3.49

$

Usually ships in 2-12 days

0

542

Briggs & Stratton 393586

Screw-Machine Fil. Hd. (Incl. spring)
(Superseded to 490956)

$14.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 13

0

681

Briggs & Stratton 299059

Needle Valve Kit

$33.99

$

In Stock, only 1 left!

0
