58411 - Toro Edger, 2hp (SN: 008000001 - 008999999) (1988) HANDLE ASSEMBLY Parts Diagram

Edger, 2hp

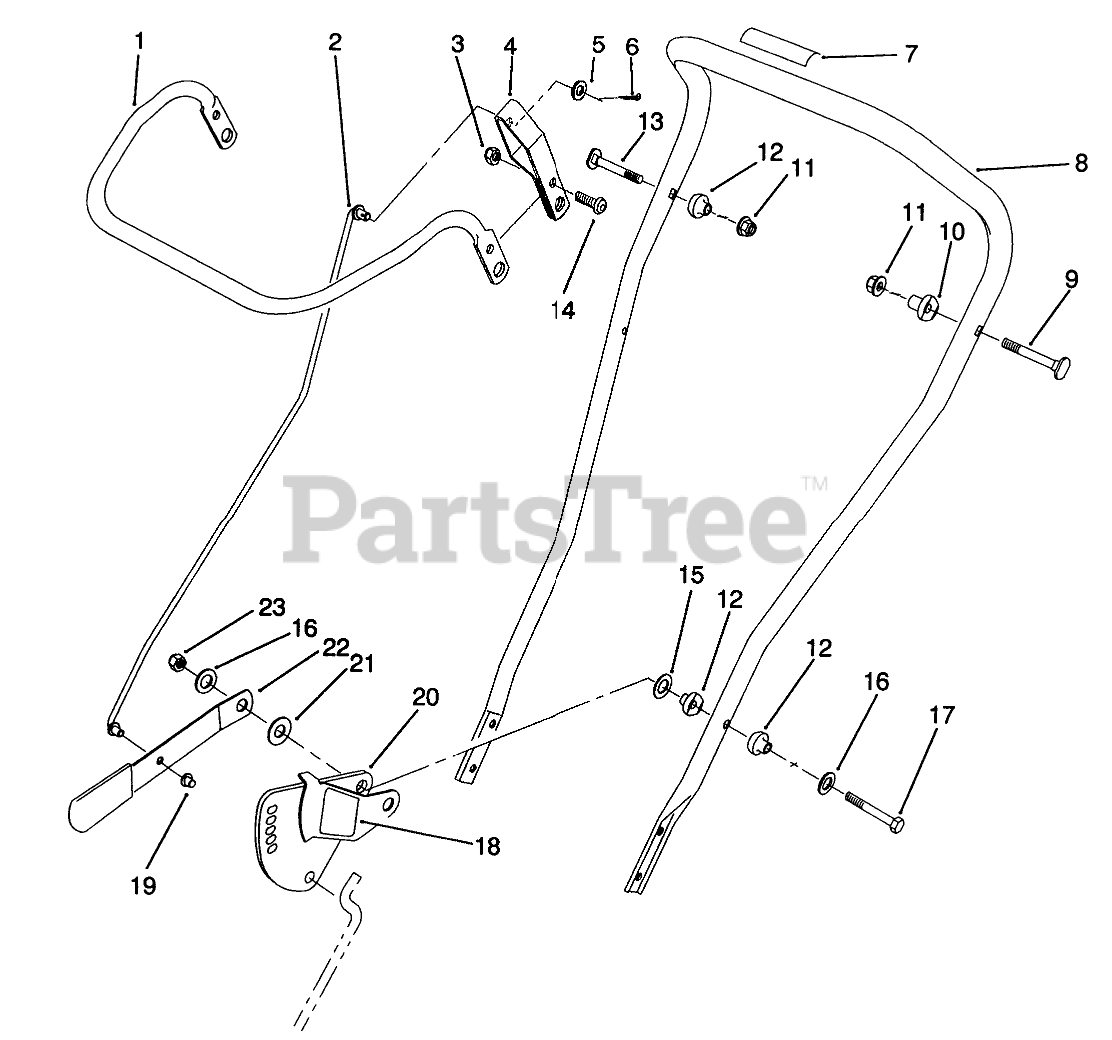

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 55-9130

Bar-Control
(Superseded to 55-9130-03)

$

$

Not available

2

Toro 57-7300

UPPER CONTROL ROD

$

$

Not available

3

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

4

Toro 57-7460

CONTROL BAR BRKT.

$

$

Not available

5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

7

Toro 57-7450

DECAL

$

$

Not available

8

Toro 57-7280

UPPER HANDLE

$248.99

$

Usually ships in 3-6 days

0

9

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, only 3 left!

0

10

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

11

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

12

Toro 57-7440

PIVOT SPACER

$

$

Not available

13

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

14

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 9

0

15

Toro 5-1902

WASHER

$

$

Not available

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

18

Toro 57-7420

DECAL

$

$

Not available

19

Toro 32112-13

PUSHNUT

$2.49

$

Usually ships in 3-6 days

0

20

Toro 57-7230

ADJ.PLATE WA

$

$

Not available

21

Toro 23-1120

WASHER

$20.99

$

Usually ships in 3-6 days

0

22

Toro 57-7060

ADJ.HANDLE

$

$

Not available

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
