58411 - Toro Edger, 2hp (SN: 008000001 - 008999999) (1988) ENGINE BRIGGS & STRATTON MODEL NO. 60112 TYPE NO. 1210-01 Parts Diagram

Edger, 2hp

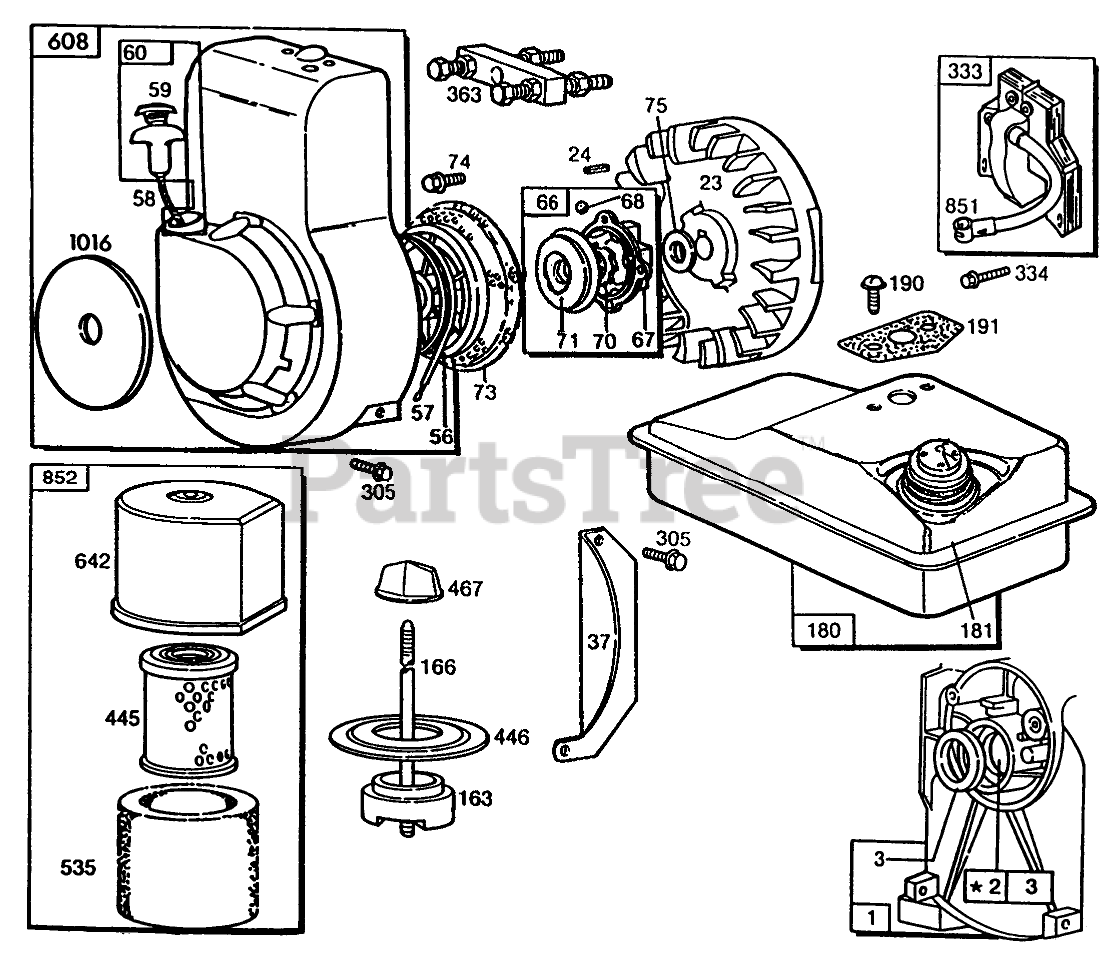

ENGINE BRIGGS & STRATTON MODEL NO. 60112 TYPE NO. 1210-01 Parts Diagram

  • Title

1

Briggs & Stratton 395879

Cylinder Assembly

$199.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

8

Briggs & Stratton 294178

Breather-Valve Chamber
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 296884

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 220971

Guard-Flywheel

$11.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 280439

Pully-Starter
(Superseded to 280439S)

$12.99

$

In Stock, Qty 10

0

57

Briggs & Stratton 490179

Spring-Rewind

$

$

Not available

58

Briggs & Stratton 66694

Rope-Rewind
(Superseded to 66734)

$6.49

$

In Stock, Qty 11

0

59

Briggs & Stratton 396892

Insert-Grip

$5.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 393152

Grip-Starter Rope

$4.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 399671

Clutch-Starter

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Ball-Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298436

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Clutch
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221661

Screw-Sem
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

163

Briggs & Stratton 271755

Gasket-Air Cleaner Mount

$

$

Not available

166

Briggs & Stratton 231398

Stud-Air Cleaner

$9.49

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 399390

Tank Assembly-Fuel

$

$

Not available

181

Briggs & Stratton 298425

Cap-Fuel Tank
(Superseded to 493982S)

$

$

Not available

190

Briggs & Stratton 93440

Screw-Fuel Tank
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 27404

Gasket-Fuel Tank Mtg.

Note: Included in Gasket Set-Part No. 297275

$6.49

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

333

Briggs & Stratton 398593

Armature-Magneto
(Superseded to 591420)

$53.99

$

In Stock, only 3 left!

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

445

Briggs & Stratton 396424

Filter-Air
(Superseded to 396424S)

$13.99

$

In Stock, only 3 left!

0

446

Briggs & Stratton 222844

Base-Air Cleaner
(Superseded to 691735)

$17.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 212706

Knob-Air Cleaner
(Superseded to 691668)

$5.49

$

In Stock, only 1 left!

0

535

Briggs & Stratton 271466

Filter-Air

$4.49

$

In Stock, Qty 20+

0

608

Briggs & Stratton 398034

Starter Assembly-Rewind

$65.99

$

Usually ships in 2-12 days

0

642

Briggs & Stratton 223306

Cover-Air Cleaner
(Superseded to 493822)

$

$

Not available

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

852

Briggs & Stratton 397294

Cleaner Assy.-Air
(Superseded to 493822)

$

$

Not available

1016

Briggs & Stratton 490817

Spacer

$9.49

$

In Stock, Qty 5

0
