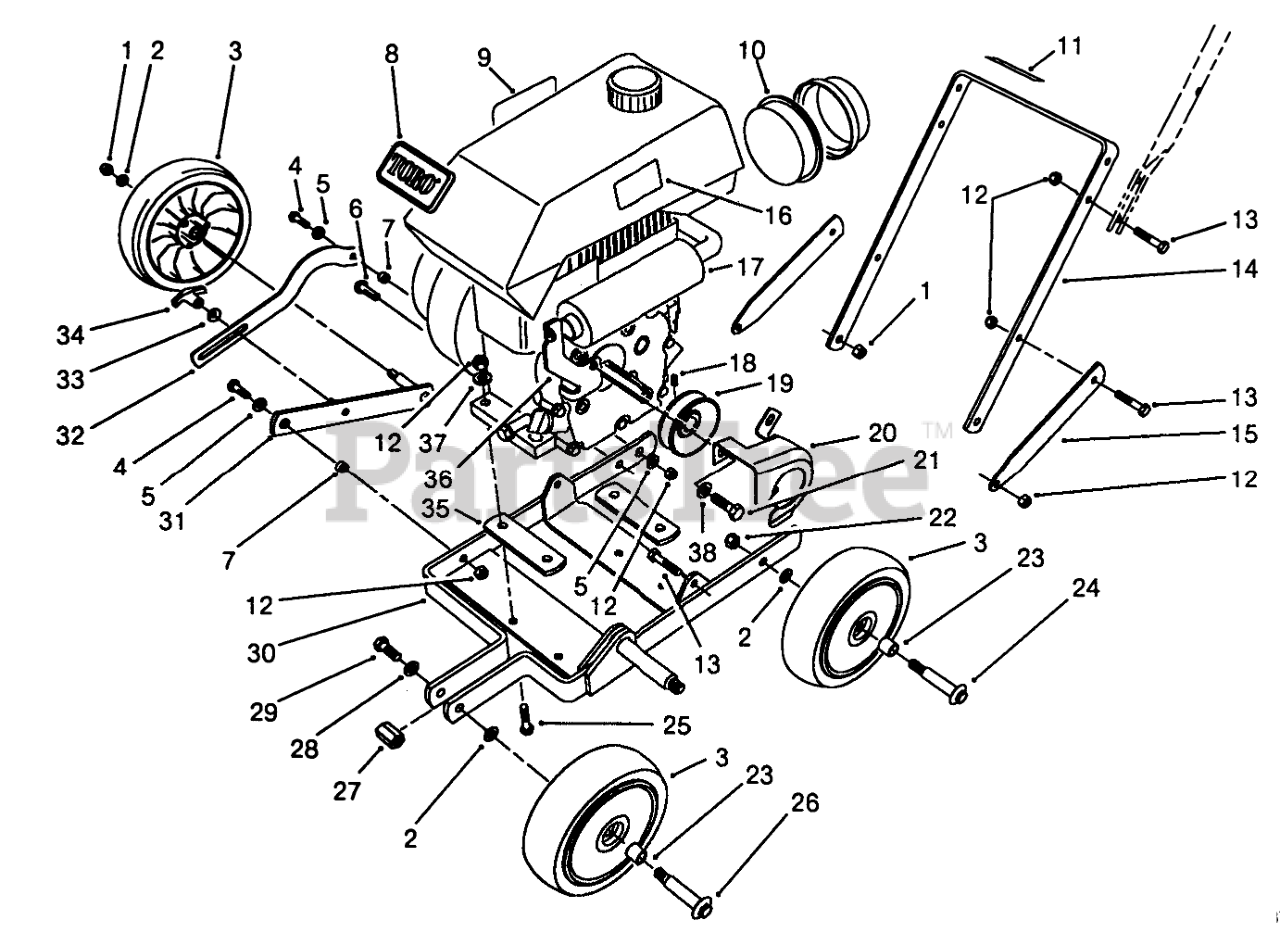

58410 - Toro Edger, 2hp (SN: 007000001 - 007999999) (1987) FRAME ASSEMBLY Parts Diagram

Edger, 2hp

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

2

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

3

Toro 46-1113

Wheel & Tire Assembly (Incl. Ref. #23)

$

$

Not available

4

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3273-35

3/8-24 X 1.00HEX BU. HD

$

$

Not available

7

Toro 57-7070

WHEEL MT BUSHING

$

$

Not available

8

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

9

Toro 52-3380

OPERATING INST DECAL

$16.99

$

Usually ships in 3-6 days

0

10

Toro 52-1190

FILTER FOAM

$

$

Not available

11

Toro 52-0570

Decal-Warning
(Superseded to 68-7390)

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 57-7270

LOWER HANDLE

$

$

Not available

15

Toro 57-7260

SUPPORT HANDLE

$

$

Not available

16

Toro 42-6250

Decal-Hot
(Superseded to 53-7190)

$

$

Not available

17

Toro 52-1170

Engine (Complete)

$

$

Not available

18

Toro 3246-15

SCREW-SET

$6.49

$

Usually ships in 3-6 days

0

19

Toro 52-0450

2HP PULLEY

$60.99

$

Usually ships in 3-6 days

0

20

Toro 52-0580

ENG. PULLEY GUARD

$82.99

$

Usually ships in 3-6 days

0

21

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

22

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

23

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

24

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 7

0

25

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

26

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

27

Toro 57-7050

HEX SPACER

$

$

Not available

28

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

29

Toro 3211-2

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

30

Toro 57-7400

Frame-Edger

$

$

Not available

31

Toro 57-7100

WHEEL MOUNT WA

$

$

Not available

32

Toro 57-7240

AXLE LINK

$

$

Not available

33

Toro 3290-458

BELLEVILLE SPRING WASHE

$

$

Not available

34

$

$

Not available

35

Toro 57-7470

Pats-Spacer

$

$

Not available

36

Toro 52-0210

SPRING BRKT R

$

$

Not available

37

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

38

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
