58410 - Toro Edger, 2hp (SN: 006000001 - 006999999) (1986) CRANKSHAFT ASSEMBLY Parts Diagram

Edger, 2hp

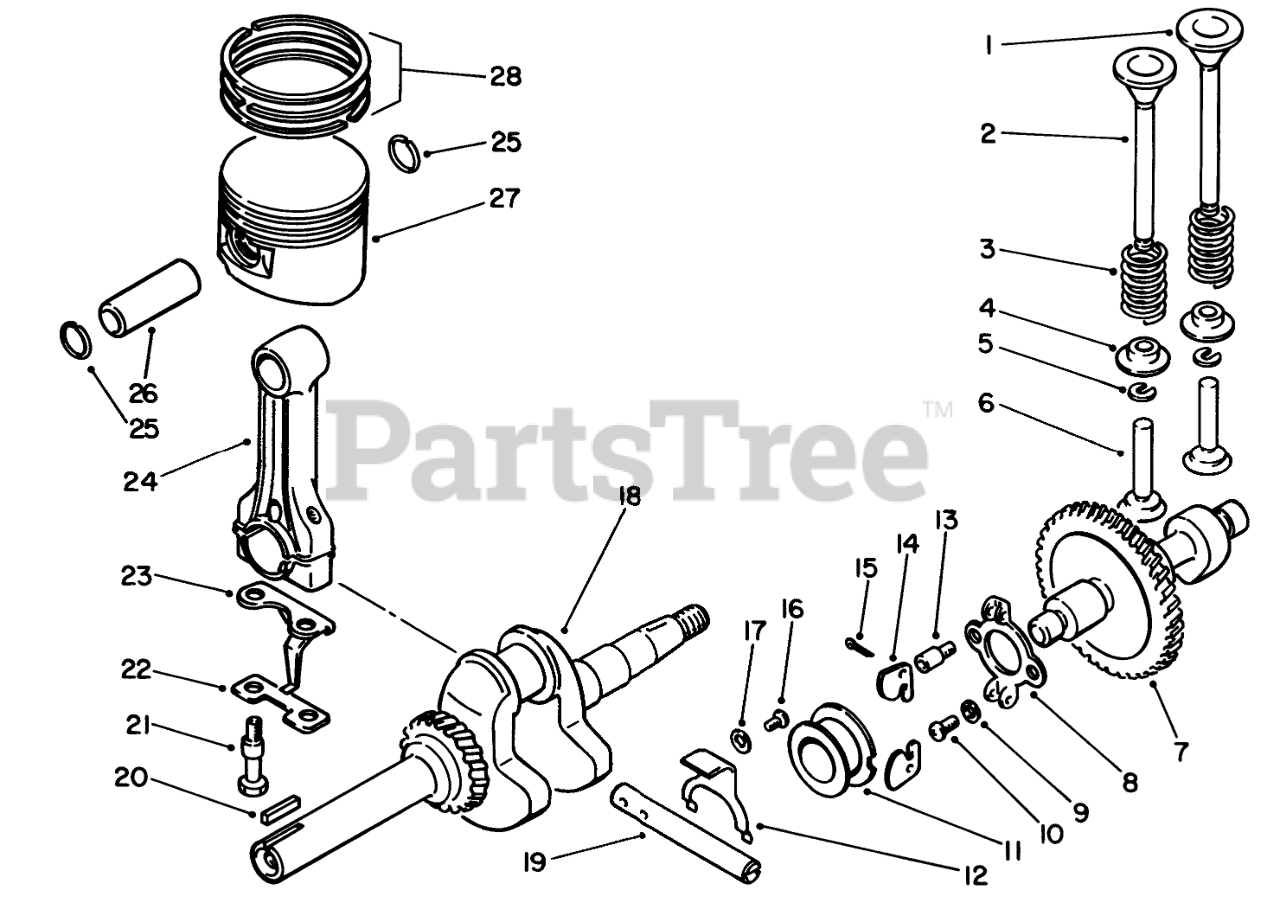

CRANKSHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 53-0450

VALVE, INTAKE

$

$

Not available

2

Toro 53-0460

VALVE, EXHAUST

$

$

Not available

3

Toro 53-0470

Spring-Valve

$

$

Not available

4

Toro 50-2150

Retainer-Spring

$

$

Not available

5

Toro 50-2170

Cotter-Valve

$

$

Not available

6

Toro 53-0420

TAPPET

$

$

Not available

Toro 53-0430

Tappet (L:32.93)

$

$

Not available

Toro 53-0440

Tappet (L:33.07)

$

$

Not available

7

Toro 53-0710

Cam Shaft

$

$

Not available

8

Toro 50-3090

BRACKET

$

$

Not available

9

Toro 50-0600

Washer

$

$

Not available

10

Toro 81-1410

Bolt

$

$

Not available

11

Toro 50-3120

Spacer

$

$

Not available

12

Toro 53-0490

SHIFT PLATE

$

$

Not available

13

Toro 51-3100

SPACER-HOC ADJUSTMENT

$

$

Currently unavailable

14

Toro 50-3080

ARM

$

$

Not available

15

Toro 50-0420

Cotter Pin

$

$

Not available

16

Toro 50-0220

SCREW

$

$

Not available

17

Toro 50-0590

Washer

$

$

Not available

18

Toro 53-0390

Crankshaft Assembly

$

$

Not available

19

Toro 53-0480

SHAFT-THROTTLE TURN

$

$

Not available

20

Toro 53-0400

Key

$

$

Not available

21

Toro 53-0350

Bolt

$

$

Not available

22

Toro 53-0360

LOCK PLATE

$

$

Not available

23

Toro 53-0370

Plate-Splasher

$

$

Not available

24

Toro 53-0340

Connecting Rod Assembly (Incl. Ref. #21-23)

$

$

Not available

25

Toro 50-0950

CIRCLIP

$

$

Not available

26

Toro 53-0330

Pin Piston

$

$

Not available

27

Toro 53-0270

Piston Std.

$

$

Not available

Toro 53-0280

Piston O.S. 0.25 (optional)

$

$

Not available

Toro 53-0290

Piston O.S. 0.5 (optional)

$

$

Not available

28

Toro 53-0300

Ring Set-Piston Std.

$

$

Not available

Toro 53-0310

Ring Set-Piston O.S. 0.25 (optional)

$

$

Not available

Toro 53-0320

Ring Set-Piston O.S. 0.5 (optional)

$

$

Not available
