58402 - Toro Edger, 2hp (SN: 005000001 - 005999999) (1985) RECOIL STARTER ASSEMBLY Parts Diagram

Edger, 2hp

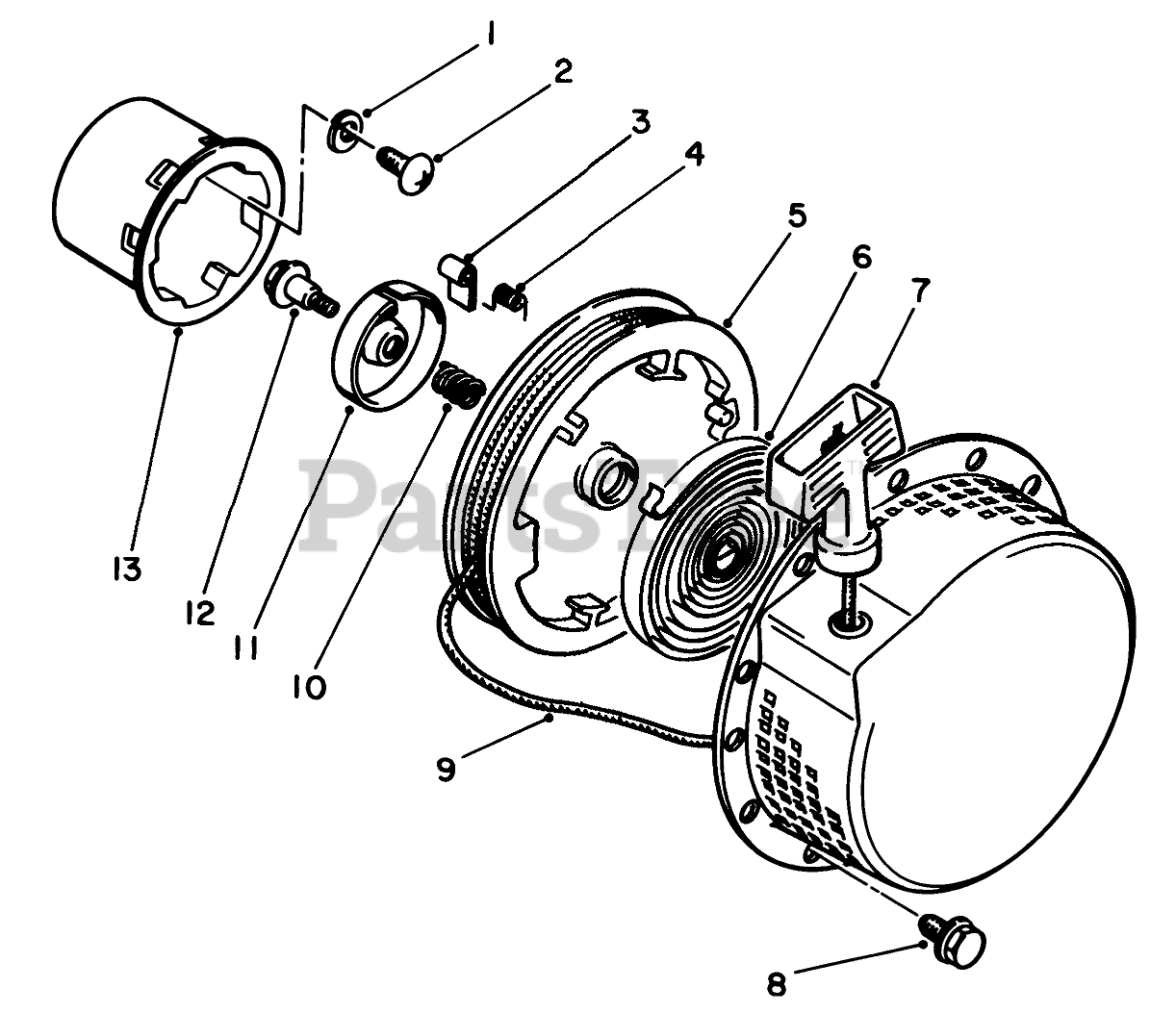

RECOIL STARTER ASSEMBLY Parts Diagram

  • Title

1

Toro 53-0680

Washer-Lock

$

$

Not available

2

Toro 53-0670

Screw

$

$

Not available

3

Toro 81-1230

DOG

$

$

Not available

4

Toro 81-1220

SPRING

$

$

Not available

5

Toro 53-1470

REEL

$

$

Not available

6

Toro 53-0720

SPRING

$

$

Not available

7

Grip-Hand

$

$

Not available

8

Toro 53-0690

Bolt

$

$

Not available

9

Toro 53-0730

Starter Rope Assembly(Incl. Ref. #7)

$

$

Not available

10

Toro 81-1240

SPRING

$

$

Not available

11

Toro 81-1250

RETAINER

$24.99

$

In Stock, only 1 left!

0

12

Toro 81-1260

BOLT

$

$

Not available

13

Toro 53-0660

Pulley

$

$

Not available

Toro 53-0700

Recoil Starter Assembly(Incl. Ref. #3-12)

Note: Not illustrated

$

$

Not available
