58402 - Toro Edger, 2hp (SN: 005000001 - 005999999) (1985) FRAME ASSEMBLY Parts Diagram

Edger, 2hp

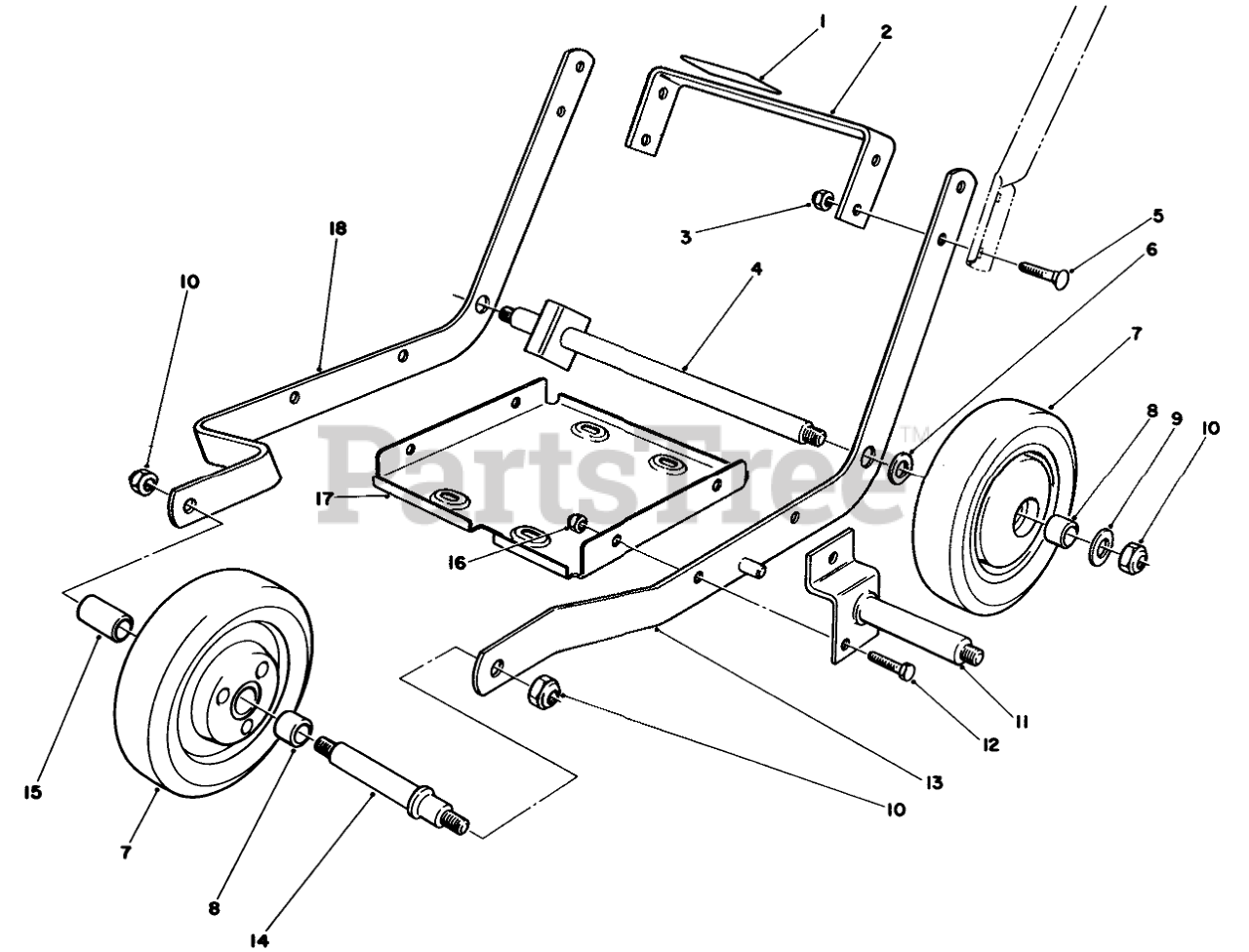

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 52-0570

Decal-Warning
(Superseded to 68-7390)

$

$

Not available

2

Toro 52-1000

Plate-Escutcheon

$

$

Not available

3

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

4

Toro 52-1230

AXLE CLAMP WA

$

$

Not available

5

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

6

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 8

0

7

Toro 46-1113

Wheel & Tire Assembly (Incl. Ref. #8)

$

$

Not available

8

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

9

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 14

0

11

Toro 52-1070

Pivot Pin Assembly

$

$

Not available

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 52-1020

Frame-L.H.

$

$

Not available

14

Toro 52-1160

FRONT AXLE (2 HP)

$

$

Not available

15

Toro 52-1210

SPACER

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 52-1180

Plate-Engine

$

$

Not available

18

Toro 52-1010

Frame-R.H.

$

$

Not available
