58402 - Toro Edger, 2hp (SN: 005000001 - 005999999) (1985) ENGINE & BLADE ASSEMBLY Parts Diagram

Edger, 2hp

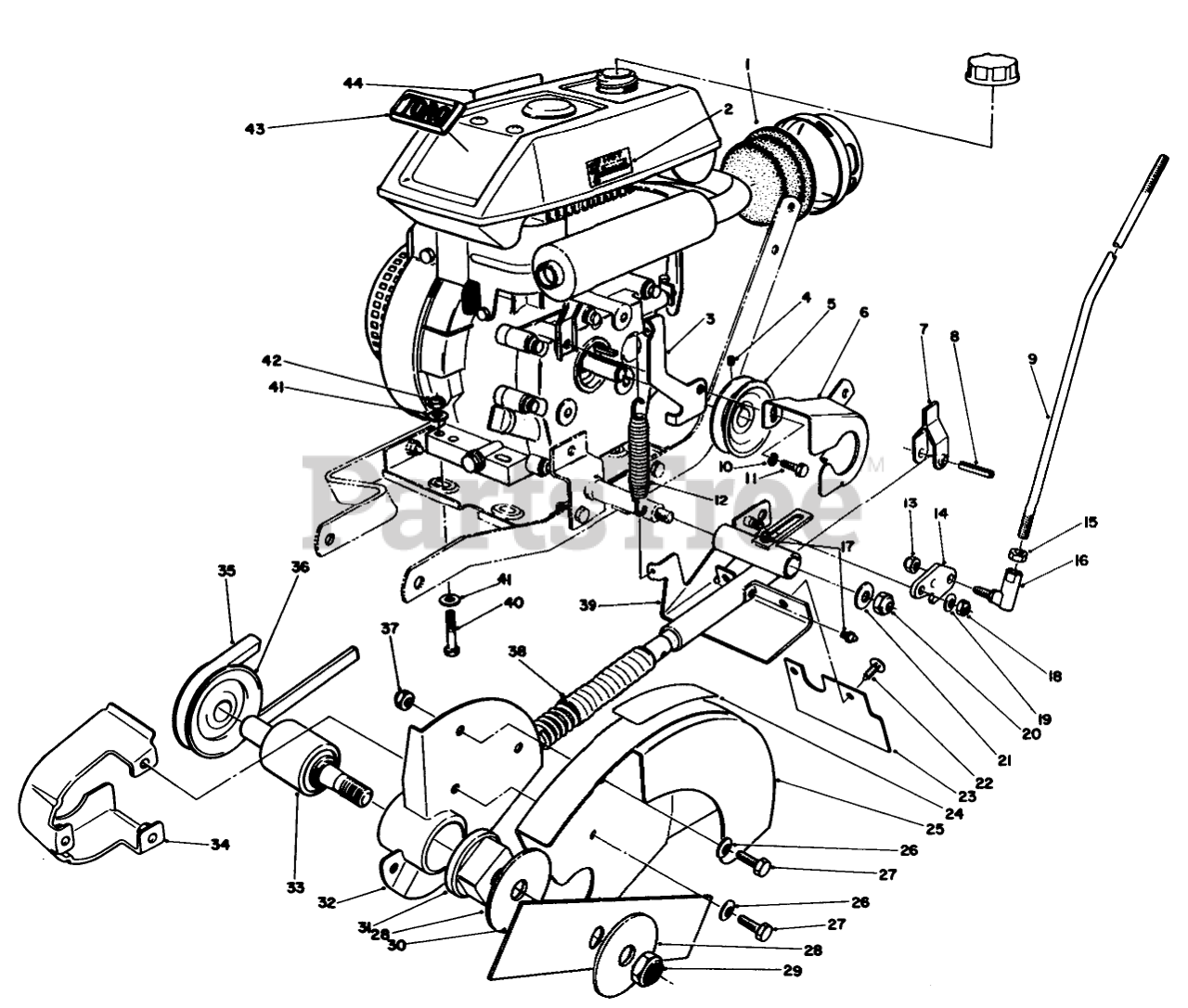

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 52-1190

FILTER FOAM

$

$

Not available

2

Toro 42-6250

Decal-Hot
(Superseded to 53-7190)

$

$

Not available

3

Toro 52-0210

SPRING BRKT R

$

$

Not available

4

Toro 3246-15

SCREW-SET

$6.49

$

Usually ships in 3-6 days

0

5

Toro 52-0450

2HP PULLEY

$60.99

$

Usually ships in 3-6 days

0

6

Toro 52-0580

ENG. PULLEY GUARD

$82.99

$

Usually ships in 3-6 days

0

7

Toro 52-0070

LEVER WA R

$

$

Not available

8

Toro 32121-112

SPIROL PIN 1/4" X 1.25"

$1.99

$

Usually ships in 3-6 days

0

9

Toro 52-0230

Rod-Lower

$

$

Not available

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 42-9230

BOLT
(Superseded to 33114-016)

$0.99

$

In Stock, only 4 left!

0

12

Toro 52-0610

EXT. SPRING

$

$

Not available

13

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

14

Toro 52-0240

LEVER LOCK WA

$

$

Not available

15

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

16

Toro 52-0220

BALL JOINT

$71.99

$

Usually ships in 3-6 days

0

17

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

18

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-25

NUT-LOCK, NI

$1.99

$

In Stock, only 2 left!

0

21

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 3 left!

0

22

Toro 3290-446

PANEL FASTENER

$

$

Not available

23

Toro 52-0310

RUBBER GUARD

$

$

Not available

24

Toro 52-0400

BLADE WARNING DECAL

$

$

Not available

25

Toro 52-0090

Blade Guard Assembly

$

$

Not available

26

Toro 3290-451

WASHER-BELLEVILLE

$0.99

$

Usually ships in 3-6 days

0

27

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

28

Toro 55-7960

WASHER-LARGE

$2.99

$

Usually ships in 3-6 days

0

29

Toro 3219-5

NUT-HEX

$1.49

$

In Stock, only 1 left!

0

30

Toro 55-7931

9" EDGER BLADE

$42.99

$

In Stock, only 1 left!

0

31

Toro 52-0720

BRG SHIELD

$

$

Not available

32

Toro 52-1130

HUB SHAFT WA RO

$

$

Not available

33

Toro 52-0460

Spindle Assembly

$

$

Not available

34

Toro 52-0500

PULLEY GUARD WA

$

$

Not available

35

Toro 52-0320

V-BELT

$

$

Not available

36

Toro 52-0620

PULLEY-SPINDLE ASM

$

$

Not available

37

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

38

Toro 11-8249

SPRING & BELLOW ASM

$

$

Not available

39

Toro 11-8309

PIVOT WA-MASKED 2HP RO

$

$

Not available

40

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

41

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

42

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

43

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

44

Toro 52-3380

OPERATING INST DECAL

$16.99

$

Usually ships in 3-6 days

0

Toro 59265

Engine (Complete)

Note: Not illustrated

$

$

Not available
