58402 - Toro Edger, 2hp (SN: 005000001 - 005999999) (1985) CARBURETOR ASSEMBLY Parts Diagram

Edger, 2hp

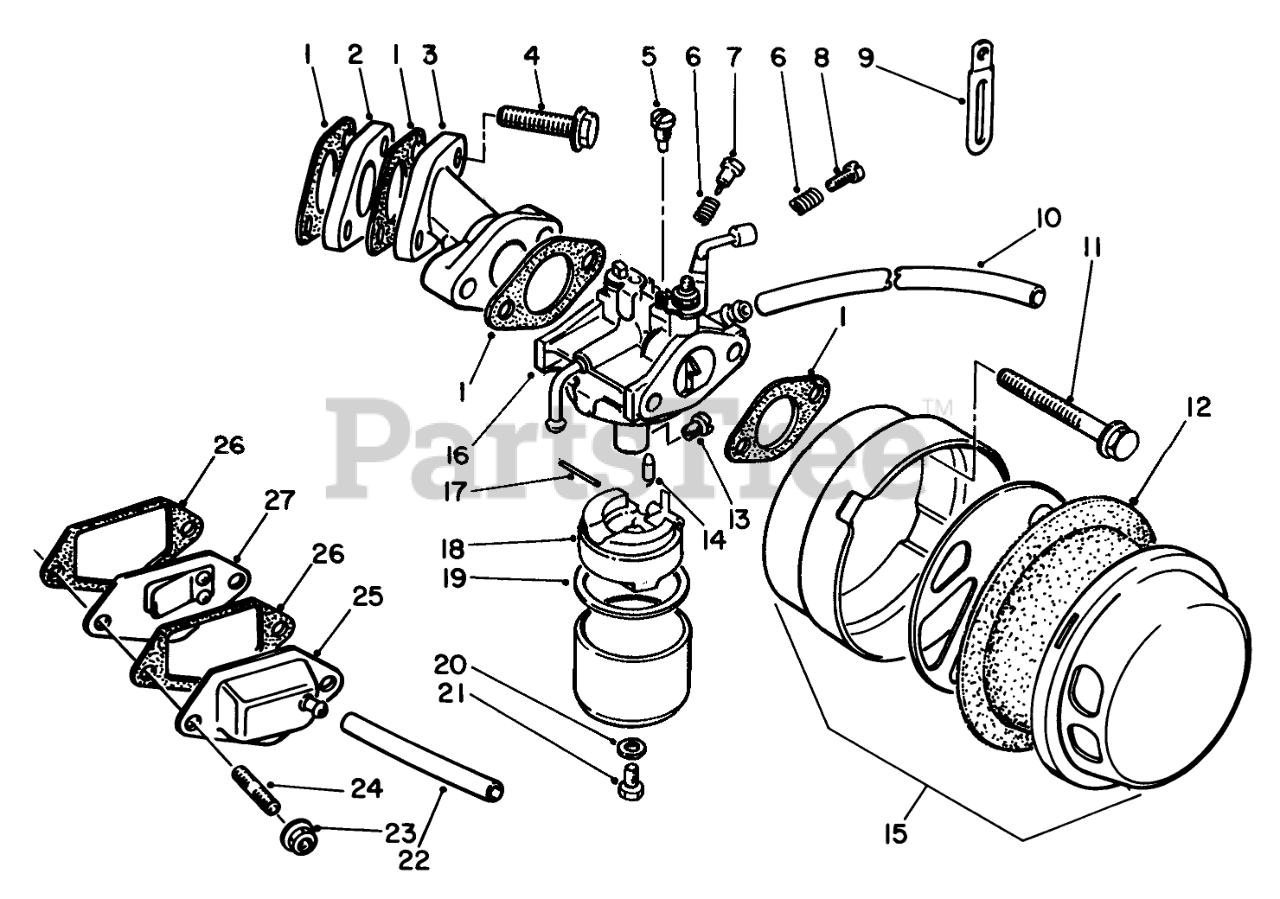

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 50-2450

GASKET

$

$

Not available

2

Toro 53-0540

Insulator

$

$

Not available

3

Toro 53-0610

Reel

$

$

Not available

4

Toro 53-0130

BOLT

$

$

Not available

5

Toro 50-4770

Jet
(Superseded to 81-2930)

$28.99

$

Usually ships in 3-6 days

0

6

Toro 50-2340

SPRING

$

$

Not available

7

Toro 50-2360

ADJUSTER

$20.99

$

Usually ships in 3-6 days

0

8

Toro 50-0250

SCREW

$

$

Not available

9

Toro 81-1480

CLAMP

$5.99

$

Usually ships in 3-6 days

0

10

Toro 53-0580

Hose-Overflow

$

$

Not available

11

Toro 53-0600

Screw-Hex Flange Hd.

$

$

Not available

12

Toro 52-1190

FILTER FOAM

$

$

Not available

13

Toro 53-0560

Jet-Main

$

$

Not available

14

Toro 53-0590

NEEDLE ASSM.

$

$

Not available

15

Toro 53-0530

Air Cleaner Assembly

Note: Does not include Element.

$

$

Not available

16

Toro 53-0550

Carburetor Assembly (Incl. Items #13, 14, 17-21)

$

$

Not available

17

Toro 81-0980

Pin
(Superseded to 81-2600)

$8.49

$

Usually ships in 3-6 days

0

18

Toro 55-1320

FLOAT

$

$

Not available

19

Toro 50-2280

GASKET

$

$

Not available

20

Toro 50-2260

GASKET

$

$

Not available

21

Toro 53-0570

Screw-Hex Hd.

$

$

Not available

22

Toro 50-0900

HOSE

$

$

Not available

23

Toro 50-7180

NUT

$6.99

$

In Stock, only 3 left!

0

24

Toro 50-7170

Bolt-Stud

$

$

Not available

25

Toro 53-0500

Cap-Breather

$

$

Not available

26

Toro 53-0510

Gasket

$

$

Not available

27

Toro 53-0520

REED VALVE

$

$

Not available
