58402 - Toro Edger, 2hp (SN: 004000001 - 004999999) (1984) CRANKCASE ASSEMBLY Parts Diagram

Edger, 2hp

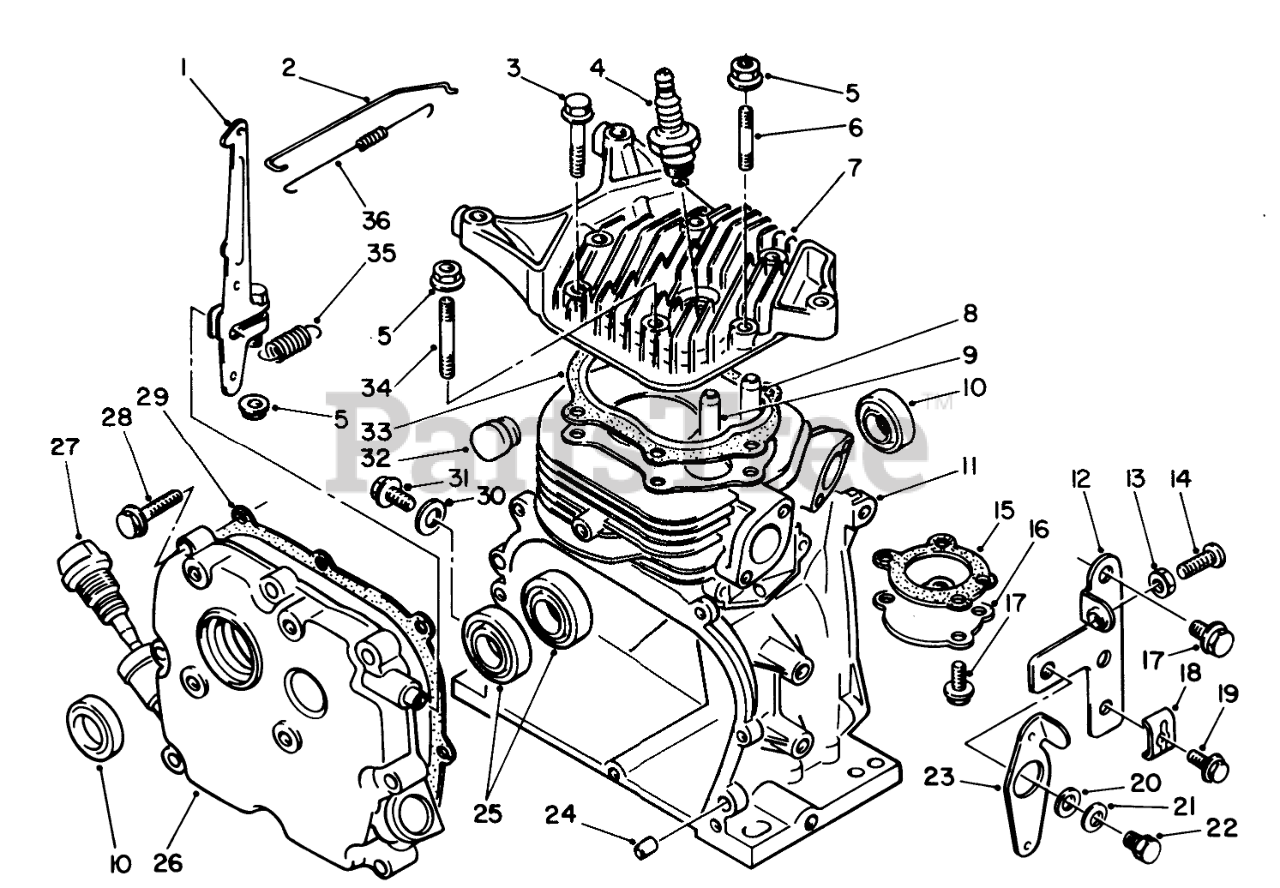

CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Toro 53-0140

Lever-Throttle Conlrol

$

$

Not available

2

Toro 53-0230

Rod-Carburetor

$

$

Not available

3

Toro 53-1490

Bolt

$

$

Not available

4

Toro 53-0050

Spark Plug

$

$

Currently unavailable

5

Toro 50-7180

NUT

$6.99

$

In Stock, only 3 left!

0

6

Toro 53-0030

Bolt-Stud

$

$

Not available

7

Toro 53-0010

Cylinder Head

$

$

Not available

8

Toro 53-0070

Guide-Intake Valve
(Superseded to 81-3830)

$

$

Not available

9

Toro 53-0080

Guide-Exhaust Valve

$

$

Not available

10

Toro 50-0860

OIL SEAL

$

$

Not available

11

Toro 53-0060

Cylinder Assembly

$

$

Not available

12

Toro 53-0150

Bracket-Governor Control

$

$

Not available

13

Toro 53-0180

Nut-Jam

$

$

Not available

14

Toro 53-0170

Screw-Round Phillips Hd.

$

$

Not available

15

Toro 50-3520

GASKET

$

$

Not available

16

Toro 53-0090

Cover-Level Sensor

$

$

Not available

17

Toro 50-6320

Bolt

$

$

Not available

18

Toro 81-1690

CLAMP-CABLE

$2.99

$

Usually ships in 3-6 days

0

19

Toro 50-0130

BOLT

$

$

Not available

20

Toro 53-0200

WASHER

$

$

Not available

21

Toro 53-0210

Washer

$

$

Not available

22

Toro 53-0220

BOLT

$

$

Not available

23

Toro 53-0190

Lever

$

$

Not available

24

Toro 50-0450

PIN

$

$

Not available

25

Toro 50-0820

Bearing

$

$

Not available

26

Toro 53-0100

Cover-Crankcase Side

$

$

Not available

27

Toro 53-0120

Gauge-Oil Level

$

$

Not available

28

Toro 53-0130

BOLT

$

$

Not available

29

Toro 53-0110

CRANKCASE GASKET

$

$

Not available

30

Toro 50-0780

Gasket

$

$

Not available

31

Toro 50-0200

Bolt
(Superseded to 81-4970)

$

$

Not available

32

Toro 53-0870

Plug

$

$

Not available

33

Toro 53-0020

CYL. GASKET

$

$

Not available

34

Toro 53-0040

Bolt-Stud

$

$

Not available

35

Toro 53-0250

SPRING

$

$

Not available

36

Toro 53-0240

SPRING

$

$

Not available

Toro 53-0260

Gasket Set

Note: Not illustrated

$

$

Not available
