584 (590-584-150) - Cub Cadet Electric Lift Kit att2 General Assembly Parts Diagram

Electric Lift Kit

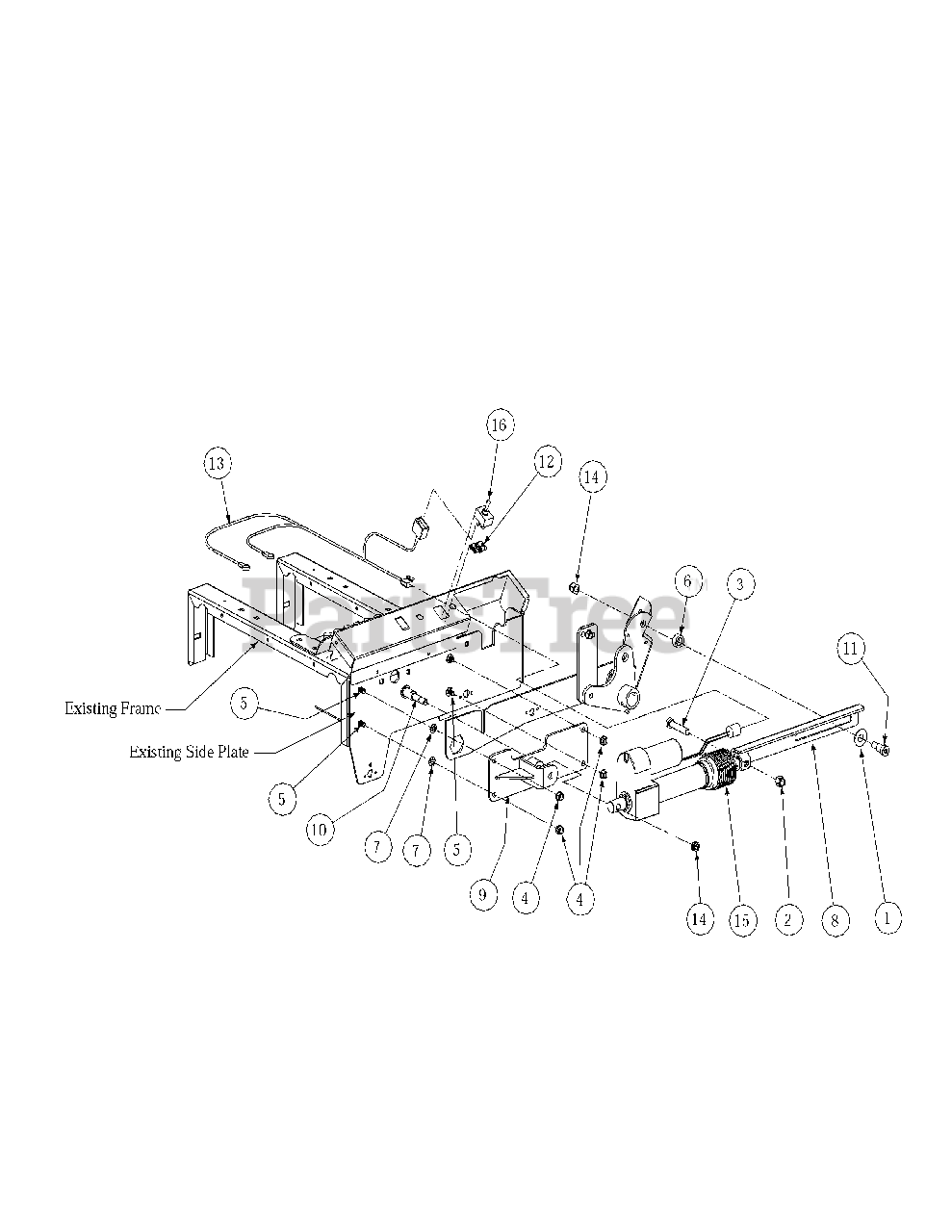

General Assembly Parts Diagram

  • Title

1

Cub Cadet 00002766

Washer, 1-1/2 x 5/8 x .05

$3.49

$

In Stock, only 4 left!

0

2

Cub Cadet 00012428

Nut, 1/2-13, Nylon Insert

$6.99

$

In Stock, only 2 left!

0

3

Cub Cadet 00013894

Hex Head Cap Screw, 1/2-13 x 2-1/2

$

$

Not available

4

Cub Cadet 00022560

Nut, 3/8-16, Hex Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

6

Cub Cadet 01007527

Spacer, .630 ID x 1.06 OD x .440

$12.99

$

In Stock, only 2 left!

0

7

Cub Cadet 01008225

Push Retainer, 3/8
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 01009730

Arm Lift Deck Weldment

$

$

Not available

9

Cub Cadet 01009738

Actuator Mounting Plate

$

$

Not available

10

Cub Cadet 01009740

Pin, Deck Pivot Lift

$

$

Not available

11

Cub Cadet 01009760

Shoulder Screw, 0.625 x .750

$15.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01009761

Label, Deck Lift Up/Down

$

$

Not available

13

Cub Cadet 01010015

Harness Assembly

$

$

Not available

14

Cub Cadet 01010114

Jam Nut, 1/2-13

$

$

Not available

15

Cub Cadet 725-04077

Actuator
(Superseded to 925-04077)

$997.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 725-1053

Toggle Switch, On-Off-On
(Superseded to 925-1053)

$105.99

$

Usually ships in 3-6 days

0
