58355 - Toro Garden Cultivator (SN: 069000001 - 069999999) (1996) FLYWHEEL, STARTER, & CLUTCH ASSEMBLIES Parts Diagram

Garden Cultivator

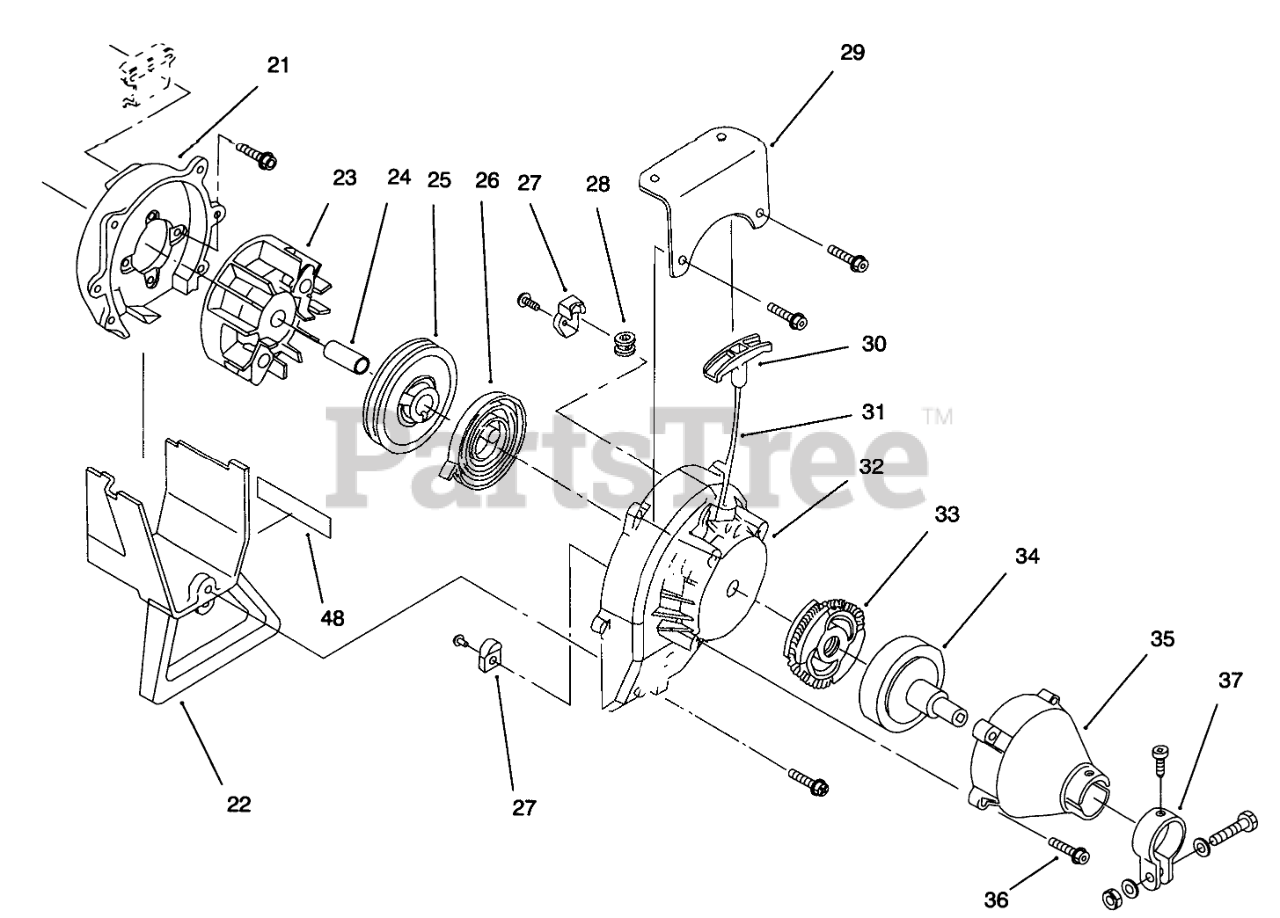

FLYWHEEL, STARTER, & CLUTCH ASSEMBLIES Parts Diagram

  • Title

21

Toro 683065

SHROUD ASM

$78.99

$

Usually ships in 3-6 days

0

22

Toro 683078

Shroud Extension & Stand
(Superseded to 153403)

$52.99

$

Usually ships in 3-6 days

0

23

Toro 180929

FLYWHEEL

$

$

Not available

24

Toro 145918

SPACER

$

$

Not available

25

Toro 683856

RECOIL PULLEY ASM

$

$

Not available

26

Toro 613102

RECOIL SPRING

$24.99

$

Usually ships in 3-6 days

0

27

Toro 153644

PULLEY RETAINER ASM

$

$

Not available

28

Toro 611061

ROPE GUIDE

$

$

Not available

29

Toro 180317

ASM - FUEL TANK GUARD

$

$

Not available

30

Toro 610300

Handle-Pull
(Superseded to 181079)

$16.99

$

Usually ships in 3-6 days

0

31

Toro 613103

ROPE

$

$

Not available

32

Toro 181499

ASSEMBLY - STARTER HSG
(Superseded to 181931)

$

$

Not available

33

Toro 153591

Clutch Rotor Asm.
(Superseded to 181598)

$

$

Not available

34

Toro 153592

CLUTCH DRUM ASM

$

$

Not available

35

Toro 683601

Clutch Cover Asm.
(Superseded to 180098)

$

$

Not available

36

Toro 145888

CLUTCH COVER SCREW ASM

$

$

Not available

37

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

48

Toro 92-3332

Decal-Warning
(Superseded to 95-5084)

$

$

Not available

Toro 180034

KIT - ENGINE HARDWARE

Note: Not illustrated

$

$

Not available

Toro 18001

KIT - ENGINE GASKET

Note: Not illustrated

$

$

Not available

Toro 180530

PISTON RING

Note: Not illustrated

$

$

Not available

Toro 610676

FLYWHEEL KEY (10-PK)

Note: Not illustrated

$

$

Not available
