58355 - Lawn-Boy Garden Cultivator (SN: 890000001 - 899999999) (1998) CARBURETOR, CYLINDER, CRANKCASE & FUEL TANK ASSEMBLIES Parts Diagram

Garden Cultivator

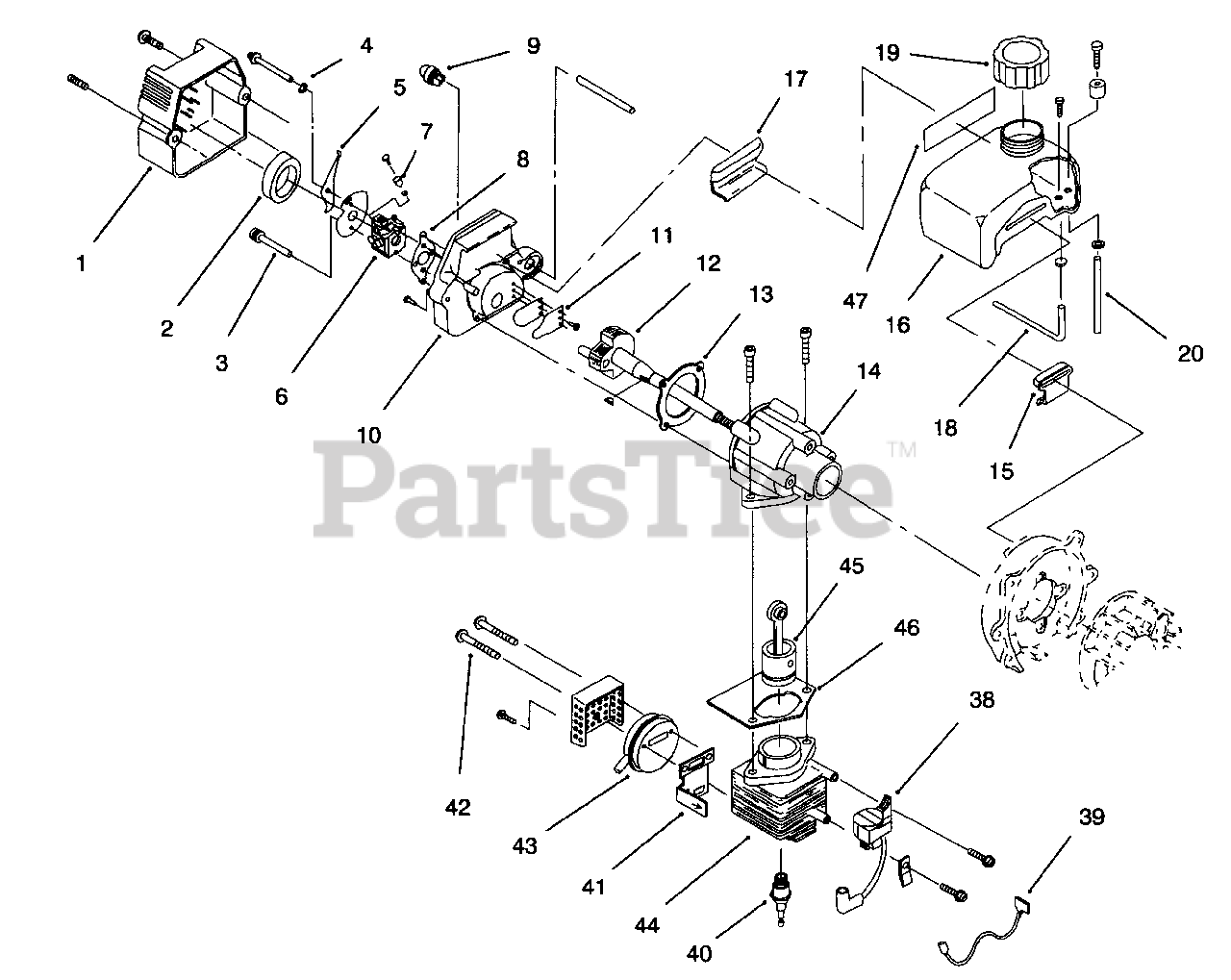

CARBURETOR, CYLINDER, CRANKCASE & FUEL TANK ASSEMBLIES Parts Diagram

  • Title

1

Lawn-Boy 180349

Carburetor/Air Cleaner Asm. (Incl. Ref. #2)

$

$

Not available

2

Lawn-Boy 180350

Air Cleaner Filter

$14.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 180351

Carburetor Mounting Screw Asm.

$

$

Not available

4

Lawn-Boy 180352

Wavey Washer

$

$

Not available

5

Lawn-Boy 180353

Choke Lever and Plate

$

$

Not available

6

Lawn-Boy 180527

Carburetor Asm.
(Superseded to 181621)

$

$

Not available

7

Lawn-Boy 682048

Throttle Adjustment Asm. (Walbro)

$

$

Not available

7

Lawn-Boy 180092

Throttle Adjustment Asm. (Zama)

$

$

Not available

8

Lawn-Boy 610675

Carburetor Gasket

$6.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 683974

Primer and Hose Asm.

$

$

Not available

10

Lawn-Boy 180354

Carburetor Mount Asm. (Incl. Ref. #11-13)
(Superseded to 182063)

$

$

Not available

11

Lawn-Boy 147573

Reed Asm.

$

$

Not available

12

Lawn-Boy 181498

Power Shaft Asm.

$

$

Not available

13

Lawn-Boy 612115

Carburetor Mount Gasket

$

$

Not available

14

Lawn-Boy 180026

Crankcase Service Asm. (Incl. Ref. #12)

$

$

Not available

15

Lawn-Boy 145308

Front Mounting Pad

$

$

Not available

16

Lawn-Boy 181581

Fuel Tank Asm. (Incl. Ref. #21-23)
(Superseded to 180046)

$

$

Not available

17

Lawn-Boy 612134

Rear Mounting Pad

$

$

Not available

18

Lawn-Boy 683976

Return Line Asm.

$

$

Not available

19

Lawn-Boy 180000

Fuel Cap Asm.

$

$

Not available

20

Lawn-Boy 682039

Fuel Line Asm.

$

$

Not available

38

Lawn-Boy 683390

Module Asm.
(Superseded to 181937)

$

$

Not available

39

Lawn-Boy 181580

Wire Lead

$

$

Not available

40

Lawn-Boy 610311

Spark Plug

$3.49

$

In Stock, only 3 left!

0

41

Lawn-Boy 180980

Exhaust Gasket

$7.99

$

In Stock, only 1 left!

0

42

Lawn-Boy 181571

Muffler Mounting Bolt Asm.

$

$

Not available

43

Lawn-Boy 181572

Muffler Asm.
(Superseded to 181984)

$

$

Not available

44

Lawn-Boy 180063

Cylinder Asm.
(Superseded to 181622)

$

$

Not available

45

Lawn-Boy 684449

Piston and Rod Asm.
(Superseded to 753-04367)

$

$

Not available

46

Lawn-Boy 610674

Cylinder Gasket

$

$

Not available

47

Lawn-Boy 92-3334

Decal-Fuel & Oil Mix
(Superseded to 95-5082)

$

$

Not available

Lawn-Boy 153308

Carburetor Repair Kit (Walbro)
(Superseded to 180602)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180090

Carburetor Repair Kit (Zama)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 181069

Gasket-Diaphragm Repair Kit (Walbro)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180091

Gasket-Diaphragm Repair Kit (Zama)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180027

Short Block Asm. (Inc. Ref. #12, 14, 44-46)

Note: Not Illustrated

$

$

Not available
