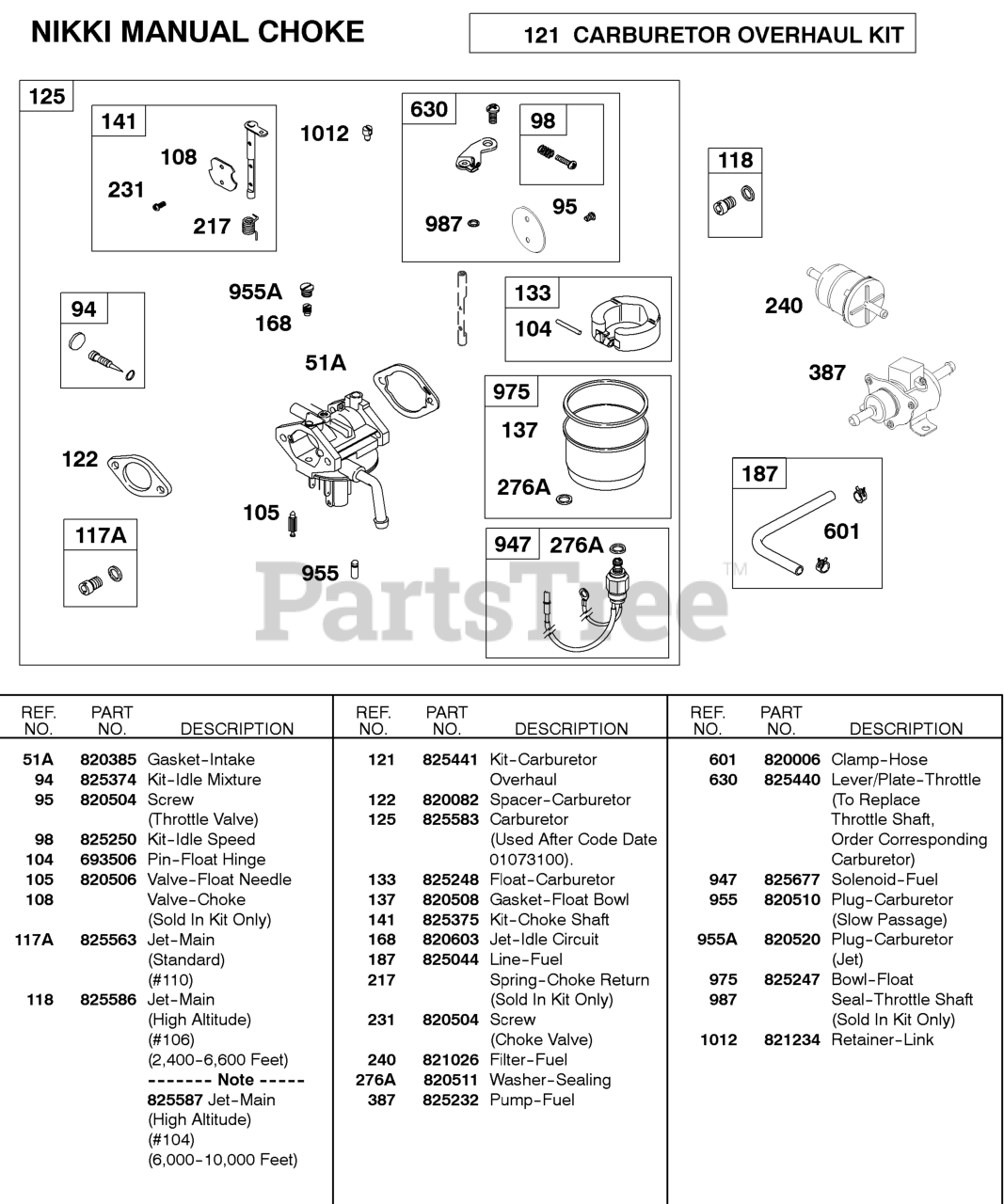

583447-0217-E2 - Briggs & Stratton Horizontal Engine Carburetor, NIKKI Manual Choke Parts Diagram

Horizontal Engine

Carburetor, NIKKI Manual Choke Parts Diagram

  • Title

51A

Briggs & Stratton 820385

Gasket-Intake

$31.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 825374

Kit-Idle Mixture

$18.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 820504

Screw

Note: (Throttle Valve)

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 825250

Kit-Idle Speed

$6.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 693506

Pin-Float Hinge

$5.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 820506

Valve-Float Needle

$24.99

$

Usually ships in 2-12 days

0

108

Valve-Choke

Note: (Sold In Kit Only)

$

$

Not available

117A

Briggs & Stratton 825563

Jet-Main

Note: (Standard) (#110)

$33.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 825587

Jet-Main

Note: (High Altitude) (#104)(6,000-10,000 Feet)

$24.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 825586

Jet-Main

Note: (High Altitude) (#106)(2,400-6,600 Feet)

$22.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 825441

Kit-Carb Overhaul

$232.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 820082

Spacer-Carburetor

$23.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 825583

Carburetor

Note: Used After Code Date 01073100

$806.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 825248

Float-Carburetor

$33.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 820508

Gasket-Float Bowl

$10.99

$

In Stock, only 1 left!

0

141

Briggs & Stratton 825375

Kit-Choke Shaft

$42.99

$

Usually ships in 2-12 days

0

168

Briggs & Stratton 820603

Jet-Idle Circuit

$26.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 825044

Line-Fuel

$10.99

$

Usually ships in 2-12 days

0

217

Spring-Choke Return

Note: (Sold In Kit Only)

$

$

Not available

231

Briggs & Stratton 820504

Screw

Note: (Choke Valve)

$3.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 821026

Filter-Fuel

$20.99

$

Usually ships in 2-12 days

0

276A

Briggs & Stratton 820511

Washer-Sealing

$9.49

$

In Stock, only 1 left!

0

387

Briggs & Stratton 825232

Pump-Fuel

$184.99

$

In Stock, only 2 left!

0

601

Briggs & Stratton 820006

Clamp-Hose

$3.99

$

Usually ships in 2-12 days

0

630

Briggs & Stratton 825440

Lever/Plate-Throttle

Note: (To Replace Throttle Shaft, Order Corresponding Carburetor)

$53.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 825677

Solenoid-Fuel

$328.99

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 820510

Plug-Carburetor

Note: (Slow Passage)

$15.99

$

Usually ships in 2-12 days

0

955A

Briggs & Stratton 820520

Plug-Carburetor

Note: (Jet)

$7.49

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 825247

Bowl-Float

$64.99

$

Usually ships in 2-12 days

0

987

Seal-Throttle Shaft

Note: (Sold In Kit Only)

$

$

Not available

1012

Briggs & Stratton 821234

Retainer-Link

$4.49

$

Usually ships in 2-12 days

0
