58336 - Toro 22" Tiller (SN: 009000001 - 009999999) (1979) ENGINE BRIGGS & STRATTON MODEL 60102-0378-01 2 H.P. TILLER MODEL 58307 Parts Diagram

22" Tiller

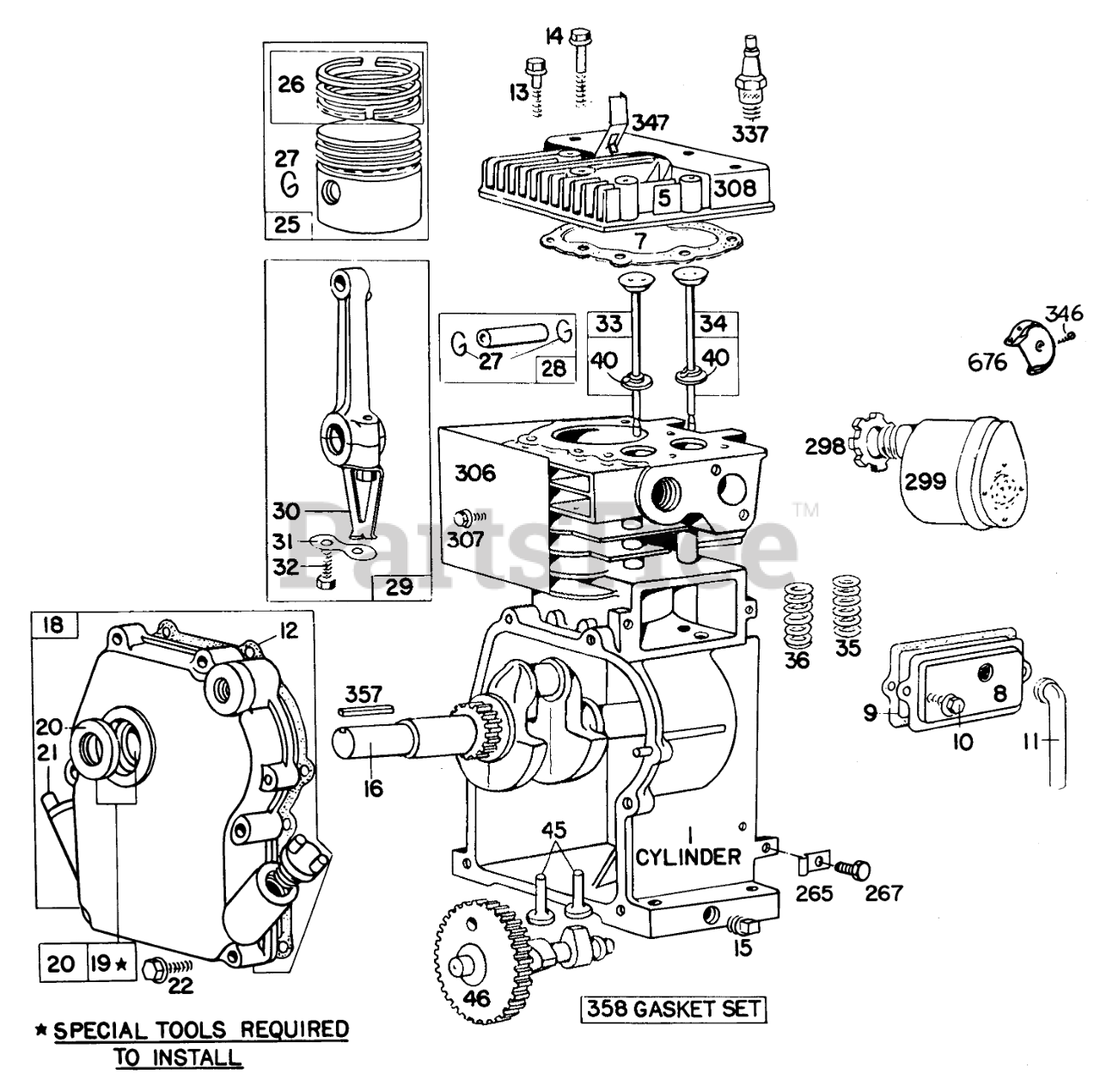

ENGINE BRIGGS & STRATTON MODEL 60102-0378-01 2 H.P. TILLER MODEL 58307 Parts Diagram

  • Title

5

Briggs & Stratton 210812

Head-Cylinder
(Superseded to 213953)

$

$

Not available

7

Briggs & Stratton 27670

Gasket-Cylinder Hd.
(Superseded to 272167)

Note: Included in Gasket Set-Part No. 297275.

$7.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 294178

Breather-Valve Chamber
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 297275.

$3.99

$

In Stock, Qty 14

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 295217

Breather Tube & Spacer

$9.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 27586

Gasket-Crankcase" thick (Standard)
(Superseded to 692218)

Note: Included in Gasket Set-Part No. 297275.

$

$

Not available

Briggs & Stratton 27617

Gasket-Crankcase .005" thick
(Superseded to 270895)

Note: Included in Gasket Set-Part No. 297275.

$9.99

$

In Stock, only 4 left!

0

Briggs & Stratton 27618

Gasket-Crankcase .009" thick
(Superseded to 270896)

Note: Included in Gasket Set-Part No. 297275.

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 93111

Screw-Cylinder Hd.
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 93113

Screw-Cylinder Head
(Superseded to 690912)

$3.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 93448

Plug-Pipe
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 260271

Crankshaft
(Superseded to 494136)

$175.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 294305

Cover Assy.-Crankcase
(Superseded to 699406)

$185.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 89660

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 66768

Plug-Oil
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 295587

Piston Assy.-Std.

$48.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295588

Piston Assy.-.010" O.S.

$60.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295589

Piston Assy. .020" O.S.

$132.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295590

Piston Assy.-.030" O.S.

$42.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 294232

Ring Set (Std.)

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 294224

Ring Set .010" OS.

$

$

Not available

Briggs & Stratton 294225

Ring Set .020" OS.

$64.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 294226

Ring Set .030" OS.

$57.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 3 left!

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 294300

Rod Assy.-Connecting

$70.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 220459

Dipper-Connecting Rod

$6.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 220460

Lock-Connecting Rod Screw
(Superseded to 222282)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Screw, Conn.Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 296676

Valve Exhaust

$23.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 296677

Valve Intake

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 260552

Spring-Valve
(Superseded to 690520)

$5.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 26478

1531A GIL 3 1/2HP T
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 230173

Tappet-Valve
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 210453

Gear-Cam
(Superseded to 793149)

$74.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 221407

Clamp-Cable

$2.49

$

Usually ships in 2-12 days

0

267

Briggs & Stratton 93351

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

298

Briggs & Stratton 220859

Locknut-Muffier
(Superseded to 691720)

$5.49

$

Usually ships in 2-12 days

0

299

Briggs & Stratton 392811

Muffler-Exhaust
(Superseded to 493288)

$36.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 220478

Muffler-Exhaust

$16.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 220581

Cover-Cylinder Head
(Superseded to 223390)

$7.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

347

Briggs & Stratton 220884

Switch-Stop

$11.99

$

In Stock, Qty 6

0

357

Briggs & Stratton 91539

Key
(Superseded to 692191)

$

$

Not available

358

Briggs & Stratton 297275

Gasket Set
(Superseded to 495602)

$

$

Not available

676

Briggs & Stratton 222522

Deflector-Exhaust
(Superseded to 393760)

$9.49

$

Usually ships in 2-12 days

0
