58336 - Toro 22" Tiller (SN: 008000001 - 008999999) (1978) ENGINE BRIGGS & STRATTON MODEL 60102-0378-01 2 H.P. TILLER MODEL 58307 Parts Diagram

22" Tiller

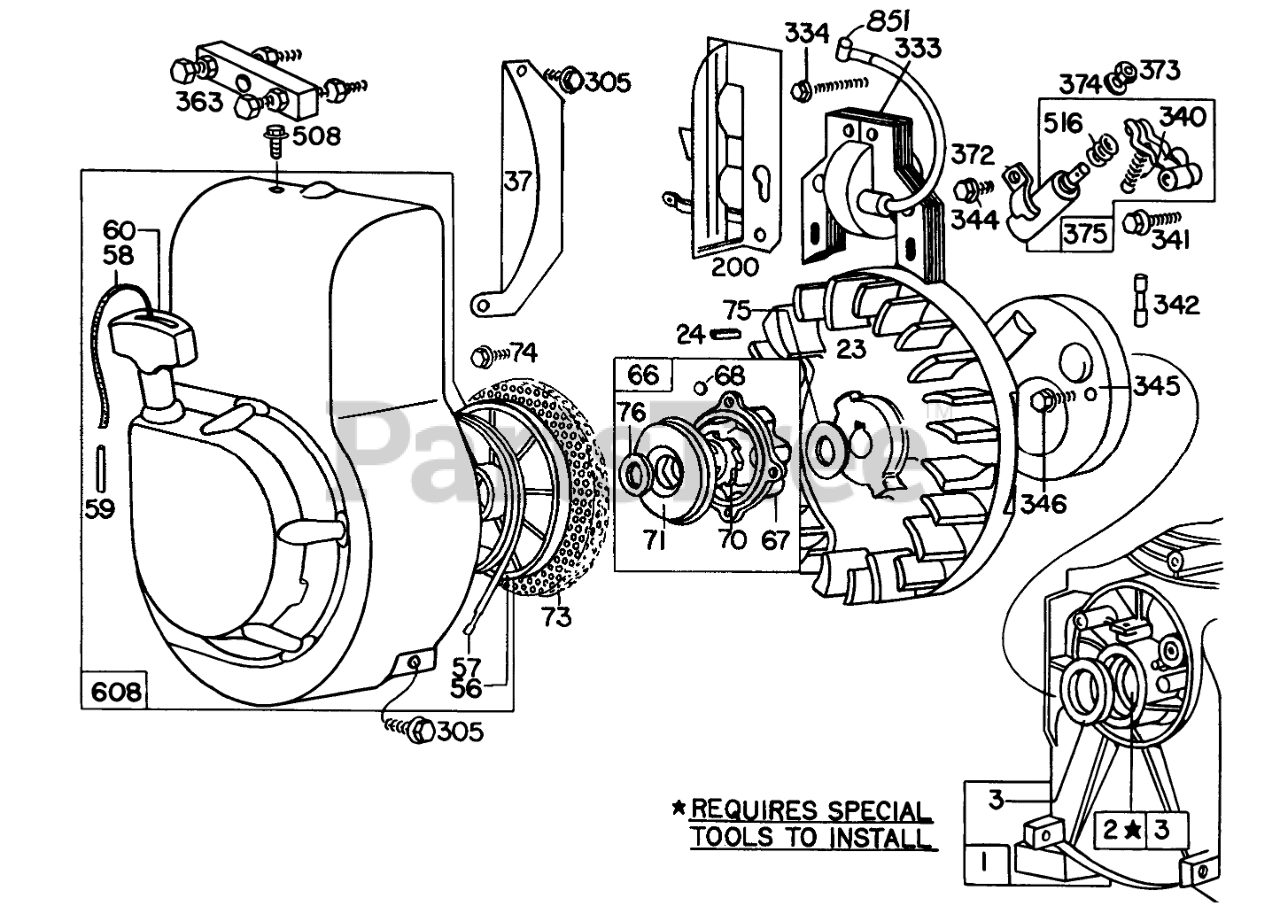

ENGINE BRIGGS & STRATTON MODEL 60102-0378-01 2 H.P. TILLER MODEL 58307 Parts Diagram

  • Title

1

Briggs & Stratton 296561

Cylinder Assembly
(Superseded to 395262)

$228.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 89660

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

23

Briggs & Stratton 296884

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 61760

Key Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 220971

Guard-Flywheel

$11.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 280117

Pulley-Starter
(Superseded to 280439S)

$12.99

$

In Stock, Qty 10

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66694

Rope-Rewind
(Superseded to 66734)

$6.49

$

In Stock, Qty 11

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 10

0

66

Briggs & Stratton 298310

Clutch Assembly
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 211383

Housing
(Superseded to 394897)

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298436

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221661

Screw-Sem
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

200

Briggs & Stratton 297310

Blade-Governor
(Superseded to 498770)

$

$

Not available

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

333

Briggs & Stratton 298502

Armature-Magneto
(Superseded to 591420)

$53.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

340

Briggs & Stratton 26018

Spring Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

344

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 220366

Cover Breaker Pt. & Cond.

$11.99

$

In Stock, only 1 left!

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

372

Briggs & Stratton 220477

Camp-Condenser

$1.49

$

Usually ships in 2-12 days

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

374

Briggs & Stratton 92813

Washer-Lock

$3.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Set

$

$

Not available

508

Briggs & Stratton 93294

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

516

Briggs & Stratton 260374

Spring Connector

$7.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 294259

Starter Assy.-Rewind

$

$

Not available

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0
