58336 - Toro 22" Tiller (SN: 008000001 - 008999999) (1978) ENGINE AND SHROUD ASSEMBLY MODEL 58307 & 58336 Parts Diagram

22" Tiller

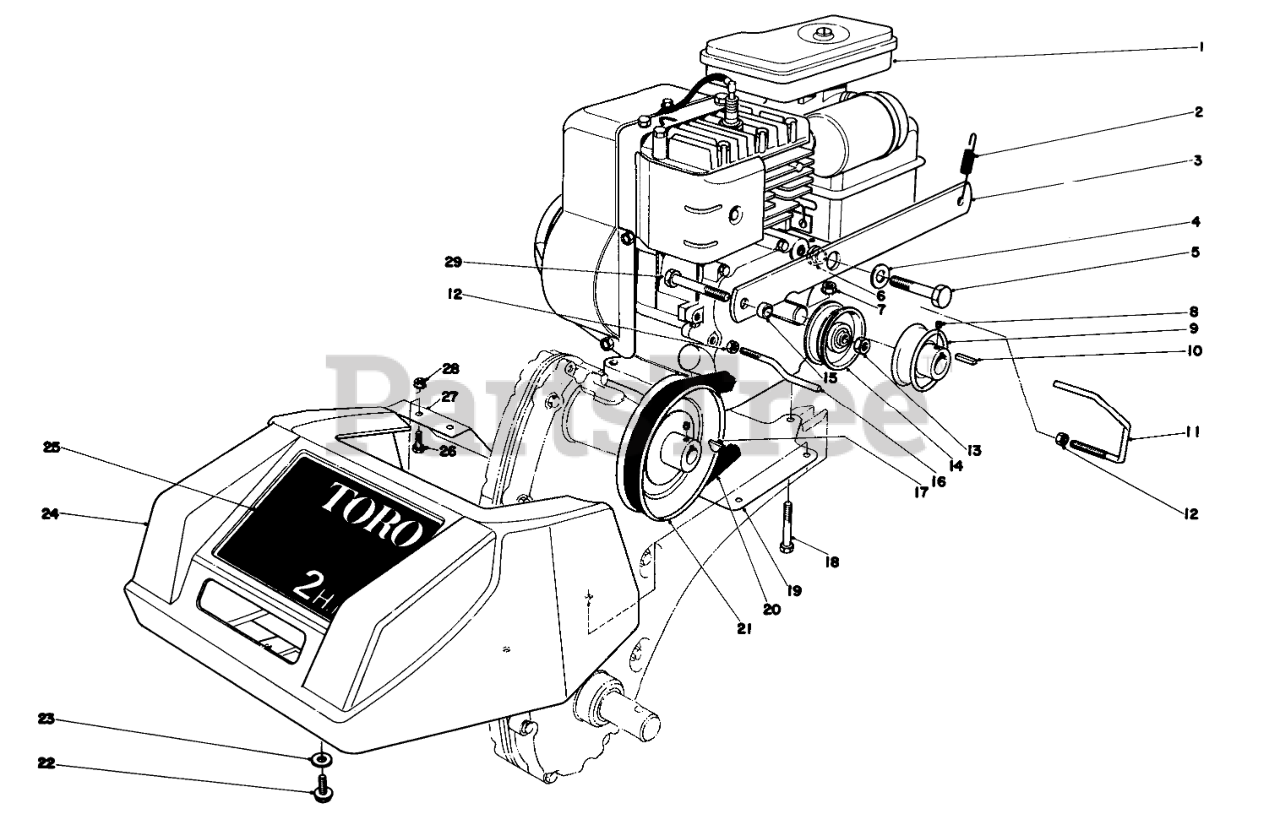

ENGINE AND SHROUD ASSEMBLY MODEL 58307 & 58336 Parts Diagram

  • Title
1

Toro 221-530

Engine (Model 58307)

$

$

Currently unavailable

Toro 221-531

Engine

Note: Not illustrated

$

$

Currently unavailable

2

Toro 26-3730

TENSION SPRING

$

$

Not available

3

Toro 28-3030

Idler Arm

$

$

Not available

4

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

5

Toro 3213-2

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

6

Toro 29-6850

Spacer Idler Arm

$

$

Not available

7

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

8

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

9

Toro 28-2960

Driver Pulley (Model 58307)

$

$

Not available

Toro 28-2970

Driver Pulley

Note: Not illustrated

$

$

Not available

10

Toro 21-5070

KEY-SQUARE

$

$

Not available

11

Toro 29-6650

Belt Guide

$

$

Not available

12

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

13

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

14

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

15

Toro 36-3760

Spacer

$

$

Not available

16

Toro 28-2940

Belt Guide

$

$

Not available

17

Toro 3257-30

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

18

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

19

Toro 36-3750

Mounting Plate Shield

$

$

Not available

20

Toro 28-2990

V-Belt

$

$

Not available

21

Toro 28-2980

Driver Pulley

$

$

Not available

22

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 28-3050

Shroud

$

$

Not available

25

Toro 28-3070

Decal (Model 58307)

$

$

Not available

Toro 28-3060

Decal 4 H.P.

Note: Not illustrated

$

$

Not available

26

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

27

Toro 29-4400

Shield

$

$

Not available

28

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

29

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

Toro 28-8640

Oil Fill Tube

Note: Not illustrated

$

$

Not available
