58336 - Toro 22" Tiller (SN: 007000001 - 007999999) (1977) CHAIN CASE ASSEMBLY MODEL 58307 & 58336 Parts Diagram

22" Tiller

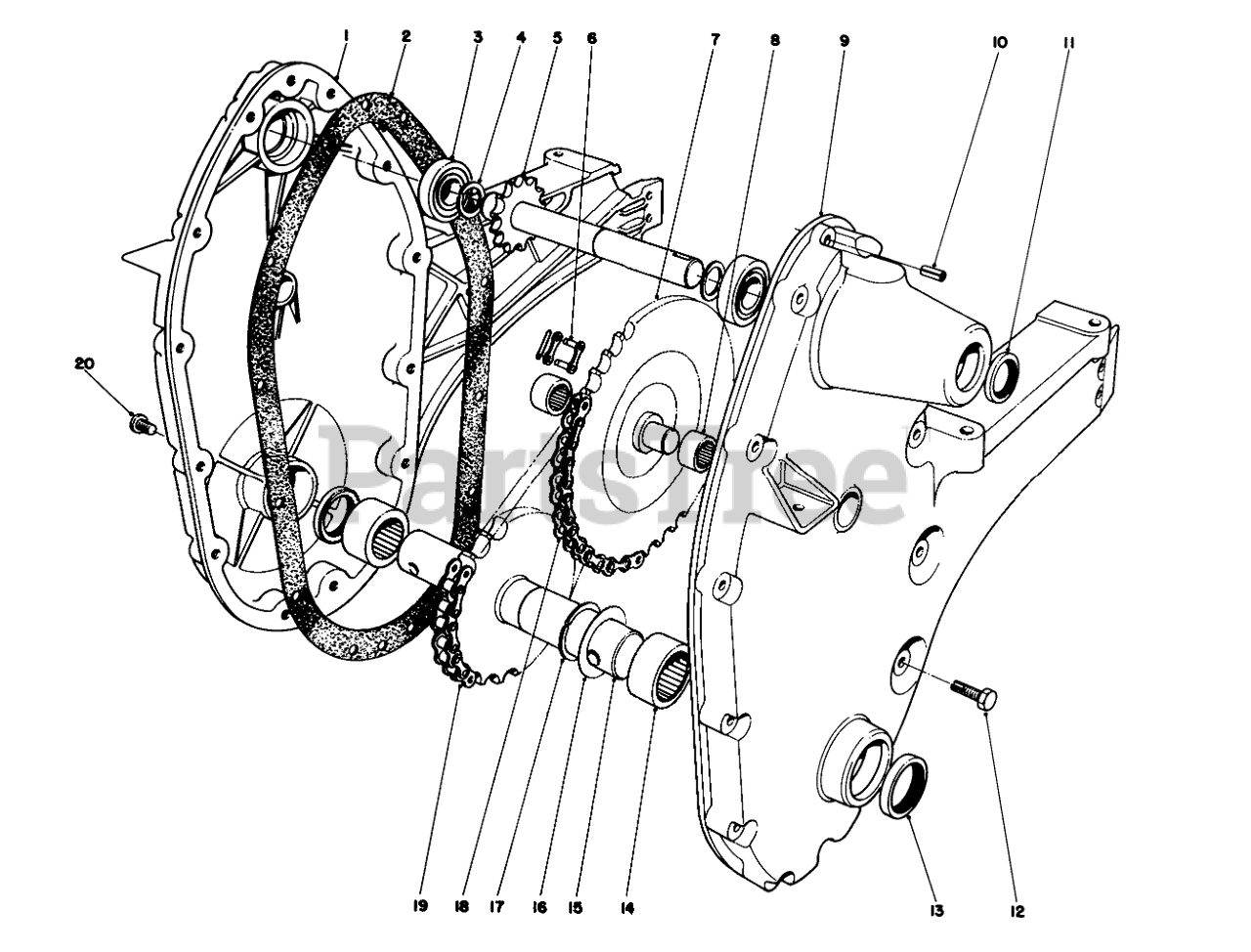

CHAIN CASE ASSEMBLY MODEL 58307 & 58336 Parts Diagram

  • Title
1

Toro 27-9230

Chain Case R H.

$

$

Not available

2

Toro 28-2790

GASKET TILLER

$

$

Not available

3

Toro 251-270

BALL BRG

$

$

Not available

4

Toro 32120-38

5/8X030 EX MED RING

$

$

Not available

5

Toro 28-2770

Upper Shaft

$

$

Not available

6

Toro 2710-31

LINK-CONNECTING, NO. 35

$2.49

$

In Stock, only 1 left!

0

7

Toro 28-2740

Sprocket Cluster

$

$

Not available

8

Toro 252-90

NEEDLE BRG

$

$

Not available

9

Toro 27-9240

Chain Case L.H.

$

$

Not available

10

Toro 32121-11

PIN-ROLL

$0.99

$

In Stock, only 2 left!

0

11

Toro 253-61

SEAL-OIL

$10.99

$

Usually ships in 3-6 days

0

12

Toro 32104-97

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

13

Toro 7-0045

SEAL-OIL

$17.99

$

Usually ships in 3-6 days

0

14

Toro 252-91

NEEDLE BRG

$32.99

$

Usually ships in 3-6 days

0

15

Toro 28-2720

Tine Shaft
(Superseded to 36-4660)

$

$

Not available

16

Toro 256-260

Washer
(Superseded to 9547)

$6.49

$

Usually ships in 3-6 days

0

17

Toro 32120-14

Snap Ring

$

$

Not available

18

Toro 28-2780

Roller Chain

$

$

Not available

19

Toro 28-2730

Roller Chain

$

$

Not available

20

$

$

Not available

Toro 25-91

50 Decal-Serial Replacement

Note: Not illustrated

$

$

Currently unavailable
