58336 - Toro 22" Tiller (SN: 007000001 - 007999999) (1977) CHAIN CASE AND TINE ASSEMBLY MODEL 58336 Parts Diagram

22" Tiller

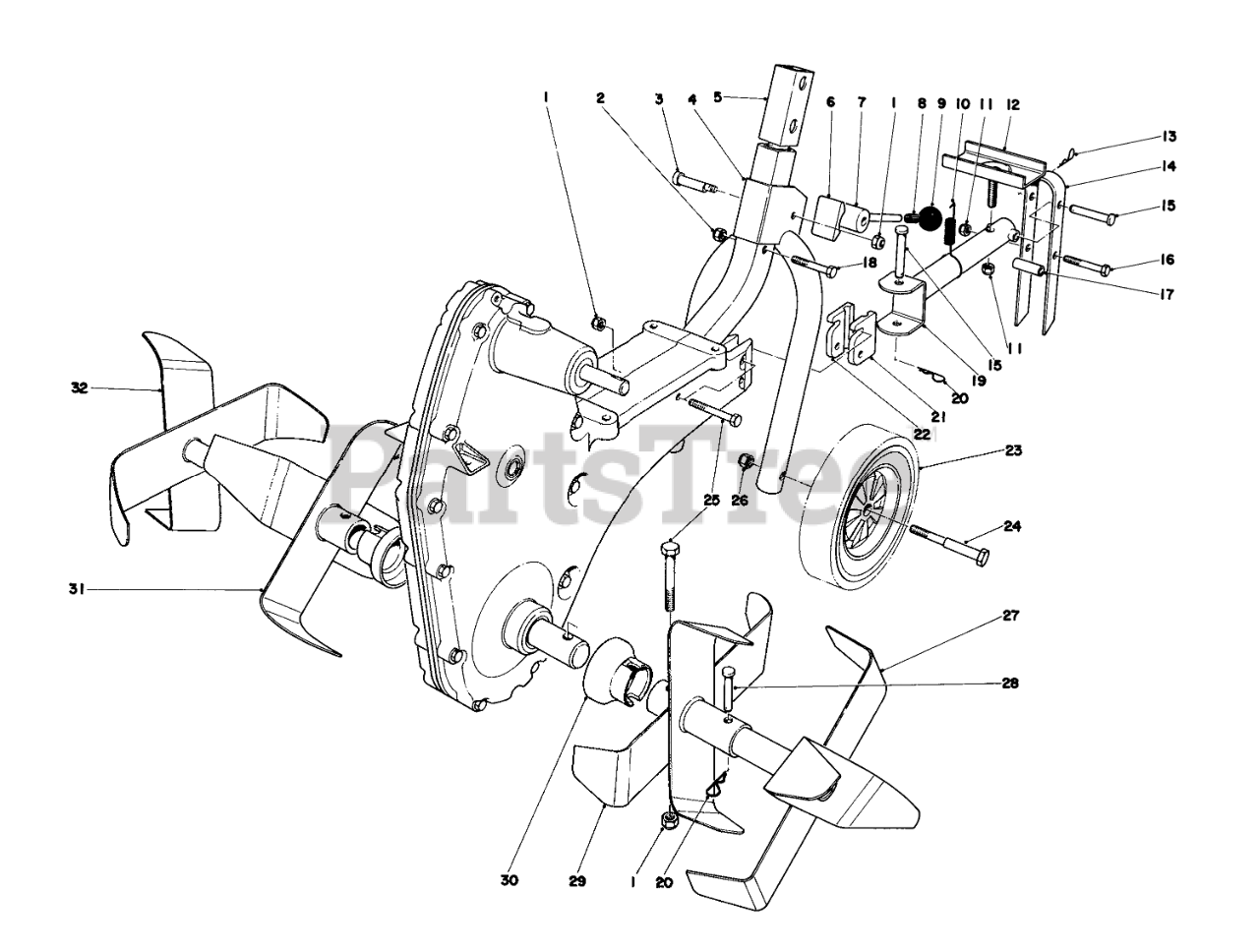

CHAIN CASE AND TINE ASSEMBLY MODEL 58336 Parts Diagram

  • Title

1

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

2

Toro 121534

Locknut

$

$

Currently unavailable

3

Toro 28-3150

Cam Pivot

$

$

Not available

4

Toro 28-3080

Wheel Support

$

$

Not available

5

Toro 28-5370

Lower Handle

$

$

Not available

6

Toro 28-3110

Cam Shoe

$

$

Not available

7

Toro 28-3120

Cam Lever

$

$

Not available

8

Toro 233-44

Tolerance Ring

$

$

Not available

9

Toro 233-43

Knob

$

$

Not available

10

Toro 28-4870

Spring

$

$

Not available

11

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 8

0

12

Toro 28-3230

Drawbar Stop

$

$

Not available

13

Toro 3290-290

HAIRPIN COTTER

$

$

Not available

14

Toro 28-3220

Dragbar

$

$

Not available

15

Toro 283-47

PIN-CLEVIS

$

$

Not available

16

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

17

Toro 28-3190

Spacer

$

$

Not available

18

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

19

Toro 28-3180

Drawbar

$

$

Not available

20

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

21

Toro 28-281

Pivot Block L.H.

$

$

Currently unavailable

22

Toro 28-2800

Pivot Block R.H.
(Superseded to 33-1030)

$

$

Not available

23

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

24

Toro 28-3160

Wheel Bolt

$

$

Not available

25

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

26

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

27

Toro 28-2900

Outboard Tine L.H.

$

$

Not available

28

Toro 283-18

CLEVIS

$1.49

$

Usually ships in 3-6 days

0

29

Toro 28-2910

Inboard Tine L.H.

$

$

Not available

30

Toro 28-2920

Dust Cover

$

$

Not available

31

Toro 28-2860

Inboard Tine R.H.

$

$

Not available

32

Toro 28-2820

Outboard Tine R.H.

$

$

Not available
