58336 - Toro 22" Tiller (SN: 002000001 - 002999999) (1982) CHAIN CASE AND TINE ASSEMBLY Parts Diagram

22" Tiller

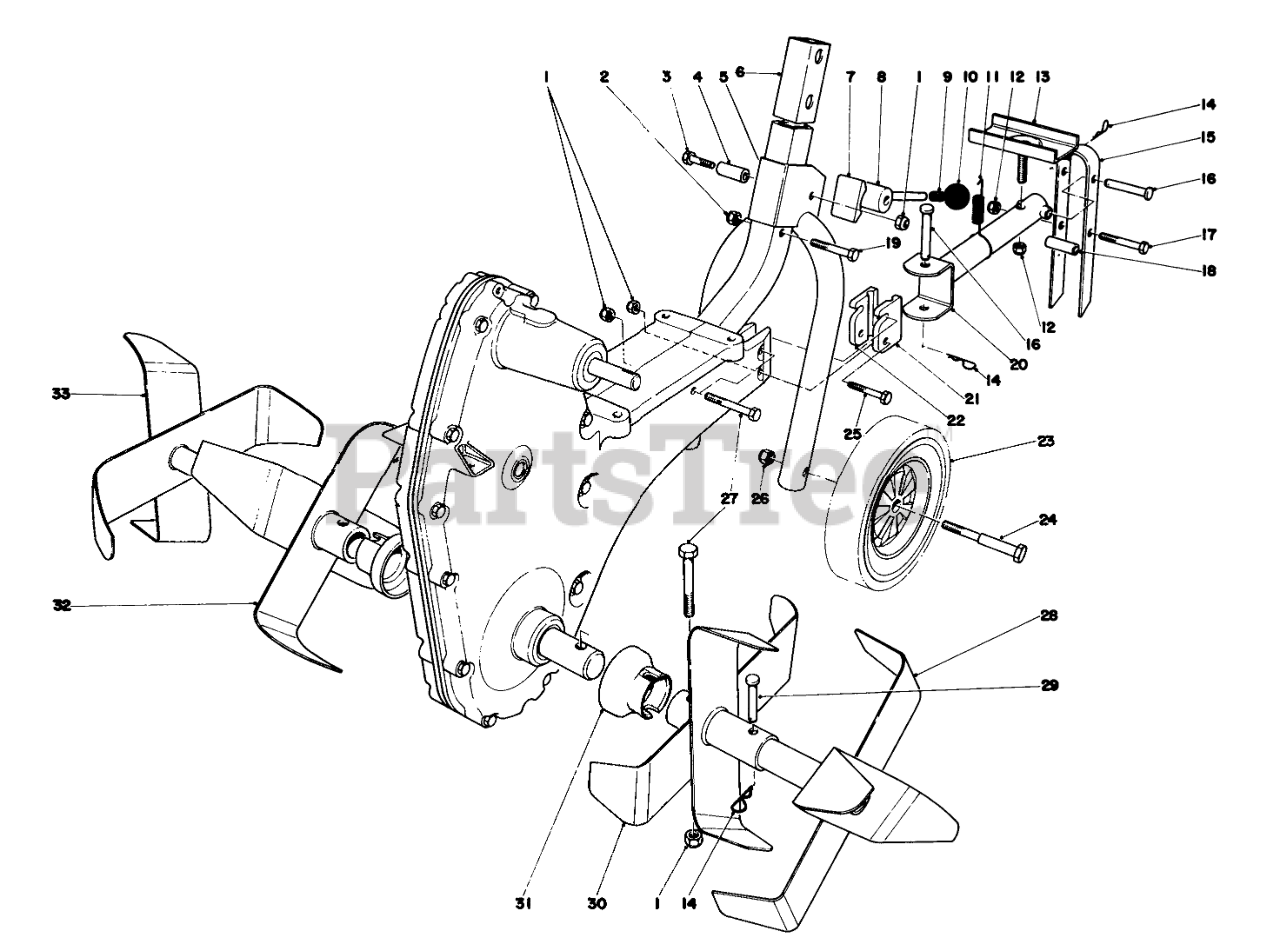

CHAIN CASE AND TINE ASSEMBLY Parts Diagram

  • Title
1

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

2

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

3

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

4

Toro 36-3920

CAM SPACER

$

$

Not available

5

Toro 28-3080

Wheel Support

$

$

Not available

6

Toro 28-5370

Lower Handle

$

$

Not available

7

Toro 28-3110

Cam Shoe

$

$

Not available

8

Toro 36-3900

Cam Lever

$

$

Not available

9

Toro 233-44

Tolerance Ring

$

$

Not available

10

$

$

Not available

11

Toro 284870

Spring

$

$

Currently unavailable

12

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

13

Toro 28-3230

Drawbar Stop

$

$

Not available

14

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

15

Toro 28-3220

Dragbar

$

$

Not available

16

Toro 283-52

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

17

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

18

Toro 28-3190

Spacer

$

$

Not available

19

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

20

Toro 28-3180

Drawbar

$

$

Not available

21

Toro 33-1020

LH PIVOT BLOCK

$

$

Not available

22

Toro 33-1030

Pivot Block R.H.

$

$

Not available

23

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

24

Toro 28-3160

Wheel Bolt

$

$

Not available

25

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

26

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

27

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 28-2900

Outboard Tine L.H.

$

$

Not available

29

Toro 283-18

CLEVIS

$1.49

$

Usually ships in 3-6 days

0

30

Toro 28-2910

Inboard Tine L.H.

$

$

Not available

31

Toro 28-2920

Dust Cover

$

$

Not available

32

Toro 28-2860

Inboard Tine R.H.

$

$

Not available

33

Toro 28-2820

Outboard Tine R.H.

$

$

Not available
