58307 - Toro 22" Tiller (SN: 008000001 - 008999999) (1978) HANDLE ASSEMBLY MODEL 58307 & 58336 Parts Diagram

22" Tiller

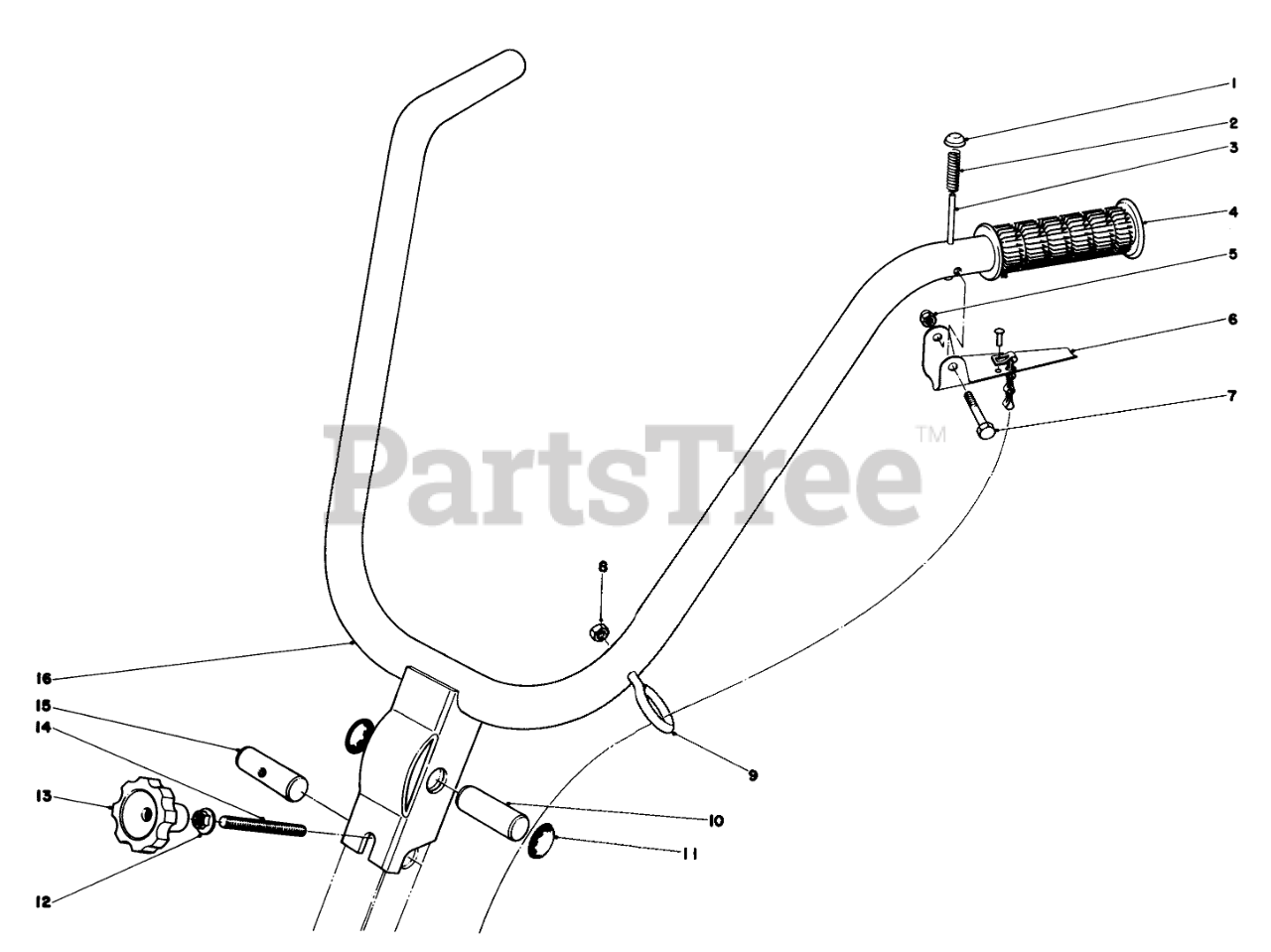

HANDLE ASSEMBLY MODEL 58307 & 58336 Parts Diagram

  • Title
1

Toro 32111-9

Push-On

$

$

Not available

2

Toro 5-4723

COMPRESSION SPRING

$14.99

$

Usually ships in 3-6 days

0

3

Toro 26-3640

LOCK PIN

$

$

Not available

4

Toro 235-21

GRIP-HANDLE

$21.99

$

Usually ships in 3-6 days

0

5

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

6

Toro 28-4930

Lift Bail Chain Assembly

$

$

Not available

7

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

8

Toro 32153-4

NUT-HEX, SIDE DEFORM

$0.99

$

Usually ships in 3-6 days

0

9

Toro 36-3690

Eye Bolt

$

$

Not available

10

Toro 28-5000

PIVOT PIN

$

$

Not available

11

Toro 3290-406

PUSH-ON

$

$

Not available

12

Toro 32128-26

NUT-FLANGE

$6.49

$

Usually ships in 3-6 days

0

13

$17.99

$

In Stock, only 3 left!

0

14

$

$

Not available

15

Toro 36-3680

Pin Handle

$

$

Not available

16

Toro 36-3670

HANDLE BAR WA

$

$

Not available
