58307 - Toro 22" Tiller (SN: 008000001 - 008999999) (1978) ENGINE BRIGGS & STRATTON MODEL 111202-0131-01 4 H.P. TILLER MODEL 58336 Parts Diagram

22" Tiller

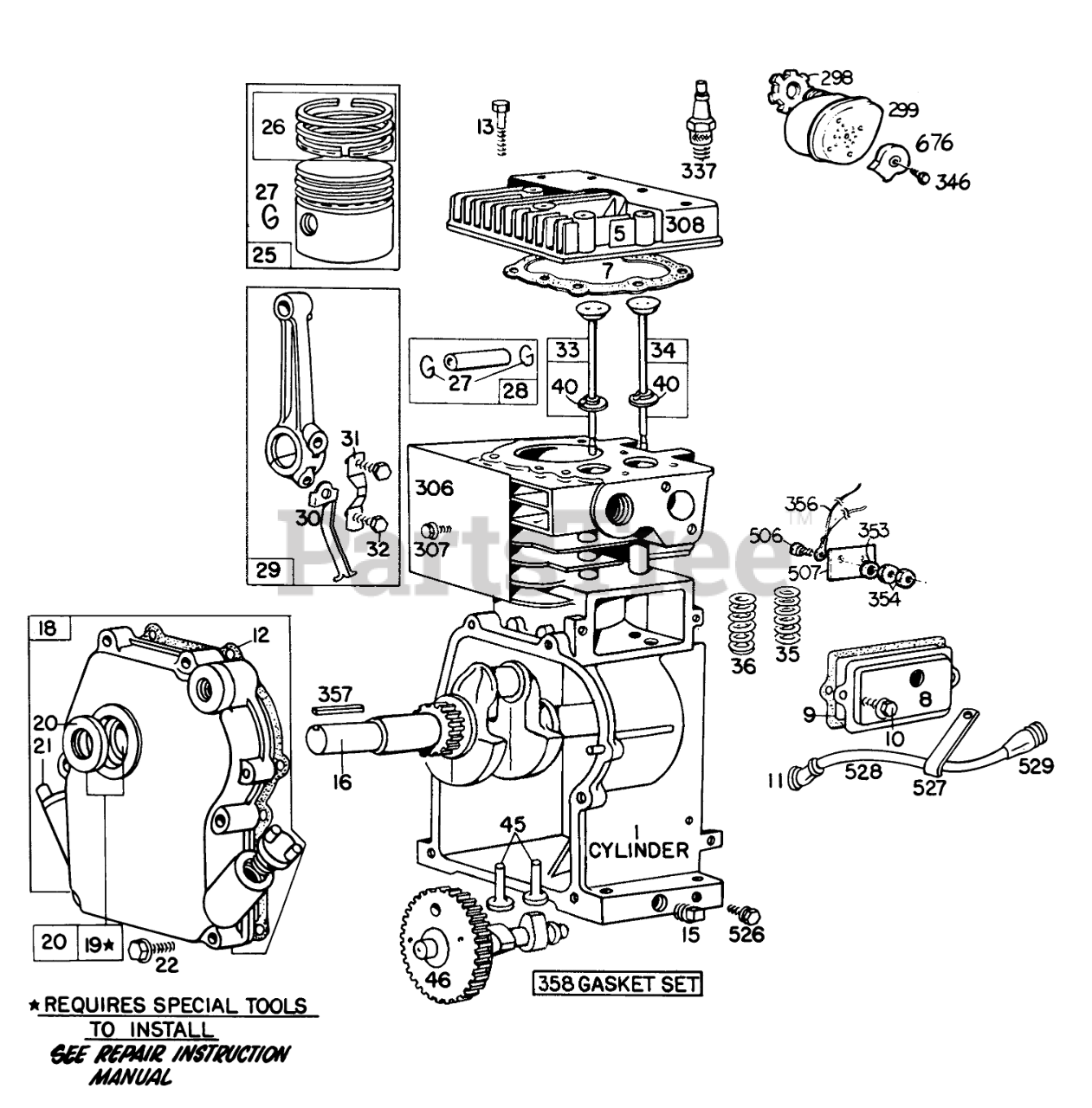

ENGINE BRIGGS & STRATTON MODEL 111202-0131-01 4 H.P. TILLER MODEL 58336 Parts Diagram

  • Title

1

Briggs & Stratton 392857

Cylinder Assembly

$186.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 211851

Head-Cylinder
(Superseded to 5021185X1)

$

$

Not available

7

Briggs & Stratton 270836

Gasket-Cylinder Hd,
(Superseded to 272171)

Note: Included in Gasket Set-Part No. 392856

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 294178

Breather-Valve Chamber
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 392856

$3.99

$

In Stock, Qty 13

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 66578

Grommet
(Superseded to 692187)

$4.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 270833

Gasket-Crankcase-.015" thick
(Superseded to 692218)

Note: Included in Gasket Set-Part No. 392856

$

$

Not available

Briggs & Stratton 270895

Gasket-Crankcase .005"

Note: Included in Gasket Set-Part No. 392856

$9.99

$

In Stock, only 3 left!

0

Briggs & Stratton 270896

Gasket-Crankcase .009"

Note: Included in Gasket Set-Part No. 392856

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 93111

Screw-Cylinder Hd.
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 93448

Plug-Pipe
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 261414

Crankshaft
(Superseded to 493716)

$136.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 392974

Cover Assembly-Crankcase
(Superseded to 699406)

$185.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

21

Briggs & Stratton 66768

Plug-Oil
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 391650

Piston Assembly-Std.

$63.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391651

Piston Assy.-.010" O.S.

$37.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391652

Piston Assy.-.020" O.S.

$37.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391653

Piston Assy.-.030" O.S.

$110.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391654

Ring Set-Std.Piston

$

$

Not available

Briggs & Stratton 391656

Ring Set-.010" O.S. Piston

$22.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391658

Ring Set-.020" O.S. Piston

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391660

Ring Set-.030" O.S. Piston

$27.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 391649

Pin Assembly-Piston-Std.

$3.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 392939

Rod Assembly-Connecting

$50.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 220670

Dipper-Conn. Rod
(Superseded to 691719)

$7.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222390

Lock-Connecting Rod Screw
(Superseded to 222282)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 93670

Screw-Connecting Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 212004

Valve-Exhaust

$31.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 261233

Valve Intake

$

$

Not available

35

Briggs & Stratton 260552

Spring-Valve
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

36

Briggs & Stratton 26478

1531A GIL 3 1/2HP T
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 261250

Tappet-Valve

$8.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 392171

Gear-Cam
(Superseded to 492550)

$55.99

$

Usually ships in 2-12 days

0

298

Briggs & Stratton 220859

Locknut-Muffier
(Superseded to 691720)

$5.49

$

Usually ships in 2-12 days

0

299

Briggs & Stratton 392811

Muffler-Exhaust
(Superseded to 493288)

$36.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 222681

Shield-Cylinder

$3.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 222679

Cover-Cylinder Head

$3.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

353

Briggs & Stratton 92791

Washer-Lock
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

356

Briggs & Stratton 392074

Wire-Ground
(Superseded to 396585)

$6.99

$

Usually ships in 2-12 days

0

357

Briggs & Stratton 91539

Key
(Superseded to 692191)

$

$

Not available

358

Briggs & Stratton 392856

Gasket Set
(Superseded to 397147)

$59.99

$

Usually ships in 2-12 days

0

506

Briggs & Stratton 90200

Screw-Terminal

$3.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 66895

InsuIator

$4.99

$

In Stock, only 2 left!

0

526

Briggs & Stratton 93343

Screw
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

527

Briggs & Stratton 221279

Clamp-Breather

$8.49

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 230634

Tube-Breather

$8.49

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 67608

Grommet-Breather Tube

$

$

Not available

676

Briggs & Stratton 222522

Deflector-Exhaust
(Superseded to 393760)

$9.49

$

Usually ships in 2-12 days

0
