58307 - Toro 22" Tiller (SN: 008000001 - 008999999) (1978) CHAIN CASE AND TINE ASSEMBLY MODEL 58307 Parts Diagram

22" Tiller

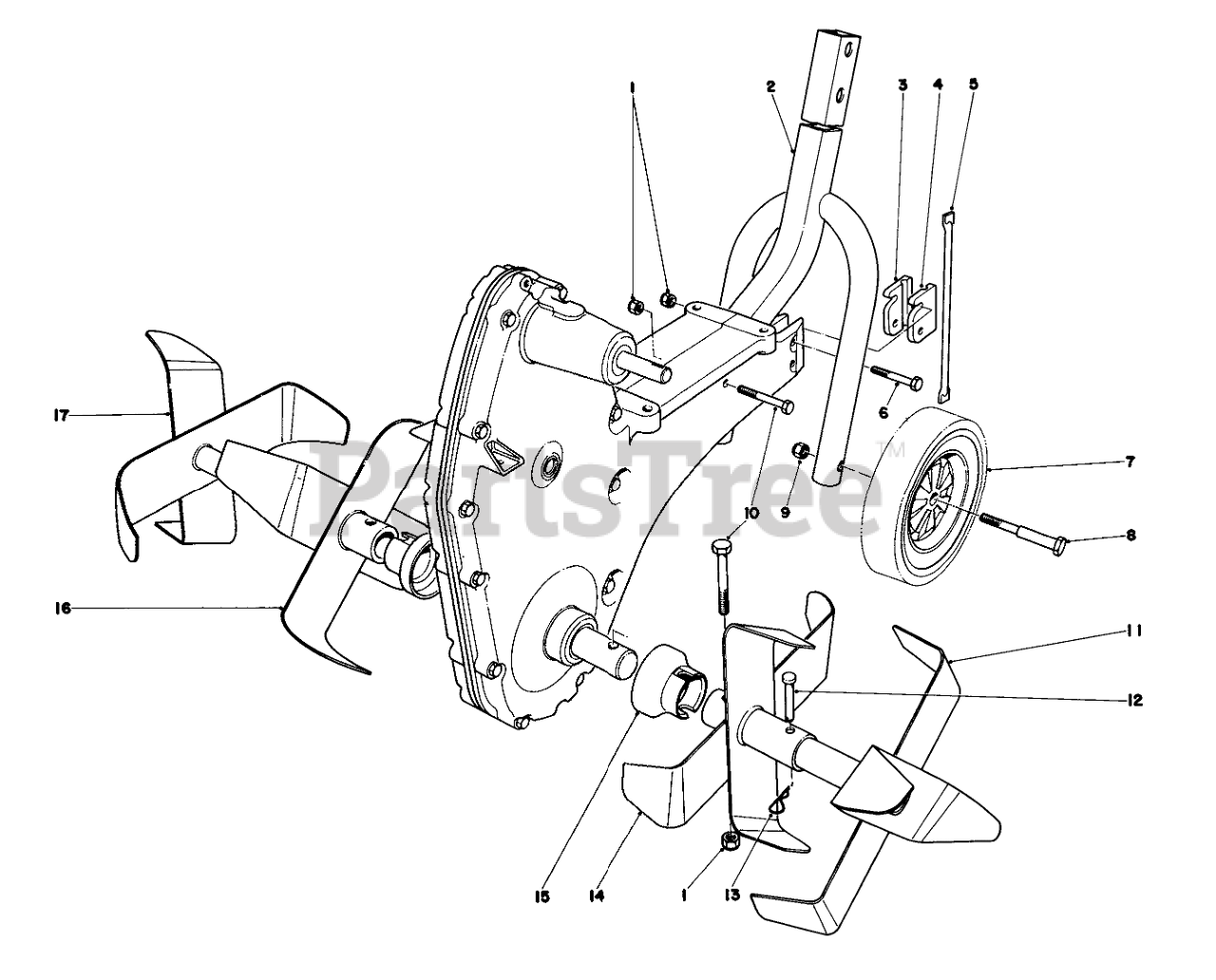

CHAIN CASE AND TINE ASSEMBLY MODEL 58307 Parts Diagram

  • Title

1

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

2

Toro 28-4980

Lower Handle

$

$

Not available

3

Toro 33-1030

Pivot Block R.H.

$

$

Not available

4

Toro 33-1020

LH PIVOT BLOCK

$

$

Not available

5

Toro 28-4880

Drag Rod

$

$

Not available

6

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

7

Toro 27-6210

WHEEL TIRE ASM 7 IN

$

$

Not available

8

Toro 28-3160

Wheel Bolt

$

$

Not available

9

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

10

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

11

Toro 28-2900

Outboard Tine L.H.

$

$

Not available

12

Toro 283-18

CLEVIS

$1.49

$

Usually ships in 3-6 days

0

13

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

14

Toro 28-2910

Inboard Tine L.H.

$

$

Not available

15

Toro 28-2920

Dust Cover

$

$

Not available

16

Toro 28-2860

Inboard Tine R.H.

$

$

Not available

17

Toro 28-2820

Outboard Tine R.H.

$

$

Not available
