58307 - Toro 22" Tiller (SN: 007000001 - 007999999) (1977) ENGINE BRIGGS & STRATTON MODEL 60102-0378-01 2 H.P. TILLER MODEL 58307 Parts Diagram

22" Tiller

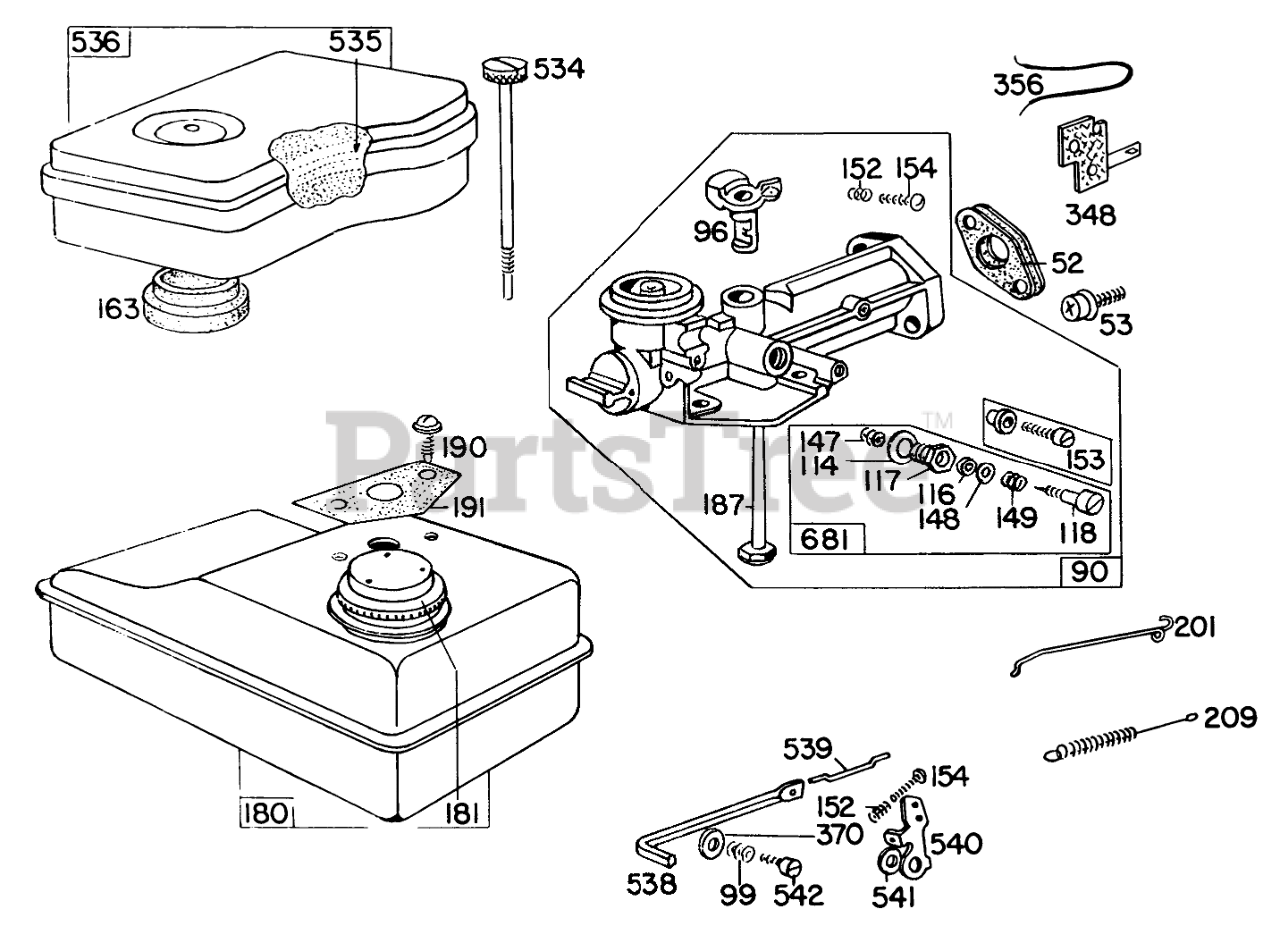

ENGINE BRIGGS & STRATTON MODEL 60102-0378-01 2 H.P. TILLER MODEL 58307 Parts Diagram

  • Title

52

27355 Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 297275

$

$

Not available

53

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 391338

Carburetor Assembly
(Superseded to 495821)

$

$

Not available

96

Briggs & Stratton 210719

Throttle-Carburetor

$17.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 65787

Gasket-Needle Valve

$3.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 65978

Packing-Needle
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 23431

Nut-Needle Valve
(Superseded to 5023431)

$1215.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 23433

Valve-Needle
(Superseded to 690266)

$9.49

$

In Stock, only 3 left!

0

147

Briggs & Stratton 23432

Seat-Needle Valve
(Superseded to 5023432)

$683.99

$

In Stock, only 1 left!

0

148

Briggs & Stratton 22235

Washer-Needle Valve
(Superseded to 690257)

$4.99

$

In Stock, only 1 left!

0

149

Briggs & Stratton 26336

Spring Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, only 4 left!

0

152

Briggs & Stratton 260575

Spring-Adjustment
(Superseded to 691783)

$7.99

$

In Stock, Qty 10

0

153

Briggs & Stratton 298031

Screw-Carburetor Lever

$4.99

$

Usually ships in 2-12 days

0

154

Briggs & Stratton 92634

Screw-Round Head
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 27870

Gasket-Air Cleaner Mounting

$16.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 291834

Tank Assembly-Fuel
(Superseded to 399390)

$

$

Not available

181

Briggs & Stratton 298425

Cap-Fuel Tank
(Superseded to 493982S)

$

$

Not available

187

Briggs & Stratton 296476

Pipe-Fuel

$10.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 93341

Screw-Fuel Tank Mtg.
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 27404

Gasket-Fuel Tank Mtg.

Note: Included in Gasket Set-Part No. 297275

$6.49

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260040

Link-Governor
(Superseded to 261662)

$7.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260041

Spring-Governor
(Superseded to 692205)

$6.99

$

In Stock, only 1 left!

0

348

Briggs & Stratton 296110

Plate Assembly-Stop Switch
(Superseded to 691941)

$152.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 391115

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

370

Briggs & Stratton 66432

Washer-Plain
(Superseded to 691607)

$5.49

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 93322

Screw-Air Cleaner

$5.99

$

In Stock, Qty 8

0

535

Briggs & Stratton 27987

Element-Air Cleaner
(Superseded to 27987S)

$6.99

$

In Stock, Qty 9

0

536

Briggs & Stratton 296767

Cleaner Assy.-Air

$90.99

$

Usually ships in 2-12 days

0

538

Briggs & Stratton 260683

Rod-Speed Control
(Superseded to 691787)

$

$

Not available

539

Briggs & Stratton 260684

Link-Rod
(Superseded to 691788)

$9.49

$

Usually ships in 2-12 days

0

540

Briggs & Stratton 220678

Lever-Speed Adjuster
(Superseded to 394029)

$8.49

$

Usually ships in 2-12 days

0

541

Briggs & Stratton 22398

Washer
(Superseded to 5022398)

$3.49

$

Usually ships in 2-12 days

0

542

Briggs & Stratton 91359

Screw-Machine, Fil. Hd.
(Superseded to 690278)

$3.99

$

In Stock, only 1 left!

0

681

Briggs & Stratton 299059

Needle Valve Kit

$33.99

$

In Stock, only 1 left!

0
