58307 - Toro 22" Tiller (SN: 007000001 - 007999999) (1977) ENGINE AND SHROUD ASSEMBLY MODEL 58307 & 58336 Parts Diagram

22" Tiller

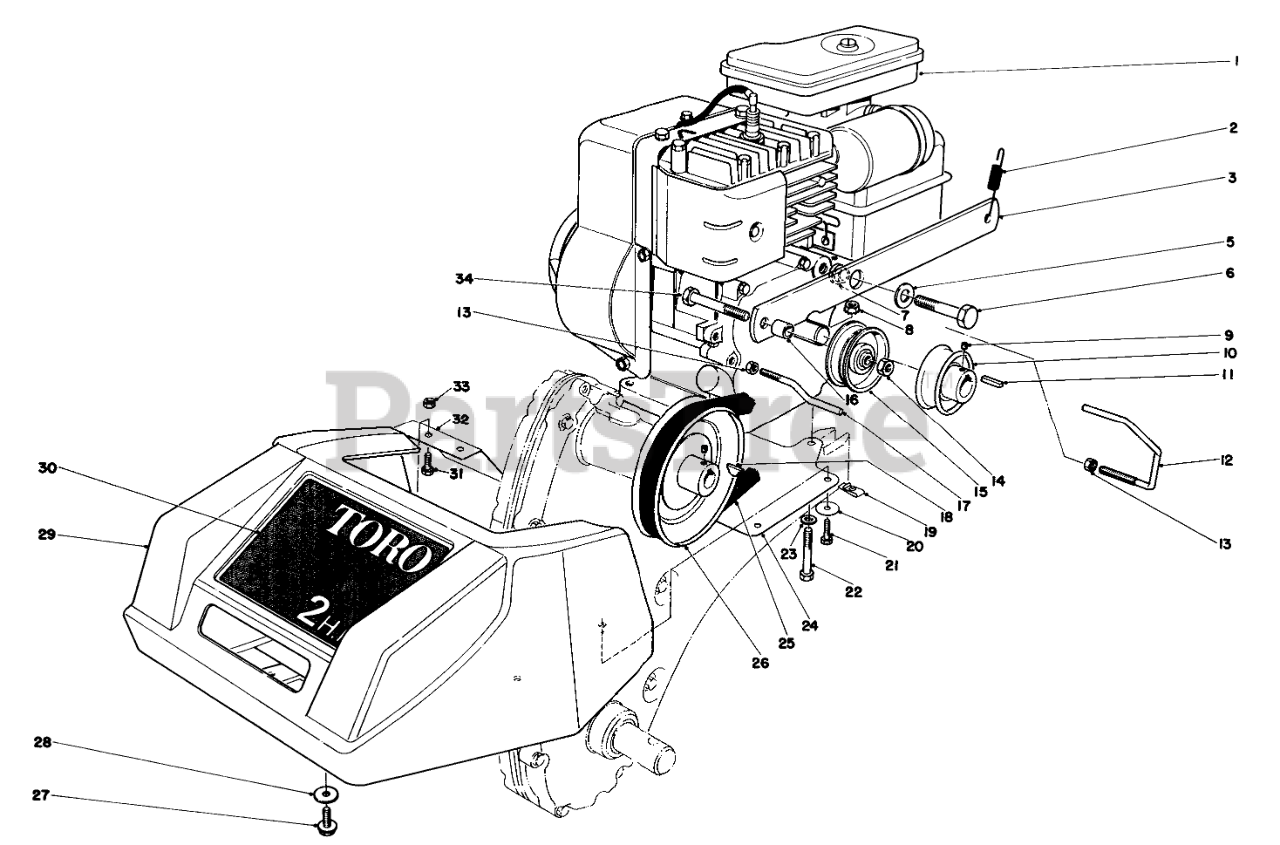

ENGINE AND SHROUD ASSEMBLY MODEL 58307 & 58336 Parts Diagram

  • Title
1

Toro 221-530

Engine (Model 58307)

$

$

Currently unavailable

Toro 221-531

Engine

Note: Not illustrated

$

$

Currently unavailable

2

Toro 26-3730

TENSION SPRING

$

$

Not available

3

Toro 28-3030

Idler Arm

$

$

Not available

5

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

6

Toro 3213-3

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

7

Toro 29-6850

Spacer Idler Arm

$

$

Not available

8

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

9

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

10

Toro 28-2960

Driver Pulley (Model 58307)

$

$

Not available

Toro 28-2970

Driver Pulley

Note: Not illustrated

$

$

Not available

11

Toro 21-5070

KEY-SQUARE

$

$

Not available

12

Toro 29-6650

Belt Guide

$

$

Not available

13

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

14

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

15

Toro 34244

Idler Pulley

$

$

Currently unavailable

16

Toro 28-4380

Spacer

$

$

Currently unavailable

17

Toro 28-2940

Belt Guide

$

$

Not available

18

Toro 3257-30

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

19

Toro 3290-277

NUT-SPEED

$0.99

$

Usually ships in 3-6 days

0

20

Toro 5-0774

WASHER CONTROL PIVOT
(Superseded to 3256-61)

$2.99

$

In Stock, only 2 left!

0

21

$0.99

$

In Stock, Qty 20+

0

22

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 28-3040

Mtg. Plate-Shroud

$

$

Currently unavailable

25

Toro 28-2990

V-Belt

$

$

Not available

26

Toro 28-2980

Driver Pulley

$

$

Not available

27

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

28

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 28-3050

Shroud

$

$

Not available

30

Toro 28-3070

Decal (Model 58307)

$

$

Not available

Toro 28-3060

Decal 4 H.P.

Note: Not illustrated

$

$

Not available

31

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

32

Toro 29-4400

Shield

$

$

Not available

33

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

34

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

Toro 28-8640

Oil Fill Tube

Note: Not illustrated

$

$

Not available
