58307 - Toro 22" Tiller (SN: 007000001 - 007999999) (1977) CHAIN CASE AND TINE ASSEMBLY MODEL 58307 Parts Diagram

22" Tiller

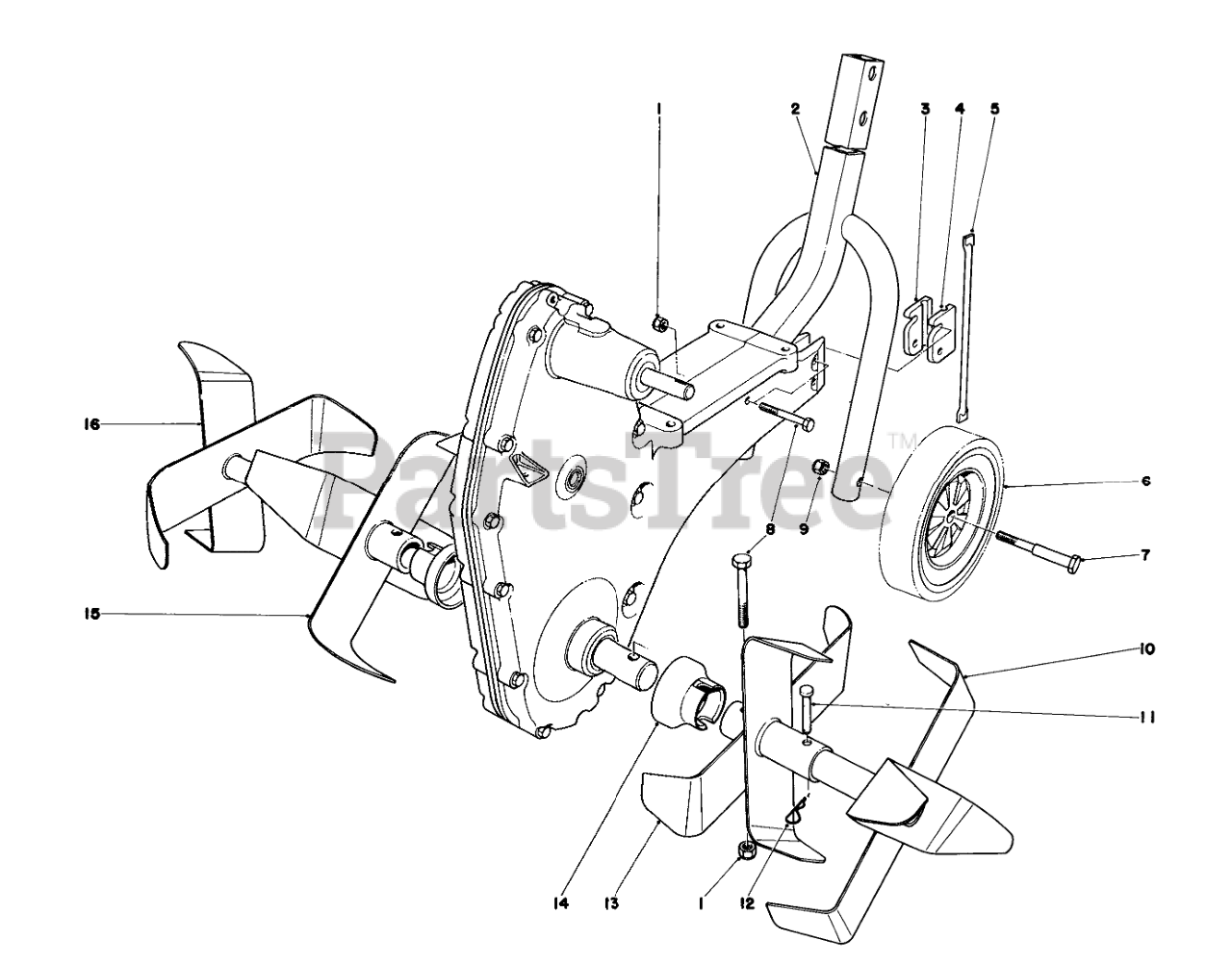

CHAIN CASE AND TINE ASSEMBLY MODEL 58307 Parts Diagram

  • Title
1

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

2

Toro 28-4980

Lower Handle

$

$

Not available

3

Toro 28-2800

Pivot Block R.H.
(Superseded to 33-1030)

$

$

Not available

4

Toro 28-2810

Pivot Block L. H.
(Superseded to 33-1020)

$

$

Not available

5

Toro 28-4880

Drag Rod

$

$

Not available

6

Toro 27-6210

WHEEL TIRE ASM 7 IN

$

$

Not available

7

Toro 28-3160

Wheel Bolt

$

$

Not available

8

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

9

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

10

Toro 28-2900

Outboard Tine L.H.

$

$

Not available

11

Toro 283-18

CLEVIS

$1.49

$

Usually ships in 3-6 days

0

12

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

13

Toro 28-2910

Inboard Tine L.H.

$

$

Not available

14

Toro 28-2920

Dust Cover

$

$

Not available

15

Toro 28-2860

Inboard Tine R.H.

$

$

Not available

16

Toro 28-2820

Outboard Tine R.H.

$

$

Not available
