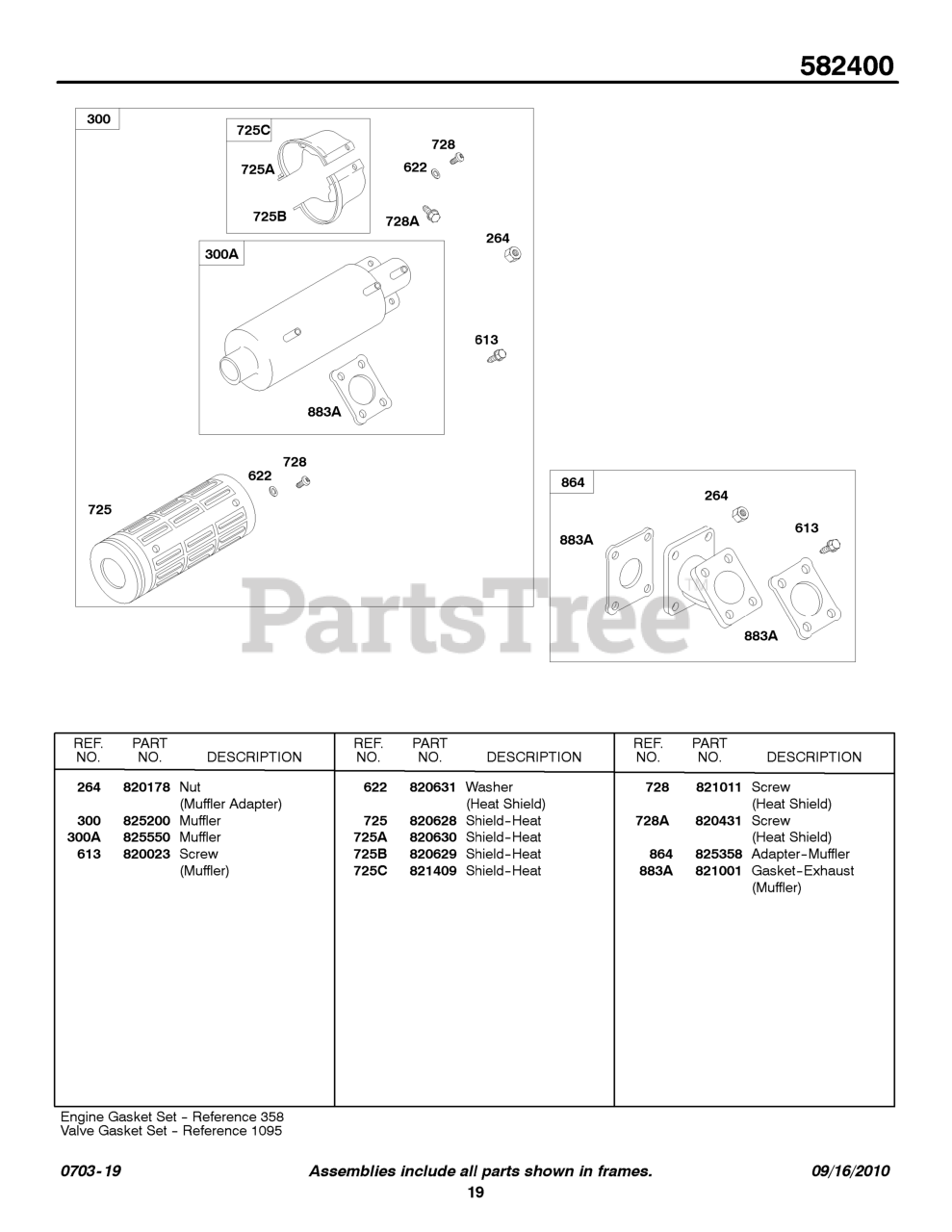

582447-0224-E2 - Briggs & Stratton Horizontal Engine Muffler, Adapter Parts Diagram

Horizontal Engine

Muffler, Adapter Parts Diagram

  • Title

264

Briggs & Stratton 820178

Nut

Note: (Muffler Adapter)

$3.99

$

In Stock, Qty 6

0

300

Briggs & Stratton 825200

Muffler

$881.99

$

Usually ships in 2-12 days

0

300A

Briggs & Stratton 825550

Muffler
(Superseded to 825200)

$881.99

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 820023

Screw

Note: (Muffler)

$3.99

$

Usually ships in 2-12 days

0

622

Briggs & Stratton 820631

Washer

Note: (Heat Shield)

$4.49

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 820628

Shield-Heat

$179.99

$

Usually ships in 2-12 days

0

725A

Briggs & Stratton 820630

Shield-Heat
(Superseded to 821409)

$161.99

$

Usually ships in 2-12 days

0

725B

Briggs & Stratton 820629

Shield-Heat

$98.99

$

Usually ships in 2-12 days

0

725C

Briggs & Stratton 821409

Shield-Heat

$161.99

$

Usually ships in 2-12 days

0

728

Briggs & Stratton 821011

Screw

Note: (Heat Shield)

$3.99

$

Usually ships in 2-12 days

0

728A

Briggs & Stratton 820431

Screw

Note: (Heat Shield)

$3.99

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 825358

Adapter-Muffler

$266.99

$

Usually ships in 2-12 days

0

883A

Briggs & Stratton 821001

Gasket-Exhaust

Note: (Muffler)

$37.99

$

Usually ships in 2-12 days

0
