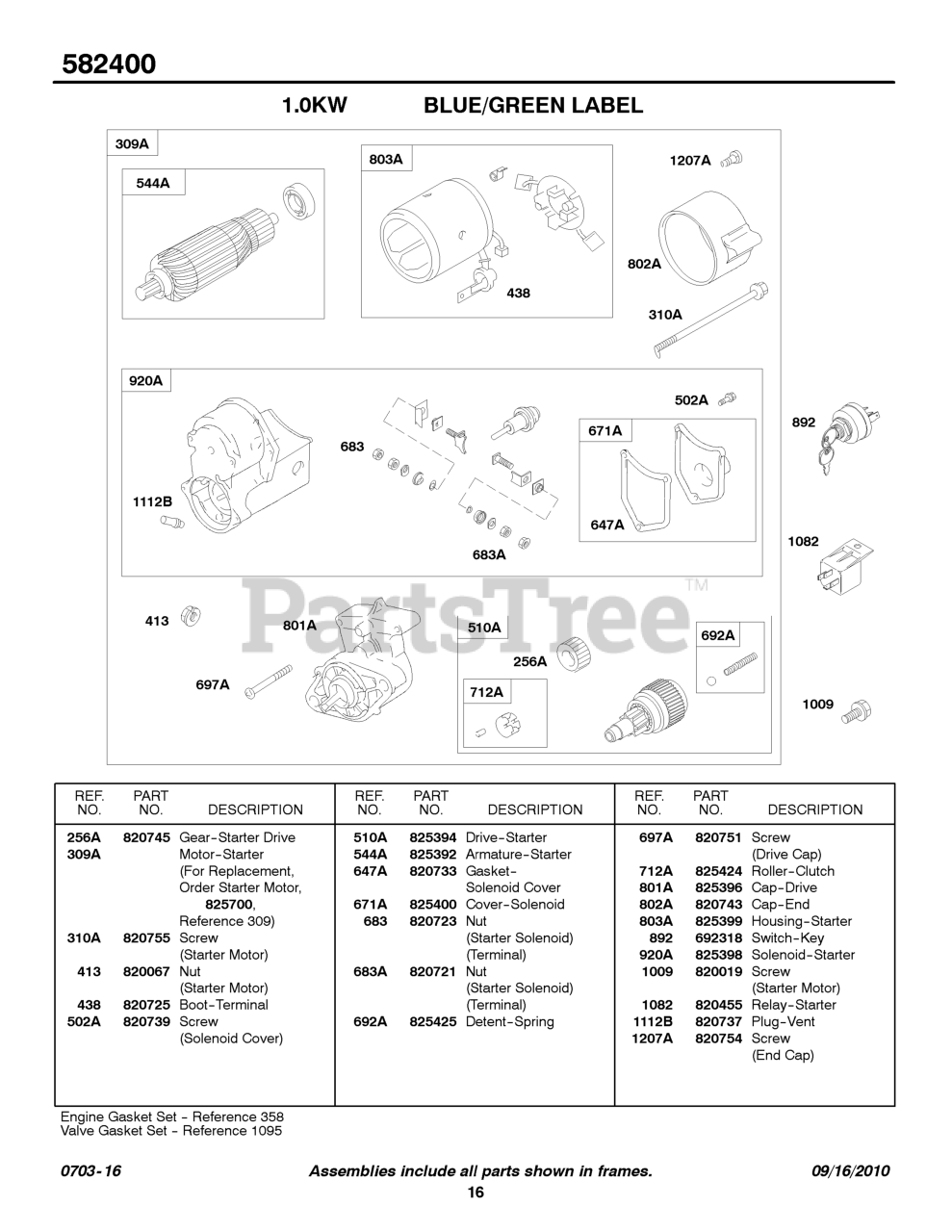

582447-0105-A1 - Briggs & Stratton Horizontal Engine 1.0 KW Electric Starter Parts Diagram

Horizontal Engine

1.0 KW Electric Starter Parts Diagram

  • Title

256A

Briggs & Stratton 820745

Gear-Starter Drive
(Superseded to 825394)

$411.99

$

Usually ships in 2-12 days

0

309A

Motor-Starter

Note: (For Replacement, Order Starter Motor, 825700, Reference 309)

$

$

Not available

310A

Briggs & Stratton 820755

Screw

Note: (Starter Motor)

$12.99

$

Usually ships in 2-12 days

0

413

Briggs & Stratton 820067

Nut

Note: (Starter Motor)

$3.99

$

Usually ships in 2-12 days

0

438

Briggs & Stratton 820725

Boot-Terminal

$7.49

$

Usually ships in 2-12 days

0

502A

Briggs & Stratton 820739

Screw

Note: (Solenoid Cover)

$5.99

$

Usually ships in 2-12 days

0

510A

Briggs & Stratton 825394

Drive-Starter

$411.99

$

Usually ships in 2-12 days

0

544A

Briggs & Stratton 825392

Armature-Starter

$471.99

$

Usually ships in 2-12 days

0

647A

Briggs & Stratton 820733

Gasket-Solenoid Cover

$20.99

$

Usually ships in 2-12 days

0

671A

Briggs & Stratton 825400

Cover-Solenoid

$42.99

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 820723

Nut

Note: (Starter Solenoid) (Terminal)

$5.99

$

Usually ships in 2-12 days

0

683A

Briggs & Stratton 820721

Nut

Note: (Starter Solenoid) (Terminal)

$5.99

$

Usually ships in 2-12 days

0

692A

Briggs & Stratton 825425

Spring-Detent
(Superseded to 825700)

$463.99

$

In Stock, only 1 left!

0

697A

Briggs & Stratton 820751

Screw

Note: (Drive Cap)

$4.99

$

Usually ships in 2-12 days

0

712A

Briggs & Stratton 825424

Roller-Clutch
(Superseded to 825700)

$463.99

$

In Stock, only 1 left!

0

801A

Briggs & Stratton 825396

Cap-Drive

$242.99

$

Usually ships in 2-12 days

0

802A

Briggs & Stratton 820743

Cap-End

$67.99

$

Usually ships in 2-12 days

0

803A

Briggs & Stratton 825399

Housing-Starter

$217.99

$

Usually ships in 2-12 days

0

892

Briggs & Stratton 692318

Switch-Key

$29.99

$

In Stock, Qty 19

0

920A

Briggs & Stratton 825398

Solenoid-Starter

$422.99

$

Usually ships in 2-12 days

0

1009

Briggs & Stratton 820019

Screw

Note: (Starter Motor)

$3.99

$

Usually ships in 2-12 days

0

1082

Briggs & Stratton 820455

Relay-Starter

$25.99

$

Usually ships in 2-12 days

0

1112B

Briggs & Stratton 820737

Plug-Vent

$15.99

$

Usually ships in 2-12 days

0

1207A

Briggs & Stratton 820754

Screw

Note: (End Cap)

$3.99

$

Usually ships in 2-12 days

0
