58237 - Toro 26" Tiller (SN: 008000001 - 008999999) (1978) HANDLE ASSEMBLY Parts Diagram

26" Tiller

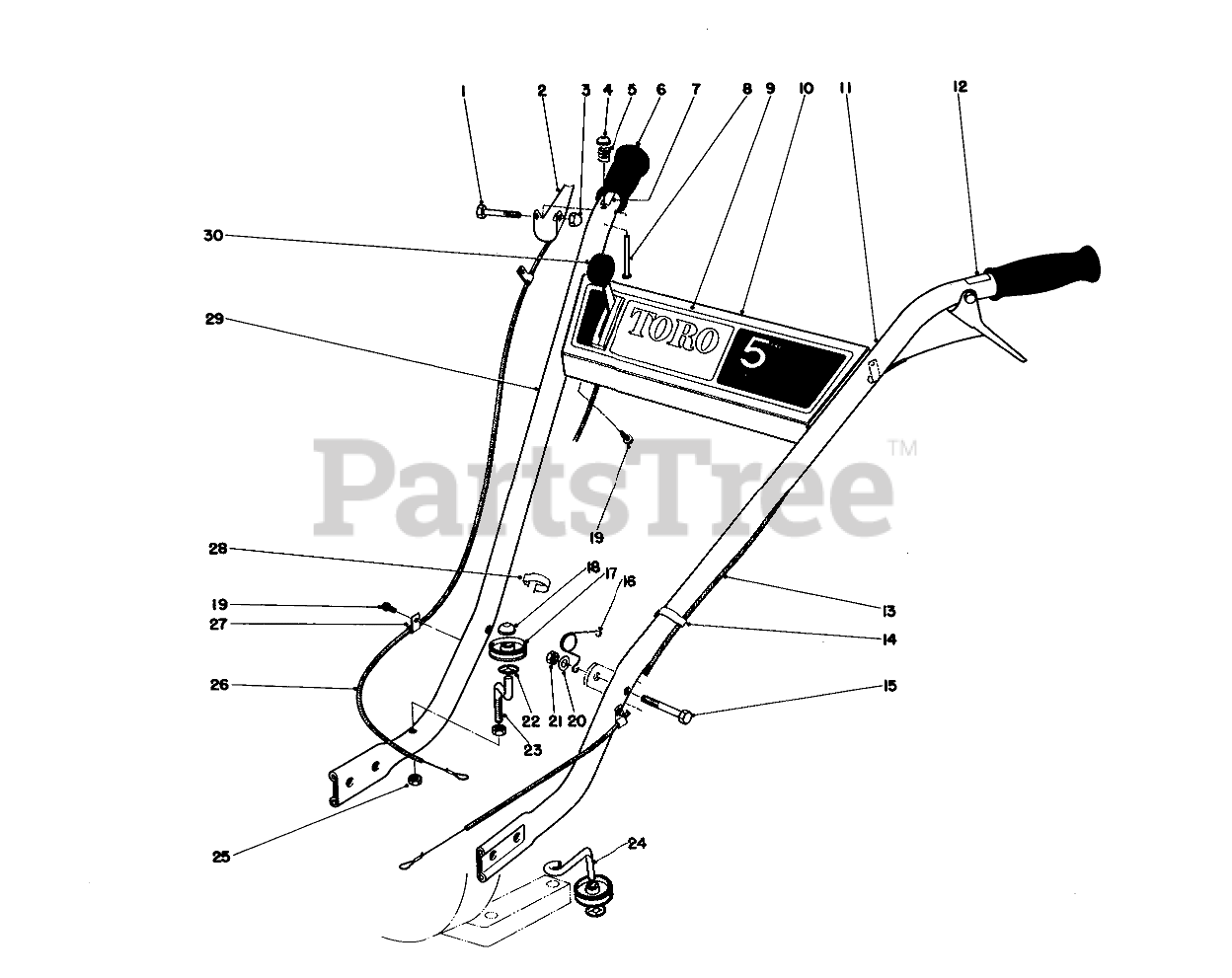

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 26-3630

LIFTBAIL

$

$

Not available

3

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

4

Toro 32111-9

Push-On

$

$

Not available

5

Toro 5-4723

COMPRESSION SPRING

$14.99

$

Usually ships in 3-6 days

0

6

Toro 235-20

Hand Grip
(Superseded to 235-21)

$21.99

$

Usually ships in 3-6 days

0

7

Toro 26-3710

Decal-Fwd.

$

$

Not available

8

Toro 26-3640

LOCK PIN

$

$

Not available

9

Toro 26-3510

Decal-Escutcheon

$

$

Currently unavailable

10

Toro 17-9300

Escutcheon Panel

$

$

Not available

11

Toro 26-3420

Handle L.H.

$

$

Not available

12

Toro 26-3720

Decal Rev.

$

$

Not available

13

Toro 26-3460

REV CABLE ASM

$

$

Not available

14

Toro 2412-47

BODEN CLIP

$

$

Not available

15

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

16

Toro 26-3690

Spring-Torsion

$

$

Not available

17

Toro 26-3490

Pulley Cable

$

$

Not available

18

Toro 3290-396

RETAINER PUSH ON

$

$

Not available

19

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

22

Toro 3290-395

PUSH ON RETAINER

$

$

Not available

23

Toro 26-3470

Spindle-Fwd.

$

$

Not available

24

Toro 26-3480

Spindle-Rev.

$

$

Not available

25

Toro 32128-28

LOCKNUT

$0.99

$

Usually ships in 3-6 days

0

26

Toro 26-3450

FWD CABLE ASM

$

$

Not available

27

Toro 2412-21

3/16 SUPPORT

$

$

Not available

28

Toro 26-5890

Boden Clip

$

$

Not available

29

Toro 26-3440

RH HANDLE

$

$

Not available

30

Toro 26-3590

THROTTLE CONTROL

$

$

Not available

Toro 6-5809

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
