58237 - Toro 26" Tiller (SN: 001000001 - 001999999) (1981) TINE AND ENGINE ASSEMBLY Parts Diagram

26" Tiller

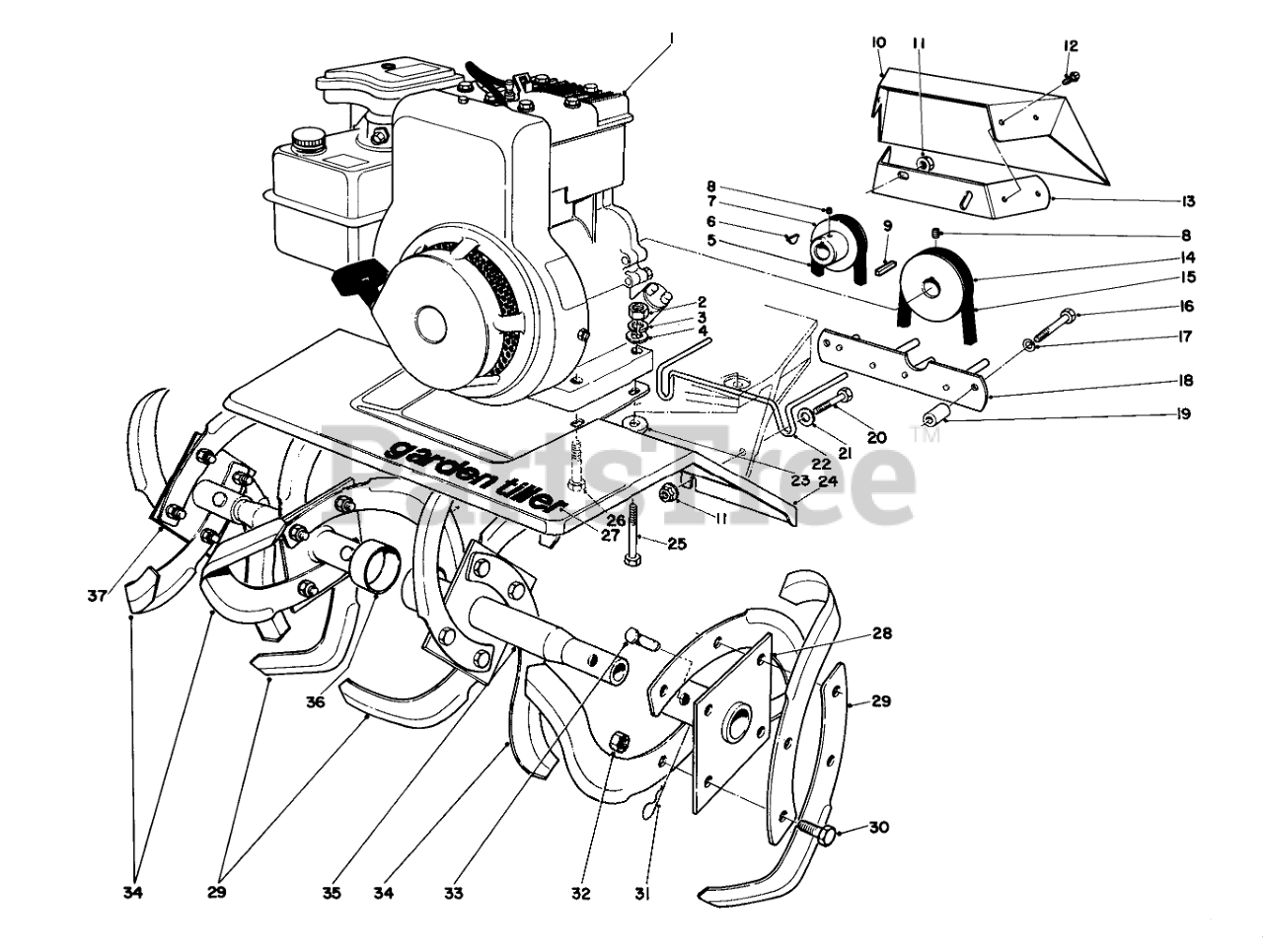

TINE AND ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 221-529

Engine

$

$

Currently unavailable

2

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 28-8660

V-BELT

$

$

Not available

6

Toro 3257-37

HI PRO KEY

$

$

Not available

7

Toro 26-3570

Pulley-Engine Rev.

$

$

Not available

8

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

9

Toro 7-0036

KEY-SQUARE

$

$

Not available

10

Toro 26-3670

PULLEY GUARD

$

$

Not available

11

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

12

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 26-3650

Strap-Belt Shield

$

$

Not available

14

Toro 27-5830

ENGINE PULLEY

$

$

Not available

15

Toro 28-8630

V-BELT

$24.99

$

Usually ships in 3-6 days

0

16

Toro 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

17

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 26-3770

Belt Guide

$

$

Not available

19

Toro 26-3220

Spacer

$

$

Not available

20

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

21

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 264030

Belt Guide-Worm Shaft

$

$

Currently unavailable

23

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

24

Toro 26-3660

TINE SHROUD

$

$

Not available

25

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

26

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

27

Toro 17-8340

Decal

$

$

Not available

28

Toro 24-6960

Axle L.H.Outer

$

$

Not available

29

Toro 7-0103

RH TINE

$67.99

$

Usually ships in 3-6 days

0

30

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

32

Toro 32149-10

NUT-KEPS

$3.49

$

Usually ships in 3-6 days

0

33

Toro 7-2116

TINE PIN

$8.99

$

In Stock, only 4 left!

0

34

Toro 7-0102

LH TINE

$

$

Not available

35

Toro 24-6970

Axle L.H. Inner

$

$

Not available

36

Toro 24-6950

Axle R.H. Inner

$

$

Not available

37

Toro 24-6940

Axle R.H. Outer

$

$

Not available
