58235 - Toro 26" Tiller (SN: 005000001 - 005999999) (1975) ENGINE TECUMSEH-MODEL HS50-67089A Parts Diagram

26" Tiller

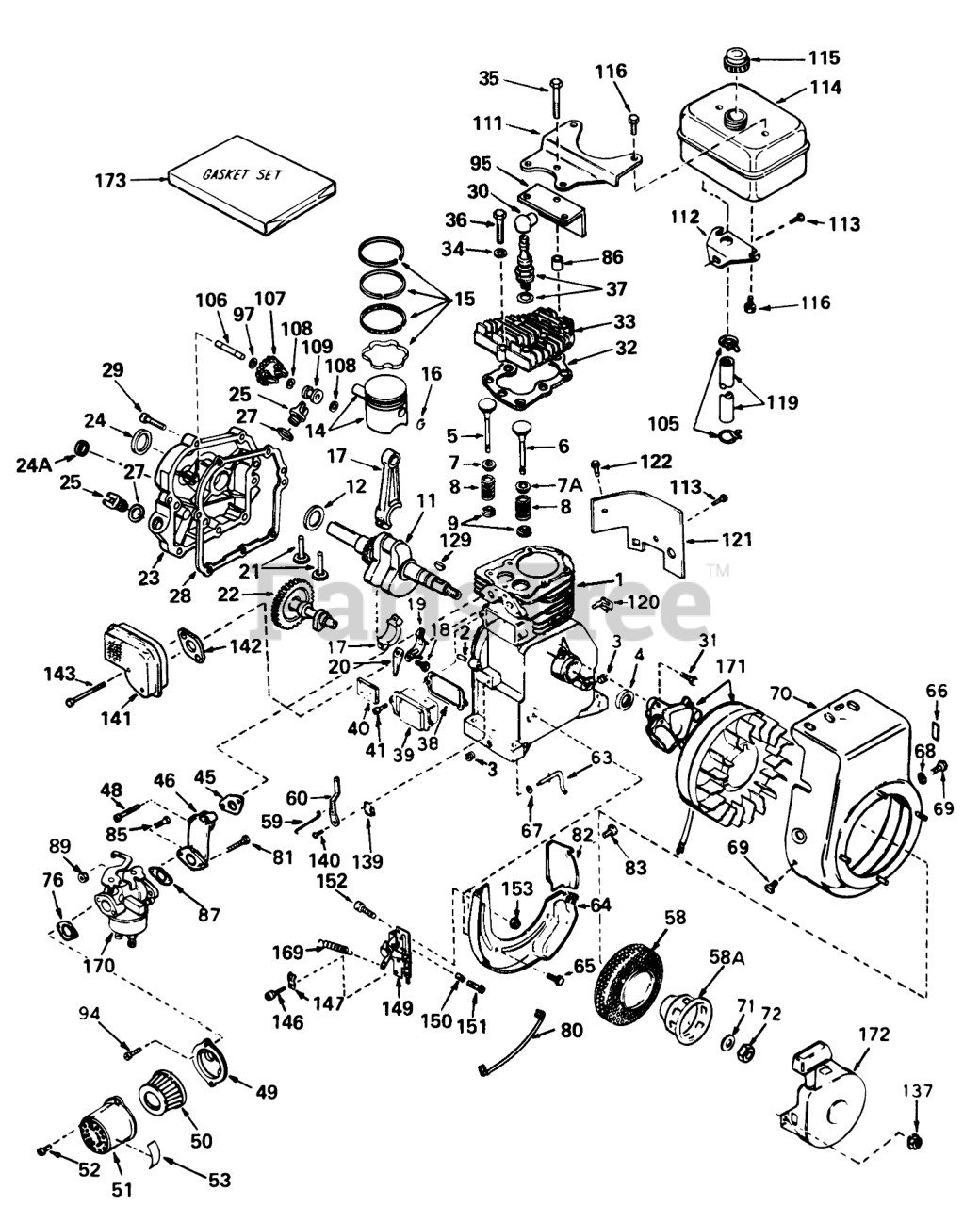

ENGINE TECUMSEH-MODEL HS50-67089A Parts Diagram

  • Title

1

Tecumseh 33674

CyIinder Assy.(Incl. Nos. 2, 3 & 4)
(Superseded to 33674B)

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 32600

Seal-Oil

$

$

Not available

5

Tecumseh 32644

Valve, Intake (Std.)(Incl. Nos. 7, 8 & 9)
(Superseded to 32644A)

$9.99

$

In Stock, only 1 left!

0

5

Tecumseh 32645

Valve, Intake (1/32" oversize) (Incl. Nos. 7, 8 & 9)
(Superseded to 32645A)

$61.99

$

In Stock, only 2 left!

0

6

Tecumseh 29313B

Valve, Exhaust (Std.)(Incl. Nos. 7A, 8 & 9)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315B

Valve, Exhaust (1/32" oversize) (Incl. Nos. 7A, 8 & 9)
(Superseded to 29315C)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

7A

Tecumseh 33678

Cap, Upper Valve Spg (Exhaust)

$

$

Currently unavailable

8

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

9

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, Qty 5

0

11

Tecumseh 33677

Crankshaft
(Superseded to 33677A)

$151.99

$

In Stock, only 1 left!

0

12

Tecumseh 32323

Washer-Thrust

$8.49

$

Usually ships in 3-12 days

0

14

Tecumseh 33562

Piston & Pin Assy.(Std.)(Incl. 2 of No.16)
(Superseded to 33562B)

$44.99

$

Usually ships in 3-12 days

0

14

Tecumseh 33563

Piston & Pin Assy.(.010 oversize)(Incl. 2 of No. 16)

$

$

Currently unavailable

14

Tecumseh 33564

Piston & Pin Assy.(.020 oversize)(Incl.2Of No. 16)
(Superseded to 33564B)

$

$

Not available

15

Tecumseh 33567

Ring Set-Piston Std.
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

15

Tecumseh 33568

Ring Set-Piston .010 oversize

$

$

Not available

15

Tecumseh 33569

Ring Set-Piston .020 oversize

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 33661

Rod Assy., Connecting (Incl. Nos. 18, 19 & 20)
(Superseded to 32875)

$47.99

$

In Stock, only 1 left!

0

18

Tecumseh 32610

Connecting Rod Bolt
(Superseded to 32610A)

$1.99

$

In Stock, Qty 6

0

19

Tecumseh 32609

Plate Lock

$0.99

$

Usually ships in 3-12 days

0

20

Tecumseh 32654

Dipper-Oil

$8.99

$

In Stock, only 4 left!

0

21

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

22

Tecumseh 33696

Camshaft (Compression Release) (Extended)

$67.99

$

Usually ships in 3-12 days

0

23

Tecumseh 32766A

Cover, Cylinder (Incl. Nos.24, 24A, 25, 27 & 106)
(Superseded to 32766B)

$

$

Not available

24

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, Qty 14

0

24A

Tecumseh 30318

Seal, Oil

$7.49

$

Usually ships in 3-12 days

0

25

Tecumseh 27625

Plug, Oil filler (Incl. No. 27)

$2.49

$

In Stock, Qty 5

0

27

Tecumseh 29673

Gasket

Note: Indicates items included in Gasket Set part no. 33683

$1.99

$

In Stock, only 2 left!

0

28

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

Note: Indicates items included in Gasket Set part no. 33683

$7.49

$

In Stock, only 4 left!

0

29

Tecumseh 30564

Screw
(Superseded to 650451)

$1.99

$

In Stock, only 2 left!

0

30

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

31

Tecumseh 650489

Screw

$

$

Not available

32

Tecumseh 33554

Oil Fill Tube
(Superseded to 36443)

Note: Indicates items included in Gasket Set part no. 33683

$5.99

$

In Stock, Qty 5

0

33

Tecumseh 33016

Head Cylinder
(Superseded to 37675)

$41.99

$

In Stock, only 1 left!

0

34

Tecumseh 26073

Washer

$

$

Not available

35

Tecumseh 650694

Screw Hex Hd. Cap
(Superseded to 650694A)

$3.49

$

In Stock, Qty 20+

0

36

Tecumseh 6021

Screw
(Superseded to 6021A)

$1.99

$

In Stock, Qty 6

0

37

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.99

$

In Stock, Qty 8

0

38

Tecumseh 31619

Gasket Breather
(Superseded to 31619A)

Note: Indicates items included in Gasket Set part no. 33683

$7.49

$

In Stock, only 1 left!

0

39

Tecumseh 31337

Breather Assy. (Incl. Nos. 38 & 40)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

40

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 18

0

41

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

45

Tecumseh 33673

Gasket-Intake
(Superseded to 33673A)

Note: Indicates items included in Gasket Set part no. 33683

$5.99

$

In Stock, only 2 left!

0

46

Tecumseh 33666

Pipe, Intake

$

$

Not available

48

Tecumseh 30646

Screw

$8.99

$

In Stock, only 1 left!

0

49

Tecumseh 31914

Bracket, Air cleaner

$22.99

$

Usually ships in 3-12 days

0

50

Tecumseh 30727

Element

$7.49

$

In Stock, Qty 5

0

51

Tecumseh 31692

Body
(Superseded to 31715)

$21.99

$

In Stock, Qty 7

0

52

Tecumseh 650152

Screw

$2.49

$

In Stock, only 3 left!

0

53

Tecumseh 31752

Decal

$

$

Not available

58

Tecumseh 33668

Screen-Starter

$7.49

$

Usually ships in 3-12 days

0

58A

Tecumseh 33667

Cup, Starter

$

$

Not available

59

Tecumseh 32698

Link-Governor to Throttle

$1.99

$

In Stock, Qty 5

0

60

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

Usually ships in 3-12 days

0

63

Tecumseh 31334

Rod-Governor

$5.49

$

Usually ships in 3-12 days

0

64

Tecumseh 33342

Baffle-Blower Housing
(Superseded to 36552)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting.

$9.49

$

Usually ships in 3-12 days

0

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

66

Tecumseh 31906

Decal, Name & Instruction
(Superseded to 36261)

$

$

Not available

67

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 3 left!

0

68

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

69

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, only 4 left!

0

70

Tecumseh 33663

Housing Blower
(Superseded to 33663E)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order 4 nuts illustrated to attach replacement starter to replacement blower housing.

$

$

Currently unavailable

71

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

76

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Indicates items included in Gasket Set part no. 33683

$4.49

$

In Stock, Qty 20+

0

80

Tecumseh 31388

Wire, Ground
(Superseded to 35349)

$

$

Not available

81

Tecumseh 6202

Screw
(Superseded to 6201)

$

$

Not available

82

Tecumseh 33341

Baffle-Extension
(Superseded to 35883)

$1.99

$

In Stock, Qty 5

0

83

Tecumseh 650701

Screw-Hex Washer Hd.

$1.99

$

Usually ships in 3-12 days

0

85

Tecumseh 650601

Screw-Fil. Hd.

$

$

Currently unavailable

86

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 5

0

87

Tecumseh 26756

Gasket

Note: Indicates items included in Gasket Set part no. 33683

$2.99

$

In Stock, only 2 left!

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 7

0

94

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

95

Tecumseh 33344

Baffle-Heat

$5.49

$

In Stock, only 1 left!

0

97

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 5

0

105

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

106

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 2 left!

0

107

Tecumseh 30591

Gear Assy., Governor (Incl. No.97)

$13.99

$

Usually ships in 3-12 days

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 5

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, Qty 5

0

111

Tecumseh 28371A

Bracket, Fuel tank
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

112

Tecumseh 32762

Bracket, Fuel Tank Lower

$

$

Currently unavailable

113

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

114

Tecumseh 33120

Tank Assy., Fuel (Incl. No.116)
(Superseded to 35584)

$45.99

$

In Stock, only 3 left!

0

115

Tecumseh 410144B

Cap, Fuel
(Superseded to 33032)

$7.49

$

Usually ships in 3-12 days

0

116

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, Qty 5

0

119

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 4 left!

0

120

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, only 4 left!

0

121

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

122

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

129

Tecumseh 27247

Key Flywheel
(Superseded to 610961)

$1.49

$

In Stock, Qty 20+

0

137

Tecumseh 29752

Nut and Lock Washer (1/4-28)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order 4 nuts illustrated to attach replacement starter to replacement blower housing.

$1.99

$

In Stock, Qty 7

0

139

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 1 left!

0

140

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 5

0

141

Tecumseh 33697

Muffler
(Superseded to 33697A)

$40.99

$

Usually ships in 3-12 days

0

142

Tecumseh 33670

Gasket-Exhaust
(Superseded to 35865)

Note: Indicates items included in Gasket Set part no. 33683

$2.49

$

In Stock, only 4 left!

0

143

Tecumseh 650253

Screw, Hex hd. cap
(Superseded to 792020)

$4.49

$

Usually ships in 3-12 days

0

146

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

147

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

149

Tecumseh 33879

Control Assy., Speed (Incl. Nos.150 thru 153)
(Superseded to 36677)

$47.99

$

Usually ships in 3-12 days

0

150

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

151

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

152

Tecumseh 30091

Screw, Hex Slotted Hd.
(Superseded to 650139)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting.

$1.99

$

In Stock, only 4 left!

0

153

Tecumseh 30322

Nut-Lock

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting.

$1.99

$

Usually ships in 3-12 days

0

169

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

170

Tecumseh 631701

Carburetor (Incl. No. 87)

$

$

Not available

171

Tecumseh 610862

Magneto

$

$

Currently unavailable

172

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order 4 nuts illustrated to attach replacement starter to replacement blower housing.

$68.99

$

In Stock, only 1 left!

0

173

Tecumseh 33683

Gasket Set
(Superseded to 33683C)

$20.99

$

In Stock, only 4 left!

0
