58231 - Toro 26" Tiller (SN: 005000001 - 005999999) (1975) CARBURETOR ASSEMBLY Parts Diagram

26" Tiller

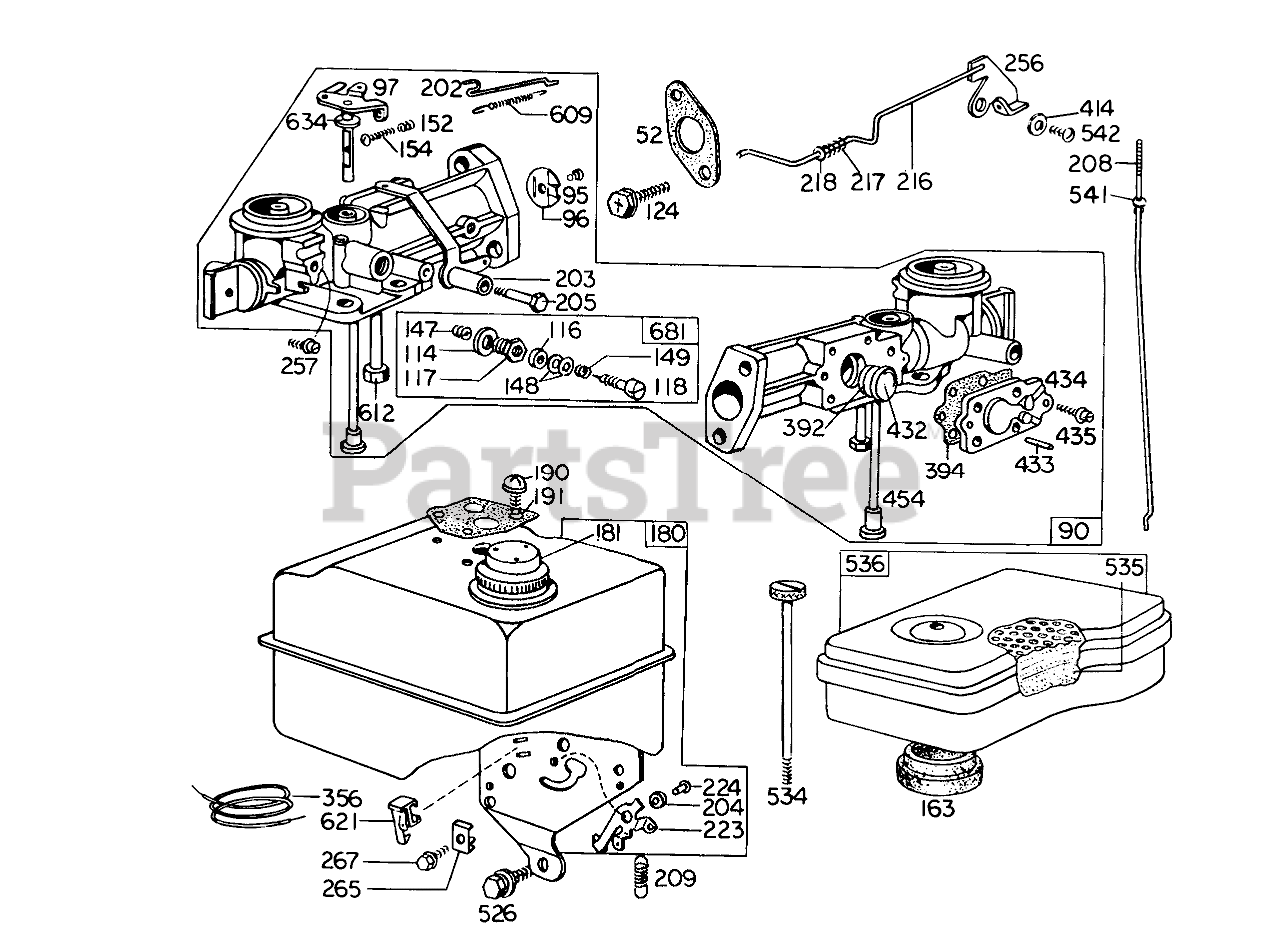

CARBURETOR ASSEMBLY Parts Diagram

  • Title

52

Briggs & Stratton 27355

Gasket-Carburetor
(Superseded to 27355S)

Note: Included in Gasket Set-Part No. 297615.

$3.99

$

In Stock, Qty 20+

0

90

Briggs & Stratton 299576

Carburetor Assy.

$141.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93385

Screw-Throttle Valve Mounting Sem
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211203

Valve Throttle

$8.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 299212

Shaft & Lever-Throttle
(Superseded to 691946)

$30.99

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 66594

Gasket Valve Nut
(Superseded to 691608)

$5.99

$

In Stock, Qty 20+

0

116

Briggs & Stratton 65978

Packing-Needle
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 230590

Nut-Needle Valve
(Superseded to 690504)

$3.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 23433

Valve-Needle
(Superseded to 690266)

$9.49

$

In Stock, only 3 left!

0

124

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 230591

Seat-Needle Valve
(Superseded to 692134)

$9.49

$

In Stock, only 4 left!

0

148

Briggs & Stratton 22235

Washer-Needle Valve
(Superseded to 690257)

$4.99

$

In Stock, only 1 left!

0

149

Briggs & Stratton 26336

Spring Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, only 4 left!

0

152

Briggs & Stratton 260575

Spring-Adjustment
(Superseded to 691783)

$7.99

$

In Stock, Qty 11

0

154

Briggs & Stratton 92634

Screw-Round Head
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 27660

51048 SUP.SHEET TIL

Note: Included in Gasket Set-Part No. 297615.

$

$

Not available

180

Briggs & Stratton 297600

Tank Assembly-Fuel
(Superseded to 494592)

$

$

Not available

181

Briggs & Stratton 298425

Cap-Fuel Tank
(Superseded to 493982S)

$

$

Not available

190

Briggs & Stratton 93341

Screw-Fuel Tank Mtg.
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 27911

Gasket-Fuel Tank Mtg.
(Superseded to 272409S)

Note: Included in Gasket Set-Part No. 297615.

$3.99

$

In Stock, Qty 20+

0

202

Briggs & Stratton 260678

Link-Throttle
(Superseded to 691786)

$

$

Not available

203

Briggs & Stratton 297718

Crank-Bell
(Superseded to 691965)

$13.99

$

Usually ships in 2-12 days

0

204

Toro 230844

Bushing-Governor Lever

$

$

Currently unavailable

205

Toro 93566

Screw-ShouIder

$

$

Currently unavailable

208

Briggs & Stratton 230737

55335 GIL 11HP SNWT

$

$

Not available

209

Briggs & Stratton 260695

Spring
(Superseded to 796260)

$4.99

$

In Stock, Qty 15

0

216

Briggs & Stratton 299859

Crank-Bell

$5.99

$

Usually ships in 2-12 days

0

217

Briggs & Stratton 260189

Spring-Choke Link

$2.99

$

Usually ships in 2-12 days

0

218

Briggs & Stratton 221198

Washer
(Superseded to 691722)

$6.99

$

Usually ships in 2-12 days

0

223

Briggs & Stratton 221517

Lever-Governor
(Superseded to 398584)

$8.99

$

Usually ships in 2-12 days

0

224

Briggs & Stratton 93491

Rivet

$1.49

$

Usually ships in 2-12 days

0

256

Briggs & Stratton 299859

Crank-Bell

$5.99

$

Usually ships in 2-12 days

0

257

Briggs & Stratton 93263

Screw-Fil. Hd.

$

$

Not available

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

356

Briggs & Stratton 295413

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

392

Briggs & Stratton 260455

Spring-Fuel Pump
(Superseded to 692206)

$4.49

$

In Stock, Qty 8

0

394

Briggs & Stratton 270026

Diaphragm

$3.99

$

In Stock, Qty 20+

0

414

Briggs & Stratton 220982

Washer
(Superseded to 691721)

$7.49

$

In Stock, only 1 left!

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, only 3 left!

0

433

Briggs & Stratton 93265

Pin-Roll
(Superseded to 690296)

$6.49

$

Usually ships in 2-12 days

0

434

Briggs & Stratton 210959

Cover-Diaphragm
(Superseded to 691713)

$10.99

$

In Stock, only 1 left!

0

435

Briggs & Stratton 93141

Screw
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

454

Briggs & Stratton 296178

Housing-Fuel Pipe

$

$

Not available

526

Briggs & Stratton 93343

Screw
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

534

Briggs & Stratton 93322

Screw-Air Cleaner

$5.99

$

In Stock, Qty 8

0

535

Briggs & Stratton 27987

Element-Air Cleaner
(Superseded to 27987S)

$6.99

$

In Stock, Qty 12

0

536

Briggs & Stratton 297036

Cleaner Assembly-Air

$

$

Not available

541

Briggs & Stratton 22398

Washer
(Superseded to 5022398)

$3.49

$

Usually ships in 2-12 days

0

542

Briggs & Stratton 92265

Screw

$2.49

$

Usually ships in 2-12 days

0

609

Briggs & Stratton 260694

Spring-Throttle Link
(Superseded to 690498)

$7.49

$

In Stock, Qty 11

0

612

Briggs & Stratton 296811

Pipe-Fuel
(Superseded to 497413S)

$7.49

$

In Stock, Qty 8

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 13

0

681

Briggs & Stratton 299060

Kit-Needle Valve

$21.99

$

In Stock, only 3 left!

0
