58200 - Toro 26" Tiller (SN: 009000001 - 009999999) (1969) TINE AND ENGINE ASSEMBLY Parts Diagram

26" Tiller

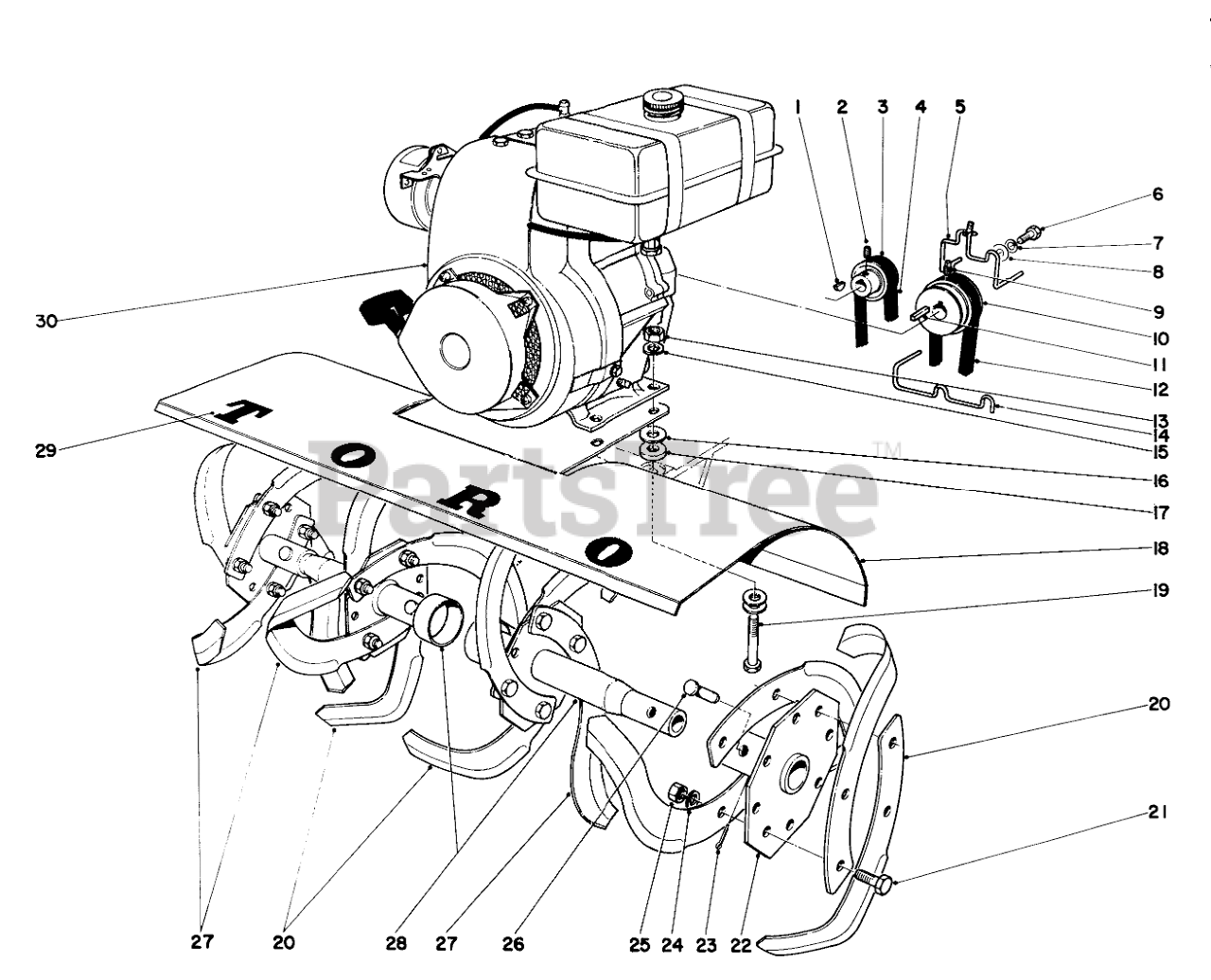

TINE AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

2

Toro 3245-7

SCREW-SET

$

$

Currently unavailable

3

Toro 7-0071

Pulley
(Superseded to 25-2170)

$

$

Not available

4

Toro 7-2166

BELT

$

$

Not available

5

Toro 7-0335

Belt Guide

$

$

Currently unavailable

6

Toro 3210-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

10

Toro 7-0070

Engine Pulley

$

$

Not available

11

Toro 7-0036

KEY-SQUARE

$

$

Not available

12

Toro 7-0073

Belt
(Superseded to 28-8630)

$22.99

$

Usually ships in 3-6 days

0

13

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

14

Toro 7-0336

Belt Guide

$

$

Currently unavailable

15

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

18

Toro 7-0072

Shield
(Superseded to 26-3660)

$

$

Not available

19

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

20

Toro 7-0103

RH TINE

$59.99

$

Usually ships in 3-6 days

0

21

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

22

Toro 7-0105

Axle Hub

$

$

Currently unavailable

23

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

24

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

25

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

26

Toro 7-2116

TINE PIN

$8.99

$

In Stock, only 4 left!

0

27

Toro 7-0102

LH TINE

$

$

Not available

28

Toro 7-0104

Axle Hub

$

$

Not available

29

Toro 7-8940

Decal

$

$

Currently unavailable

30

Toro 221-275

Engine

$

$

Currently unavailable
