58200 - Toro 26" Tiller (SN: 009000001 - 009999999) (1969) HANDLE ASSEMBLY Parts Diagram

26" Tiller

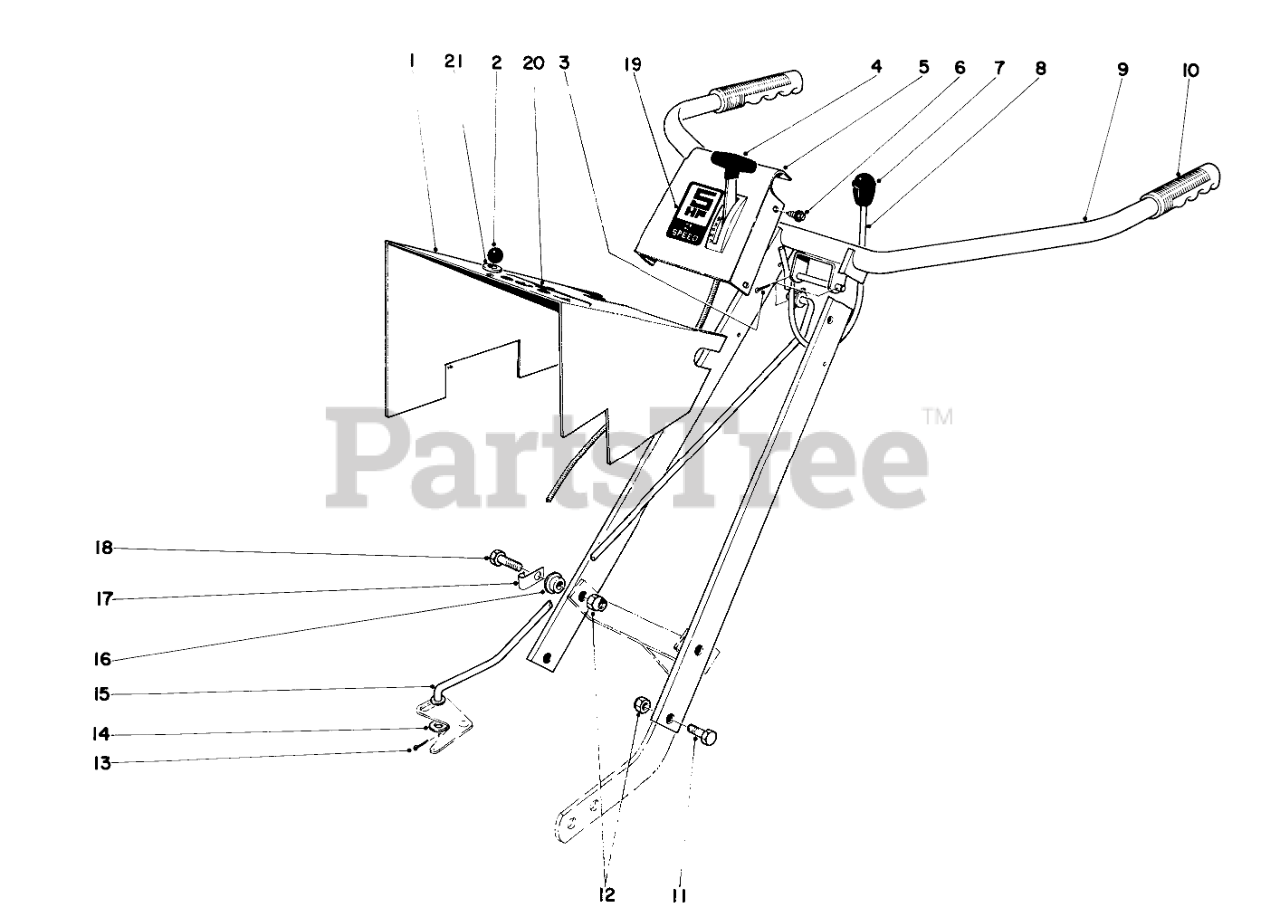

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-0080

Pulley Cover

$

$

Currently unavailable

2

Toro 233-17

KNOB

$12.99

$

Usually ships in 3-6 days

0

3

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

4

Toro 7-3363

Throttle

$

$

Currently unavailable

5

Toro 7-3365

Cover Handle

$

$

Currently unavailable

6

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

7

Toro 233-18

Knob
(Superseded to 233-22)

$25.99

$

Usually ships in 3-6 days

0

8

Toro 7-0088

Shift Lever

$

$

Currently unavailable

9

Toro 7-0087

Handle Bar

$

$

Currently unavailable

10

Toro 235-17

Handle Grip

$

$

Currently unavailable

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

13

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

14

Toro 7-0052

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

15

Toro 7-0078

Clutch Rod

$

$

Not available

16

Toro 7-2041

Spacer

$

$

Currently unavailable

17

Toro 7-0077

Clip

$

$

Not available

18

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 7-4342

Decal

$

$

Currently unavailable

20

Toro 5-1508

Decal

$

$

Currently unavailable

21

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
