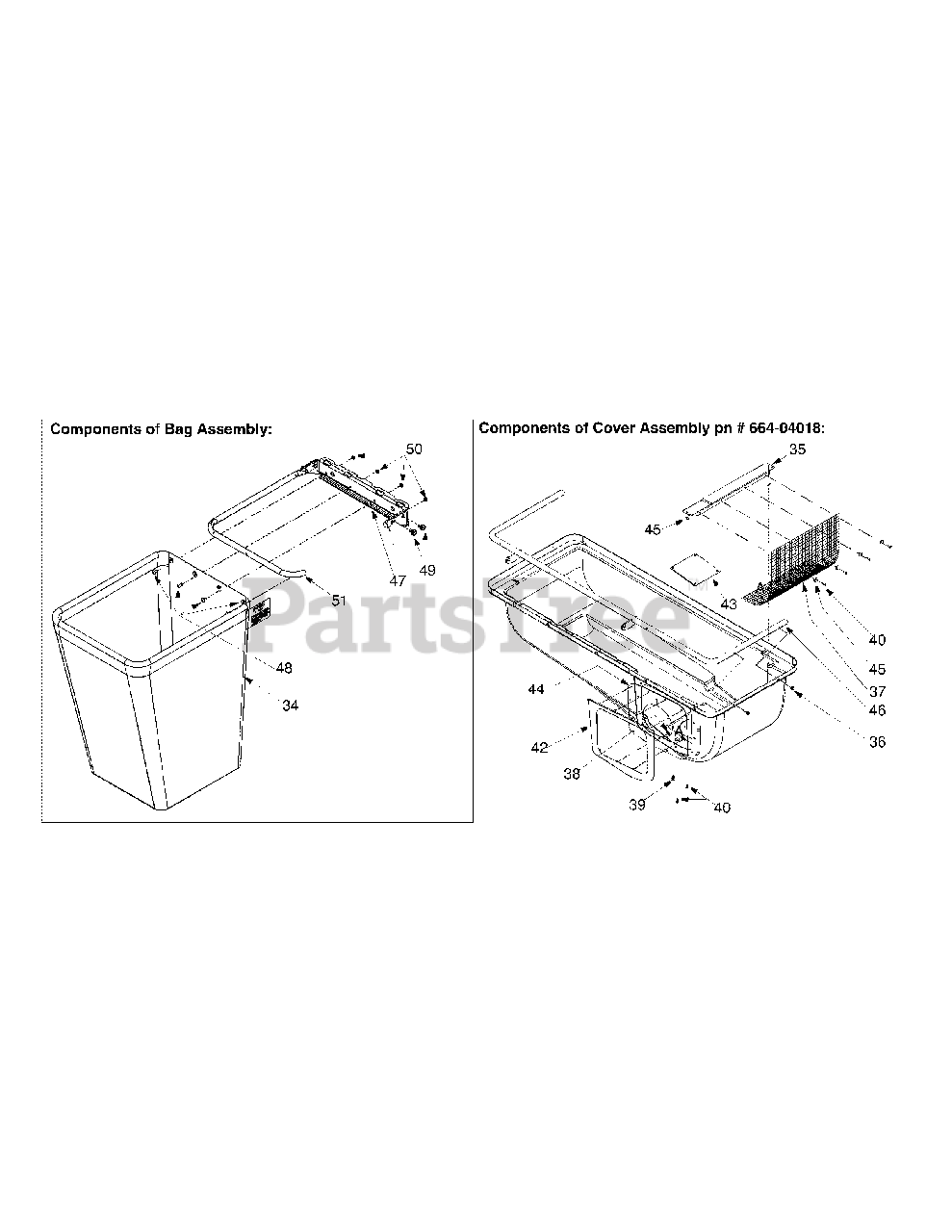

582 (590-582-150) - Cub Cadet Rear Triple Bagger att Assembly Parts Diagram

Rear Triple Bagger

Assembly Parts Diagram

  • Title

34

Cub Cadet 964-0251

Grassbag

$87.99

$

In Stock, Qty 15

0

35

Cub Cadet 17202A

Screen Mounting Bracket

Note: NLA

Variations

Cub Cadet 17202A-0637

SCREEN MTG BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

36

Cub Cadet 710-1652

TT Screw 1/4-20 x 0.625

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 920-04018

Screen

$

$

Not available

38

Cub Cadet 926-04027

Push Nut

$

$

Not available

39

Cub Cadet 726-0479

Ratchet Clip

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 928-0123

Pop Rivet

$4.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 931-04189

Retainer Seal

$

$

Not available

43

Cub Cadet 731-0824A

Plastic Plate

Note: NLA

$

$

Not available

44

Cub Cadet 935-04020

Grass Bag Seal

$

$

Not available

45

Cub Cadet 936-0400

Flat Washer
(Superseded to 736-0400)

$

$

Not available

46

Cub Cadet 749-0747-0637

Hinge Bracket

$

$

Not available

47

Cub Cadet 17201A-0637

Bag Hanger Bracket

$71.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 710-0473

Machine Screw

$4.49

$

In Stock, only 2 left!

0

49

Cub Cadet 710-0604A

TT Screw 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 712-0272

Hex Sems Nut

$3.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 749-0745A-0637

Tube: Grass Bag Frame

$

$

Not available
