58170 - Toro 22" Tiller (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

22" Tiller

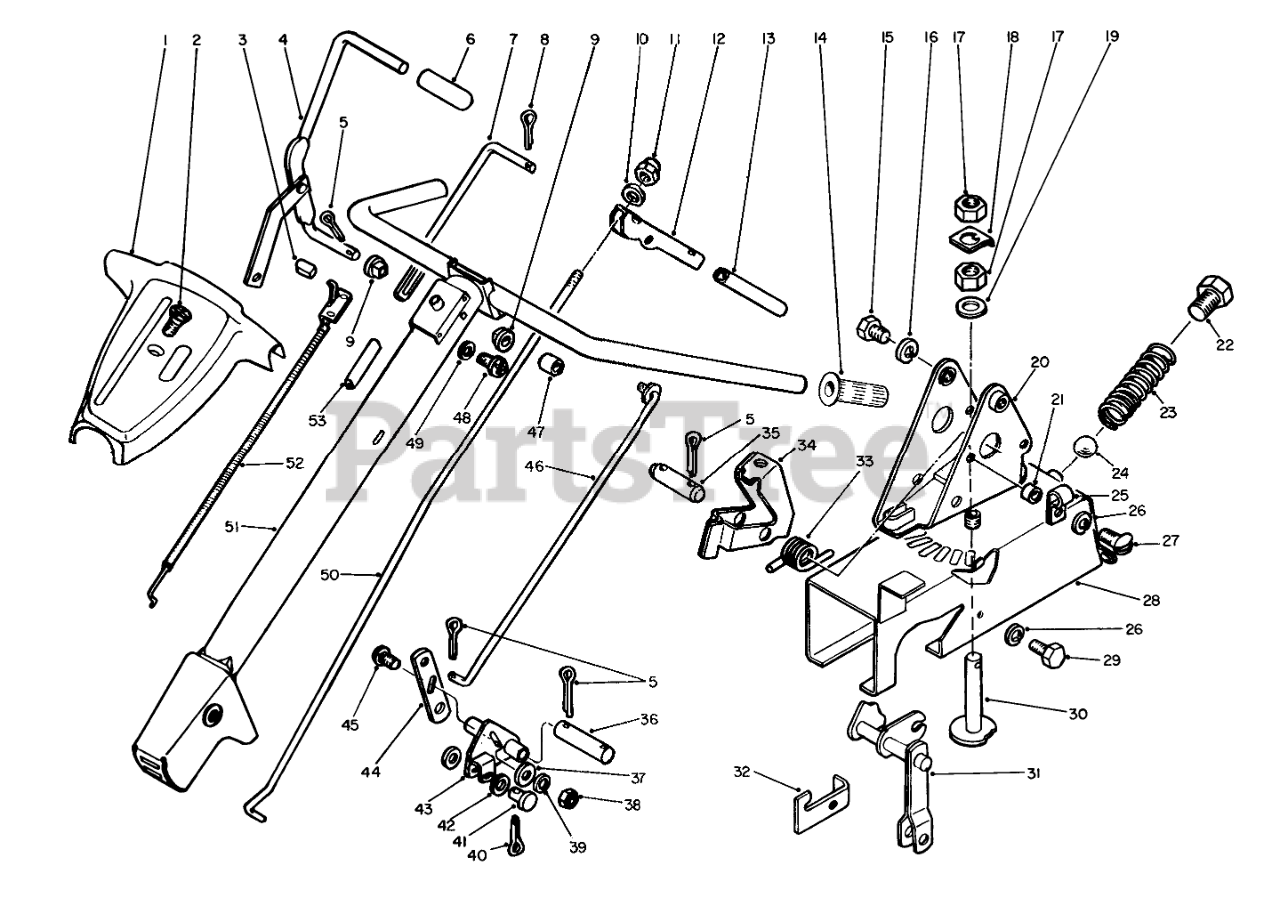

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 47-7600

Handle Shroud w/Decal
(Superseded to 702236)

$

$

Not available

2

Toro 47-8790

Machine Screw

$

$

Not available

3

Toro 47-8710

Grip-Throttle Control

$

$

Not available

4

Toro 47-9300

Control Handle
(Superseded to 740895)

$

$

Not available

5

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

6

Toro 47-9010

Grip
(Superseded to 702548)

$

$

Not available

7

Toro 47-9290

Link
(Superseded to 740892)

$

$

Not available

8

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

9

Toro 47-8200

Bushing
(Superseded to 702547)

$

$

Not available

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

12

Toro 47-9100

Lever
(Superseded to 702555)

$

$

Not available

13

Toro 47-8420

Grip

$

$

Not available

14

Toro 48-1130

Grip
(Superseded to 706342)

$

$

Not available

15

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

17

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 13

0

18

Toro 47-9500

Lock
(Superseded to 702532)

$

$

Not available

19

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

20

Toro 47-9410

Pivot
(Superseded to 740456)

$

$

Not available

21

Toro 47-8330

Spacer-Clamp
(Superseded to 700802)

$

$

Not available

22

Toro 47-8920

Hex Hd. Capscrew

$

$

Not available

23

Toro 47-9040

Spring-Detent
(Superseded to 702542)

$

$

Not available

24

Toro 47-8470

Ball-Detent

$

$

Not available

25

Toro 47-8380

Clamp
(Superseded to 702549)

$

$

Not available

26

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 3258-11

1/4-20 X 5/8 RD HD SC

$

$

Not available

28

Toro 47-9390

Tunnel

$

$

Not available

29

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 47-9180

Plunger
(Superseded to 740891)

$

$

Not available

31

Toro 47-9930

Cam Assembly

$

$

Not available

32

Toro 47-9170

Retainer
(Superseded to 740535)

$

$

Not available

33

Toro 47-9110

Spring
(Superseded to 702540)

$

$

Not available

34

Toro 47-9370

Pawl
(Superseded to 740451)

$

$

Not available

35

Toro 47-9310

Pin
(Superseded to 702538)

$

$

Not available

36

Toro 47-9020

Pin
(Superseded to 702544)

$

$

Not available

37

Toro 47-7880

Spacer
(Superseded to 702042)

$

$

Not available

38

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

39

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

40

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

41

Toro 47-9250

Clevis Pin
(Superseded to 702099)

$

$

Not available

42

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 47-9220

Bellcrank
(Superseded to 740449)

$

$

Not available

44

Toro 47-9480

Lever
(Superseded to 701835)

$

$

Not available

45

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

46

Toro 47-9380

Control Rod

$

$

Not available

47

Toro 47-9260

Spacer
(Superseded to 702539)

$

$

Not available

48

Toro 47-8170

Pan Hd. Machine Screw

$

$

Not available

49

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

50

Toro 47-9090

Control Rod
(Superseded to 702556)

$

$

Not available

51

Toro 47-9400

Handle

$

$

Not available

52

Toro 47-9880

Throttle Control

$

$

Not available

53

Toro 47-9460

Slide
(Superseded to 702533)

$

$

Not available
