58160 - Toro 18" Tiller (SN: 003000001 - 003999999) (1983) CHAIN CASE ASSEMBLY NO. 48-1250 Parts Diagram

18" Tiller

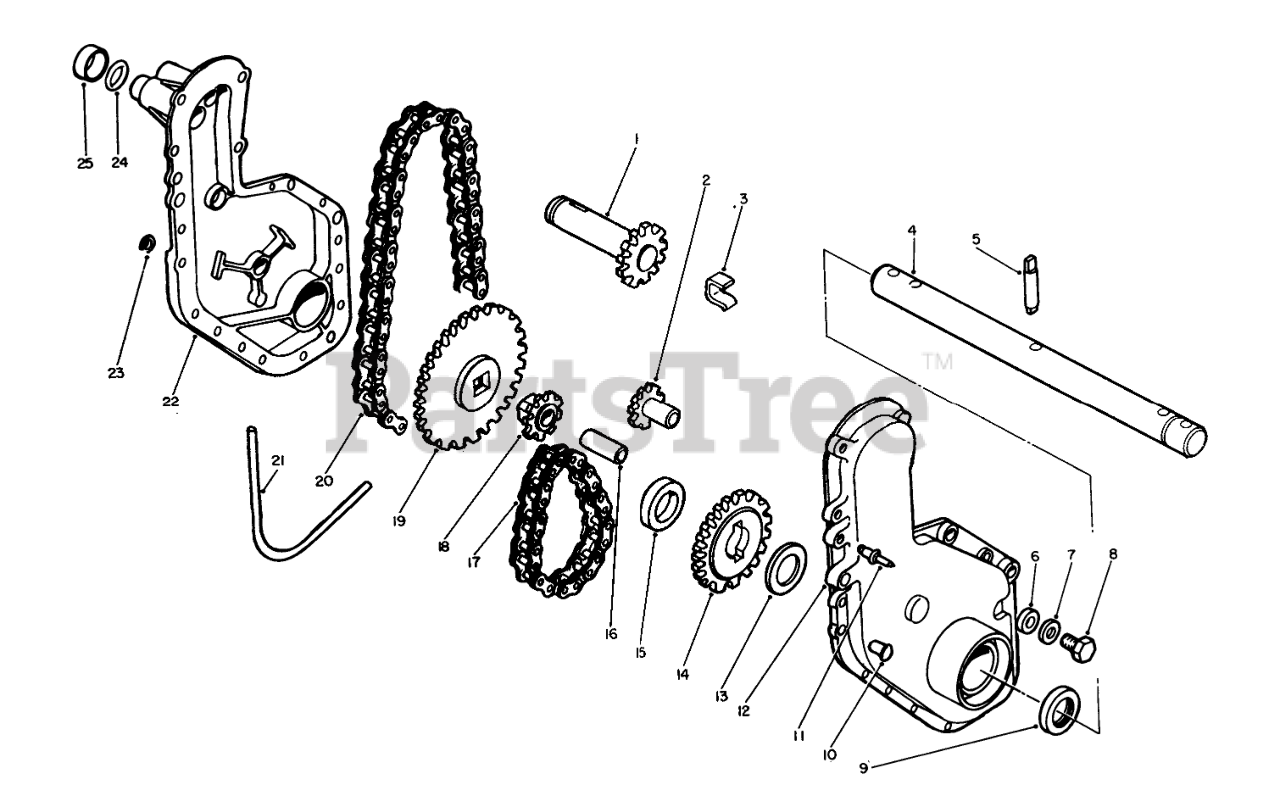

CHAIN CASE ASSEMBLY NO. 48-1250 Parts Diagram

  • Title
1

Toro 47-9270

Input Shaft
(Superseded to 701404)

$

$

Not available

2

Toro 47-8580

Idler Sprocket-9 Tooth

$

$

Not available

3

Toro 47-8540

"U" Clip

$

$

Not available

4

Toro 48-0860

Axle
(Superseded to 701883)

$276.99

$

Usually ships in 3-6 days

0

5

Toro 47-8590

Drive Pin
(Superseded to 701882)

$

$

Not available

6

Toro 47-8760

Nylon Washer
(Superseded to 701402)

$

$

Not available

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

9

Toro 47-8260

Seal
(Superseded to 700123)

$37.99

$

Usually ships in 3-6 days

0

10

Toro 47-8460

Rivet

$

$

Not available

Toro 3251-4

SCREW-SRH

Note: Service Replacement Parts for Item Num 10 & 23

$0.99

$

In Stock, only 2 left!

0

Toro 3251-4

SCREW-SRH

Note: Not illustrated

$0.99

$

In Stock, only 2 left!

0

11

Toro 47-8770

Pop River
(Superseded to 3290-417)

$

$

Not available

12

Toro 47-8510

Chain Case R.H.
(Superseded to 701389)

$

$

Not available

13

Toro 47-8300

Washer
(Superseded to 701012)

$12.99

$

Usually ships in 3-6 days

0

14

Toro 47-8960

Sprocket-27 Tooth
(Superseded to 701881)

$434.99

$

Usually ships in 3-6 days

0

15

Toro 47-9450

Washer
(Superseded to 701885)

$

$

Not available

16

Toro 47-8600

Shaft-Sprocket
(Superseded to 701401)

$

$

Not available

17

Toro 47-8980

#35 Roller Chain
(Superseded to 740539)

$

$

Not available

18

Toro 47-8970

Sprocket-10 Tooth
(Superseded to 701880)

$

$

Not available

19

Toro 47-9490

Sprocket
(Superseded to 740354)

$

$

Not available

20

Toro 47-8610

Chain-Upper
(Superseded to 740335)

$

$

Not available

21

Toro 47-8550

Gasket
(Superseded to 701392)

$

$

Not available

22

Toro 47-9440

Chain Case-L.H. w/Bearing
(Superseded to 740353)

$

$

Not available

23

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

Toro 3255-5

WASHER-LOCK/EXT

Note: Service Replacement Parts for Item Num 10 & 23

$

$

Not available

Toro 3255-5

WASHER-LOCK/EXT

Note: Not illustrated

$

$

Not available

Toro 3217-26

NUT-HEX

Note: Not illustrated

$1.99

$

In Stock, only 2 left!

0

Toro 3217-26

NUT-HEX

Note: Service Replacement Parts for Item Num 10 & 23

$1.99

$

In Stock, only 2 left!

0

24

Toro 47-8560

O-Ring

$

$

Not available

25

Toro 47-8570

Seal Cup

$

$

Not available
