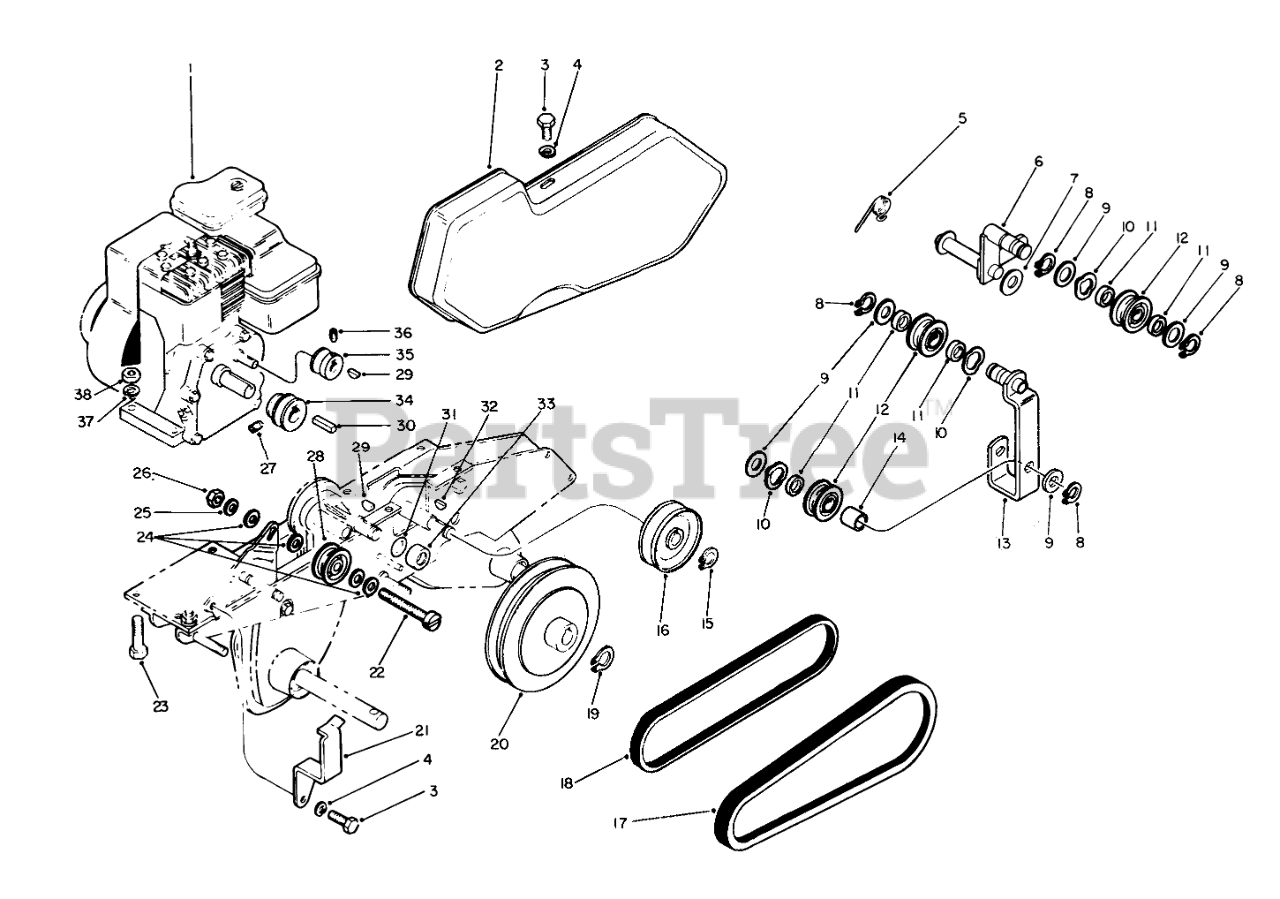

58150 - Toro 18" Tiller (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

18" Tiller

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 47-7700

Engine

$

$

Currently unavailable

2

Toro 47-9060

Belt Guard w/Decal

$

$

Not available

3

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

4

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 48-0180

Spring
(Superseded to 702589)

$47.99

$

Usually ships in 3-6 days

0

6

Toro 48-0500

Rocker
(Superseded to 740448)

$420.99

$

Usually ships in 3-6 days

0

7

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

9

Toro 47-8110

Washer
(Superseded to 700317)

$6.49

$

In Stock, only 1 left!

0

10

Toro 47-8150

Wave Washer
(Superseded to 702545)

$

$

Not available

11

Toro 48-0990

Spacer
(Superseded to 702583)

$

$

Not available

12

Toro 47-9520

Idler Pulley
(Superseded to 740006)

$

$

Not available

13

Toro 48-0430

Idler Arm
(Superseded to 740443)

$

$

Not available

14

Toro 48-1000

Spacer-Idler
(Superseded to 702582)

$

$

Not available

15

Toro 47-9580

Retaining Ring
(Superseded to 701786)

$2.49

$

Usually ships in 3-6 days

0

16

Toro 47-9590

Pulley-Tines
(Superseded to 740357)

$

$

Not available

17

Toro 47-9420

Tine Drive Belt
(Superseded to 702603)

$45.99

$

In Stock, only 1 left!

0

18

Toro 47-9430

Traction Drive Belt
(Superseded to 705361)

$

$

Not available

19

Toro 47-9280

Retaining Ring
(Superseded to 701425)

$

$

Not available

20

Toro 47-9240

Pulley-Traction

$

$

Not available

21

Toro 47-9080

Belt Guide
(Superseded to 701471)

$

$

Not available

22

Toro 47-8910

Machine Screw

$

$

Not available

23

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

26

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

27

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

28

Toro 47-8020

Idler Pulley
(Superseded to 607978)

$27.99

$

In Stock, only 1 left!

0

29

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

30

Toro 21-5070

KEY-SQUARE

$

$

Not available

31

Toro 47-8560

O-Ring

$

$

Not available

32

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

33

Toro 47-8570

Seal Cup

$

$

Not available

34

Toro 47-9070

Engine Pulley
(Superseded to 702596)

$

$

Not available

35

Toro 47-8990

Camshaft Pulley
(Superseded to 701781)

$

$

Not available

36

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0

37

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

38

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0
