58150 - Toro 18" Tiller (SN: 003000001 - 003999999) (1983) CHAIN CASE ASSEMBLY NO. 48-1270 Parts Diagram

18" Tiller

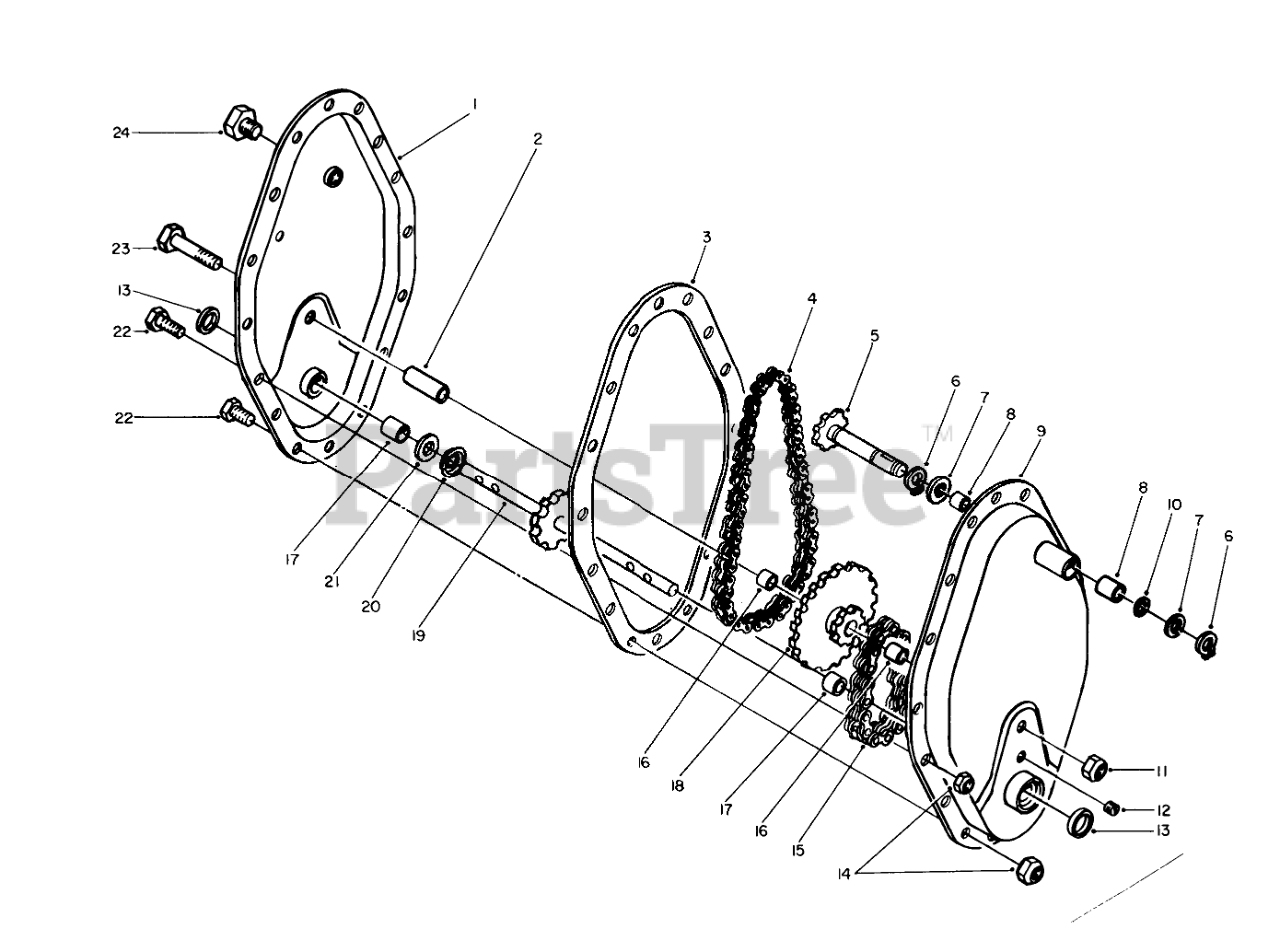

CHAIN CASE ASSEMBLY NO. 48-1270 Parts Diagram

  • Title

1

Toro 48-0350

Chain Case-R.H. w/Bearings

$

$

Not available

2

Toro 47-7960

Idler Sleeve
(Superseded to 701837)

$96.99

$

Usually ships in 3-6 days

0

3

Toro 47-9570

Gasket
(Superseded to 701799)

$

$

Not available

4

Toro 47-9620

Chain-Upper
(Superseded to 740358)

$

$

Not available

5

Toro 47-9660

Input Shaft
(Superseded to 740359)

$

$

Not available

6

Toro 47-9580

Retaining Ring
(Superseded to 701786)

$2.49

$

Usually ships in 3-6 days

0

7

Toro 47-9650

Washer
(Superseded to 701788)

$

$

Not available

8

Toro 252-82

BEARING-NEEDLE

$55.99

$

Usually ships in 3-6 days

0

9

Toro 48-0360

Chain Case-L.H. w/Bearings
(Superseded to 742742)

$

$

Not available

10

Toro 47-9610

Seal
(Superseded to 701776)

$

$

Not available

11

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

12

Toro 285-10

Plug

$

$

Currently unavailable

13

Toro 47-7770

Seal
(Superseded to 700414)

$11.99

$

In Stock, only 3 left!

0

14

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

15

Toro 47-9560

Chain-Lower
(Superseded to 740476)

$

$

Not available

16

Toro 252-90

NEEDLE BRG

$

$

Not available

17

Toro 47-9550

Bearing
(Superseded to 701891)

$

$

Not available

18

Toro 47-9630

Sprocket (Incl. Ref. #16)
(Superseded to 740439)

$

$

Not available

19

Toro 48-1280

Tine Shaft
(Superseded to 742899)

$

$

Not available

20

Toro 47-9640

Spacer Cup
(Superseded to 701787)

$24.99

$

In Stock, only 1 left!

0

21

Toro 47-8780

Shim-Gear
(Superseded to 701845)

$

$

Not available

22

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

23

Toro 47-8900

Capscrew

$

$

Not available

24

Toro 3213-20

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0
