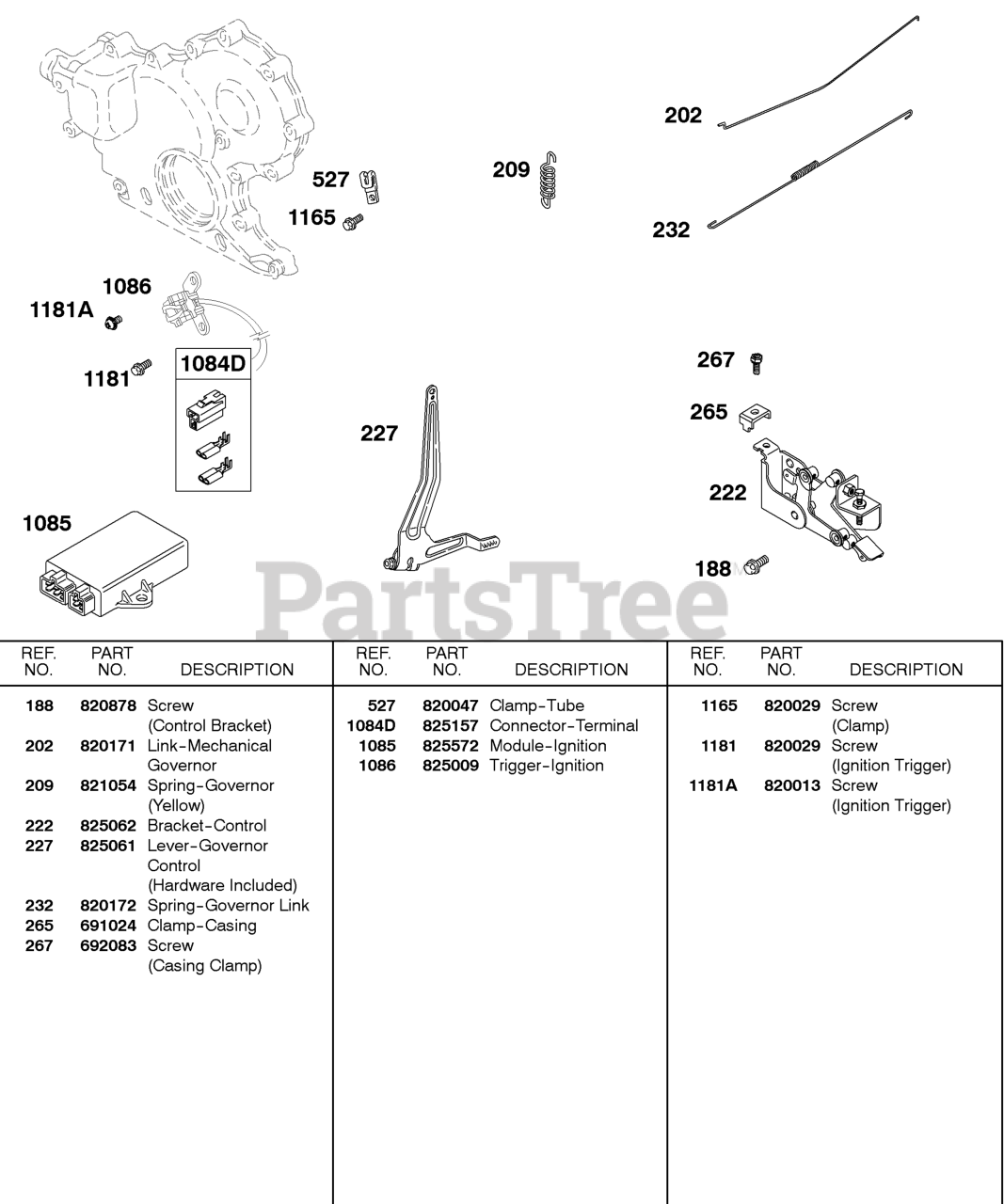

581447-0375-E2 - Briggs & Stratton Horizontal Engine Springs, Control Bracket, Ignition Module Parts Diagram

Horizontal Engine

Springs, Control Bracket, Ignition Module Parts Diagram

  • Title

188

Briggs & Stratton 820878

Screw

Note: (Control Bracket)

$5.49

$

In Stock, only 1 left!

0

202

Briggs & Stratton 820171

Link-Mechanical Governor

$24.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 821054

Spring-Governor

$16.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 825062

Bracket-Control

$358.99

$

In Stock, only 1 left!

0

227

Briggs & Stratton 825061

Lever-Governor Control

Note: (Hardware Included)

$95.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 820172

Spring-Governor Link

$11.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 6

0

267

Briggs & Stratton 692083

Screw

Note: (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

527

Briggs & Stratton 820047

Clamp-Tube

$4.49

$

Usually ships in 2-12 days

0

1084D

Briggs & Stratton 825157

Connector-Terminal

$6.99

$

In Stock, only 1 left!

0

1085

Briggs & Stratton 825572

Module-Ignition

$560.99

$

Usually ships in 2-12 days

0

1086

Briggs & Stratton 825009

Trigger-Ignition

$128.99

$

Usually ships in 2-12 days

0

1165

Briggs & Stratton 820029

Screw

Note: (Clamp)

$3.99

$

Usually ships in 2-12 days

0

1181

Briggs & Stratton 820029

Screw

Note: (Ignition Trigger)

$3.99

$

Usually ships in 2-12 days

0

1181A

Briggs & Stratton 820013

Screw

Note: (Ignition Trigger)

$5.99

$

Usually ships in 2-12 days

0
